NShi 2400W ATX Mining Power Supply Server Chassis

Mining Power Supply for Multi-GPU Rigs

This ATX-format unit delivers up to 2400 W maximum output to support eight graphics cards in mining or compute workloads. Active PFC and a 95 % conversion rate stabilise the rails across 160 V to 265 V AC input. Eighteen copper output lines feed a dense connector set including 20+4-pin, 4+4-pin CPU, eight SATA and sixteen 6+2-pin PCIe plugs. The desktop chassis measures 15 x 14 x 86 cm in black finish.

Sustained Load Behaviour

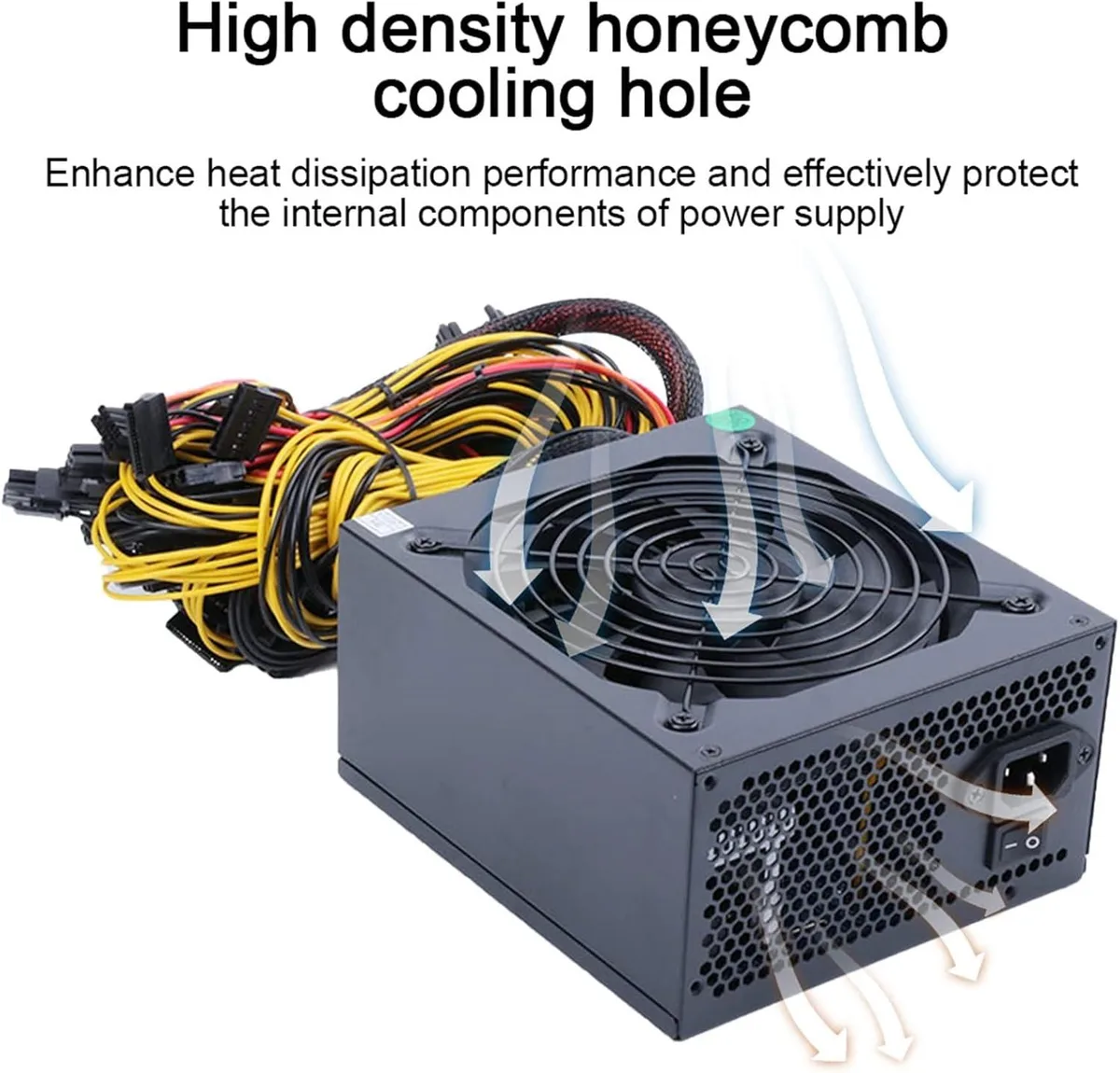

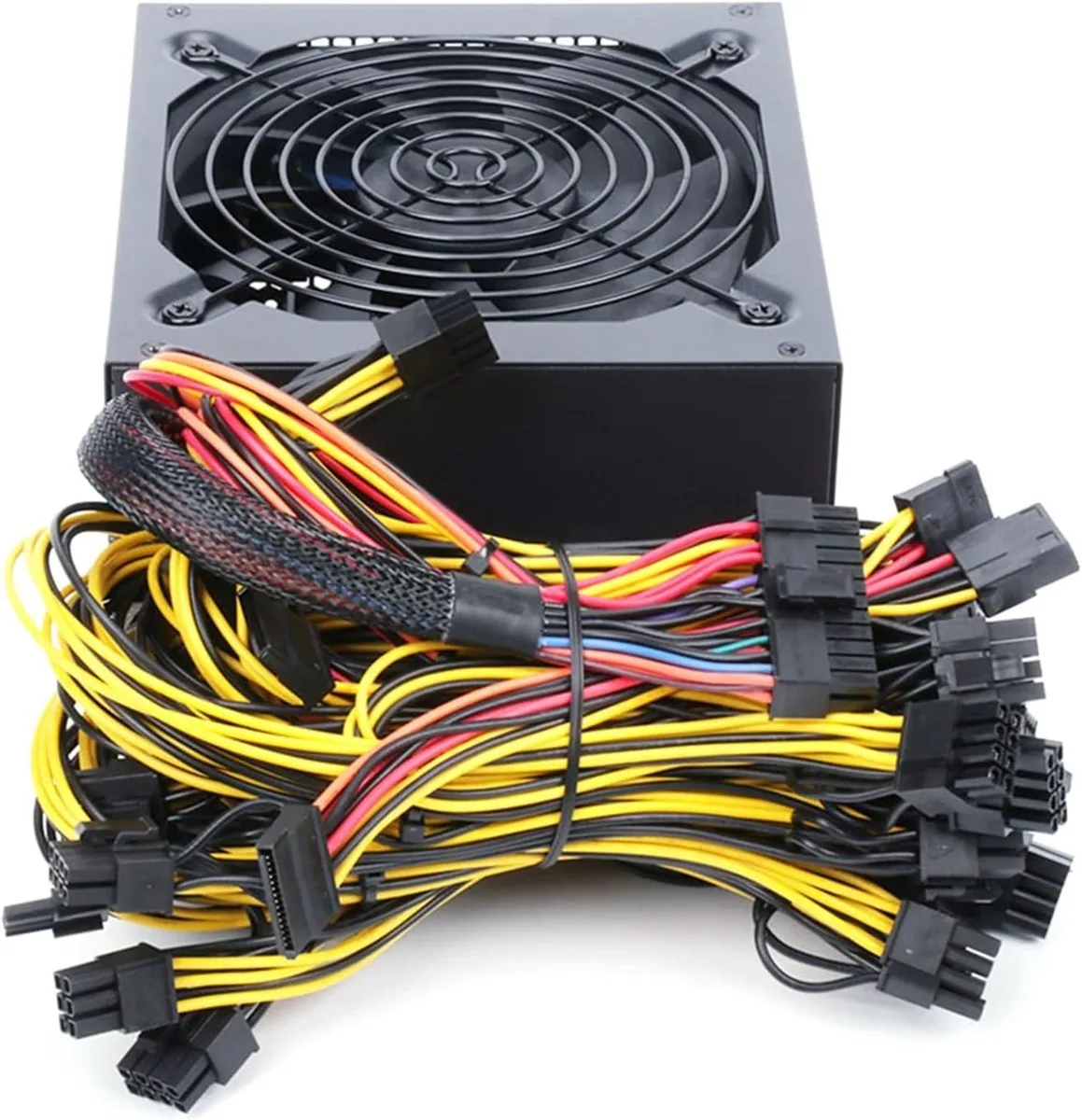

A 140 mm dual ball-bearing fan moves high airflow at low acoustic levels during continuous 24/7 operation. Active power-factor correction keeps efficiency steady when all eight cards draw peak current simultaneously. Multi-rail protection circuits guard against over-voltage, over-current, overload, under-voltage and short-circuit events. The supply maintains rated voltage despite mains fluctuation so hash-rate stability is preserved over long sessions.

Build Quality and Connectivity

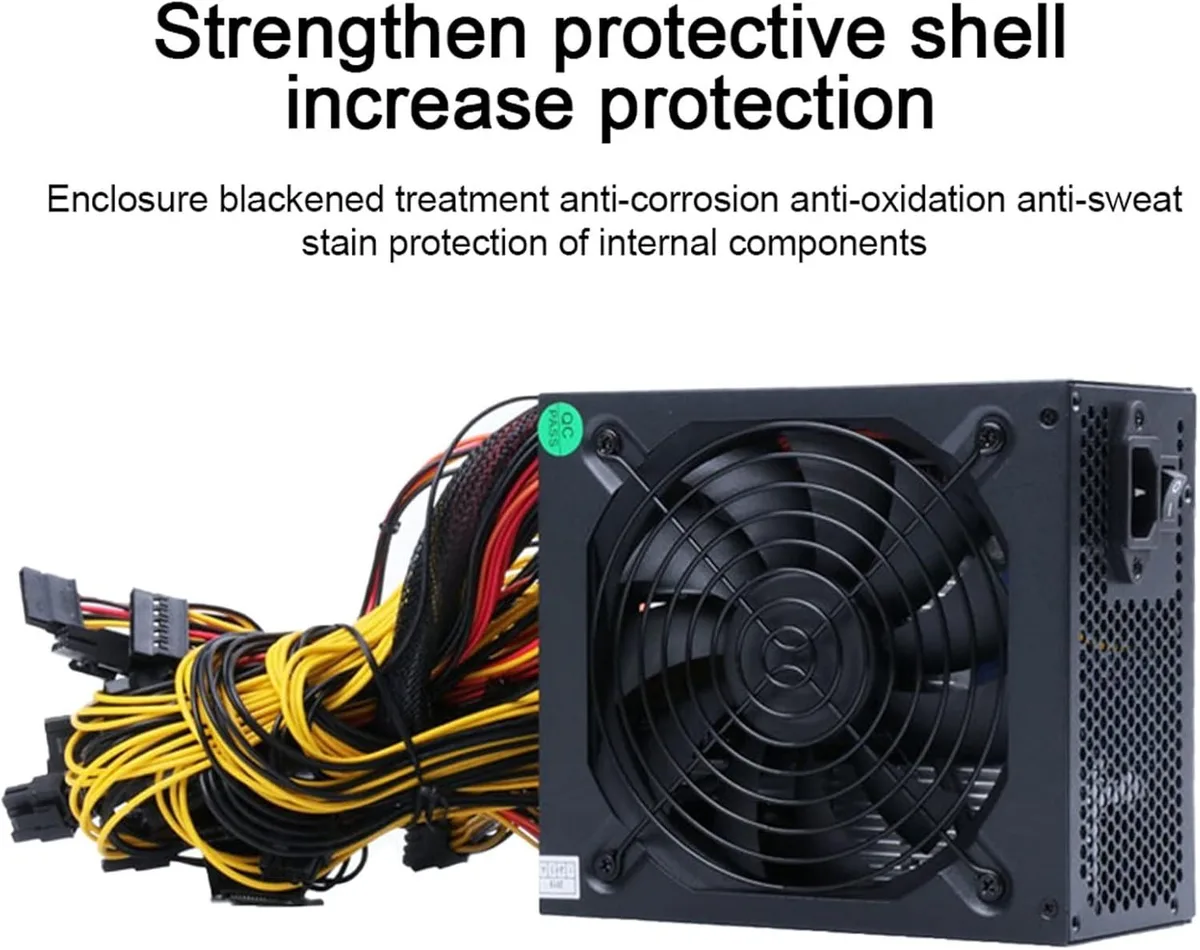

Eighteen copper conductors and EMC shielding reduce electromagnetic interference inside dense multi-GPU enclosures. Sixteen 6+2-pin PCIe connectors eliminate the need for adapters when populating eight dual-power cards. Eight SATA and four large 4-pin peripheral plugs handle risers, SSDs and ancillary drives from the same unit. The compact desktop form-factor fits standard server racks or shelf mounts without proprietary rails.
