Square brown and beige 140 mm fan with round frame, black blades, four-pin connector, four mounting screws included

Noctua

Noctua NF-P14r redux-1500 PWM 140 mm case fan

SKU CH-DWAJ-32MCC MPN NF-P14r redux-1500 PWM

A 140 mm PWM fan delivering 133,7 m³/h airflow at 1500 RPM and 25,8 dB(A)

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCooling Fan
  • Fan Size140x140x25 mm
  • Fan Thickness25mm
  • Bearing TypeSSO
  • High static pressure from 1500 RPM SSO bearing fan
  • 8 dB(A) noise at full speed for quiet operation
  • 12 V PWM control adjusts speed automatically
  • >150000 h MTBF rating indicates long service life
  • 140 mm round frame fits air coolers and radiators

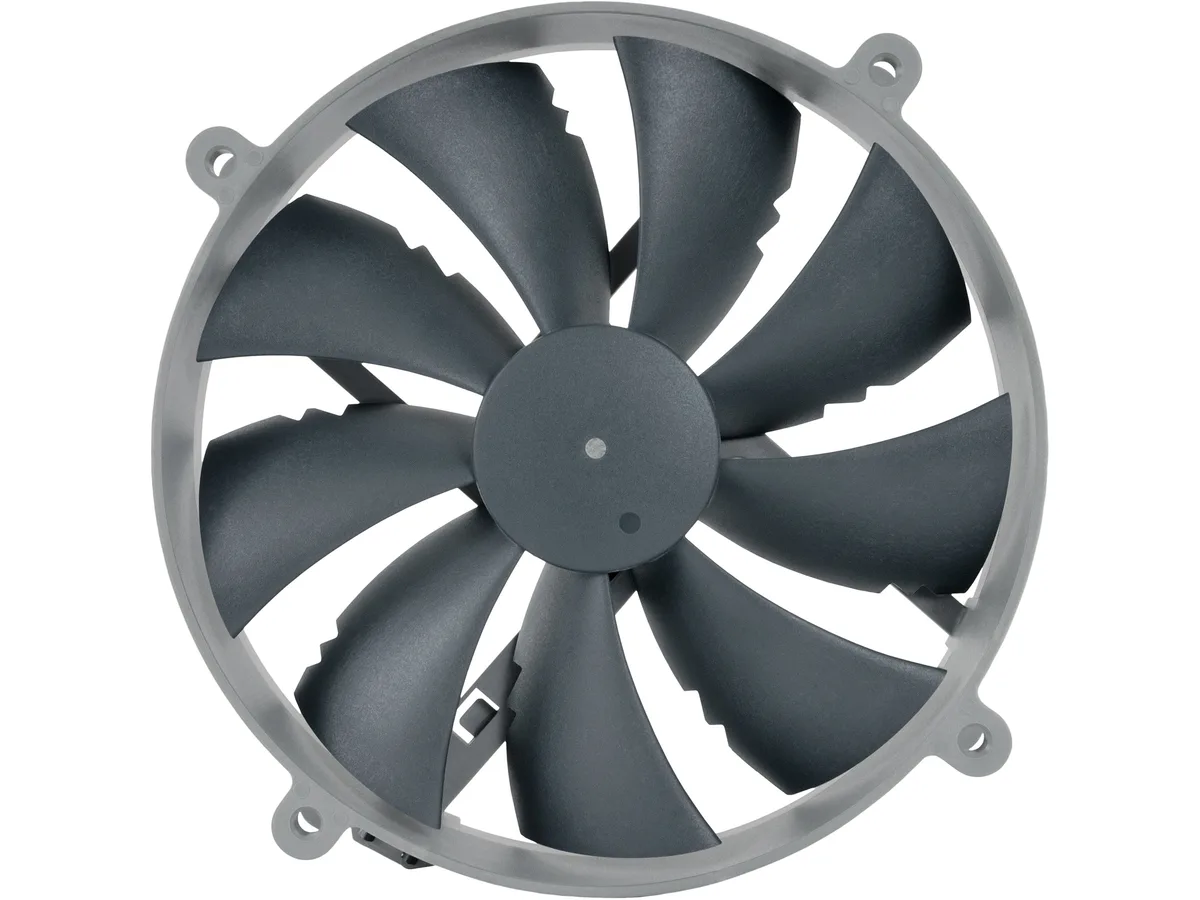

140 mm Round-Frame PWM Case Fan

The Noctua NF-P14r redux-1500 PWM is a 140 mm round-frame fan built for air-based CPU coolers. It runs at up to 1500 RPM via a 4-pin PWM connector for automatic motherboard speed control. The SSO bearing and 12 V design deliver a maximum noise level of 25.8 dB(A). MTBF exceeds 150000 hours.

Suited for Tower Coolers and Radiators

This fan suits builders mounting it on round-frame compatible tower coolers or radiators where static pressure matters. The redux edition keeps the proven NF-P14r impeller at a lower cost. Buyers who need a square-frame fan for direct case mounting should look elsewhere. It also lacks bundled anti-vibration mounts or extension cables.

1500 RPM Maximum Speed

The single specification that decides fit is the 1500 RPM top speed. It sets the upper bound for airflow and static pressure while keeping noise at 25.8 dB(A). If your cooler or radiator requires a higher RPM ceiling, this model will not meet that need.

Highlights

  • High static pressure from 1500 RPM SSO bearing fan
  • 8 dB(A) noise at full speed for quiet operation
  • 12 V PWM control adjusts speed automatically
  • >150000 h MTBF rating indicates long service life
  • 140 mm round frame fits air coolers and radiators

Specifications

BrandNoctua
ModelNF-P14r redux-1500 PWM
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCooling Fan
Fan Size140x140x25 mm
Fan Thickness25mm
Bearing TypeSSO
RPM1500 RPM
Air Flow133,7 m³/h
Noise Level25,8 dB(A)

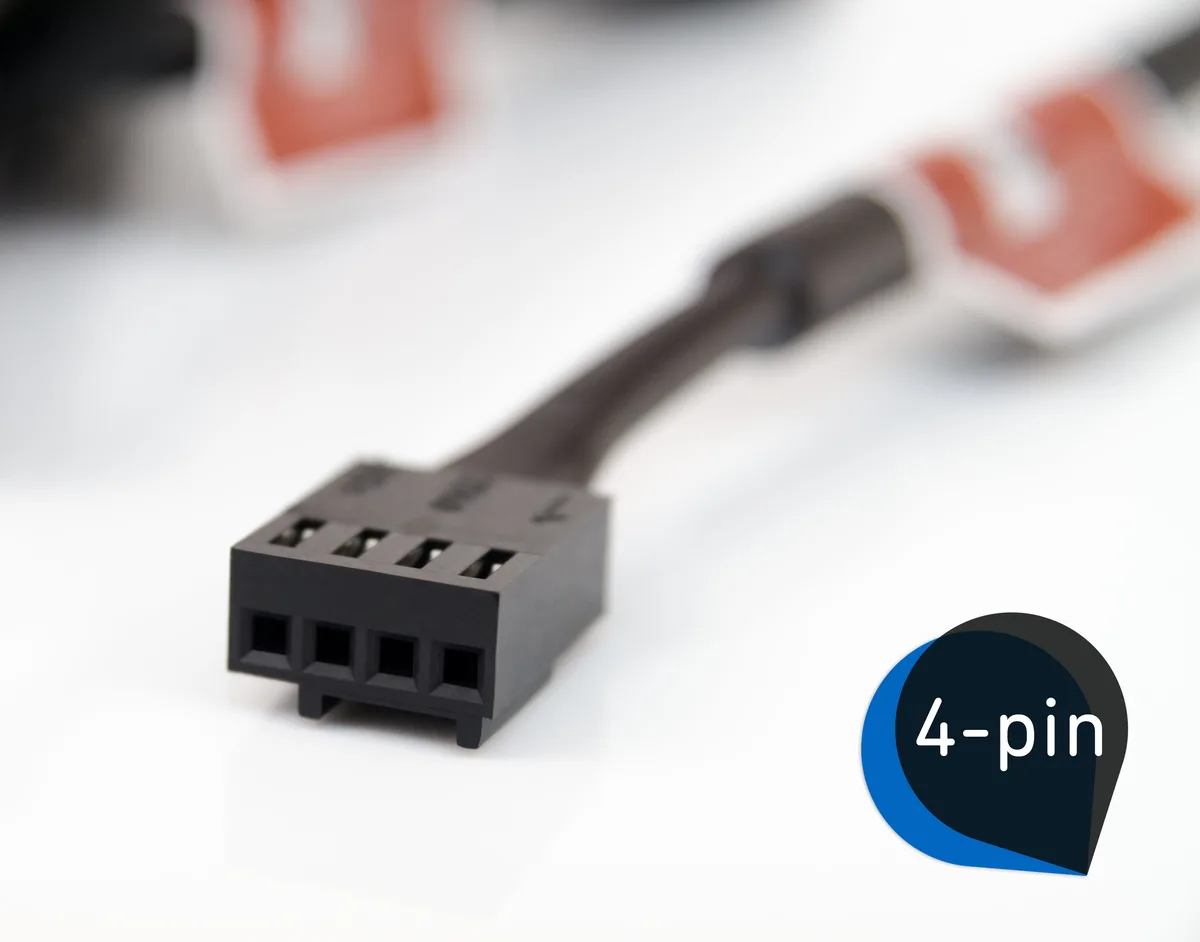

Power Connector4 Pin
FeaturesMax. Input Power: 2,4 W
Max. Input Current: 0,2 A
Voltage: 12 V
MTBF: > 150.000 h
Scope of Delivery:
Fan
4 Fan Screws
Shipping weight0.26 kg
Package size198 × 193 × 33 mm
