Aqua duplex fibre patch cable with LC connectors on both ends, 2m length

No Sew

No Sew LC to LC OM3 Duplex Multimode Fibre Optic Cable 2m Aqua

SKU CH-PKQ8-0PKHS

Connects LC duplex equipment over OM3 multimode fibre for 10, 40 and 100G Ethernet up to 300m with .3dB insertion loss and a 7.5mm bend radius

  • TypeFiber Optic
  • Supports 10G, 40G and 100G Ethernet with OM3 50/125 fibre
  • Low 0.3 dB insertion loss keeps signal quality up to 300 m at 10Gbps

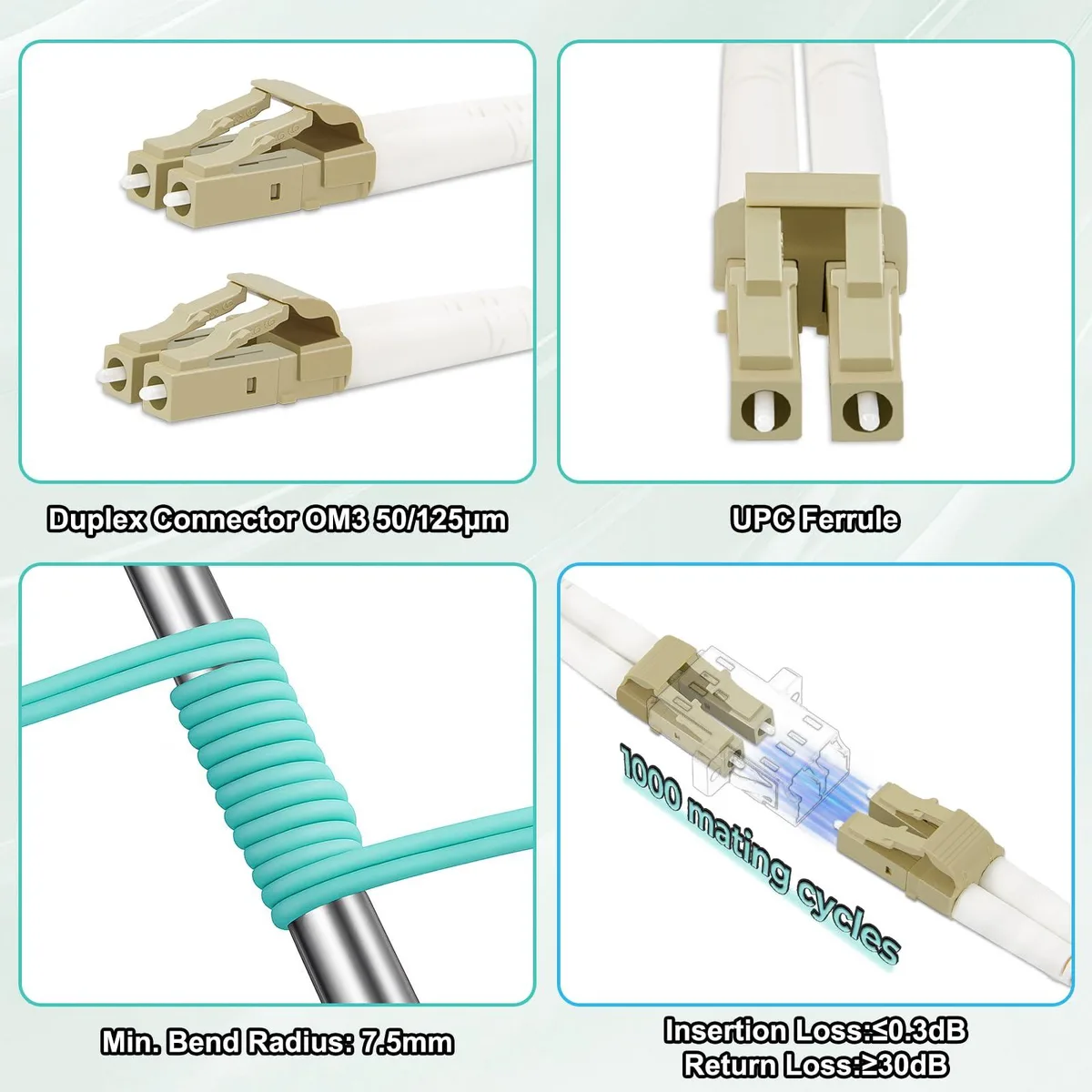

  • Zirconia ceramic ferrules and 7.5 mm bend radius suit tight, high-density routing
  • LSZH jacket reduces smoke and toxic emissions for safe indoor use
  • Meets OM3, TIA/EIA 568-C.3 and RoHS for broad transceiver compatibility

LC duplex OM3 multimode fibre patch cable

This two-metre duplex cable uses OM3 50/125µm multimode fibre with LC UPC connectors on both ends. It is built for high-density indoor networking in data centres, enterprise LANs and telecom rooms. The aqua LSZH jacket meets low-smoke zero-halogen requirements for safe indoor routing.

Capacity and headroom for 10G 40G 100G Ethernet

The cable supports 10G 40G and 100G Ethernet links with insertion loss of .3dB and high return loss. At 10Gbps it maintains performance up to 300 metres. The 2.0mm outside diameter and 7.5mm bend radius allow dense routing without signal degradation. It is not suited for single-mode OS2 infrastructure or runs beyond the OM3 distance envelope.

Replaces older OM1 OM2 links and copper uplinks

Upgrading from legacy multimode grades or copper uplinks gains the headroom for 40G and 100G speeds over the same LC footprint. The jump is worth it when transceivers and switch ports support OM3 bandwidth and the link length stays within the 300-metre 10G design limit. It does not replace single-mode OS2 cabling for long-haul campus or metro connections.

Highlights

  • Supports 10G, 40G and 100G Ethernet with OM3 50/125 fibre
  • Low 0.3 dB insertion loss keeps signal quality up to 300 m at 10Gbps
  • Zirconia ceramic ferrules and 7.5 mm bend radius suit tight, high-density routing
  • LSZH jacket reduces smoke and toxic emissions for safe indoor use
  • Meets OM3, TIA/EIA 568-C.3 and RoHS for broad transceiver compatibility

Specifications

BrandJOVXIAZ
TypeFiber Optic

Questions about this item

Will this OM3 LC duplex cable work with my existing 10G SFP+ transceivers?

Yes, the cable is fully compatible with most SFP and SFP+ transceivers and supports 10G Ethernet over OM3 multimode fiber up to 300 metres.

How can I verify the link is performing correctly after installation?

Expect insertion loss of 0.3dB or better per connector; a light source and power meter should confirm loss within that figure for a healthy link.

Does the 2m aqua patch cord ship with any extra accessories or protective caps?

The cable arrives ready to use with LC UPC duplex connectors on both ends; no additional caps, cleaning tools or mounting hardware are included.
