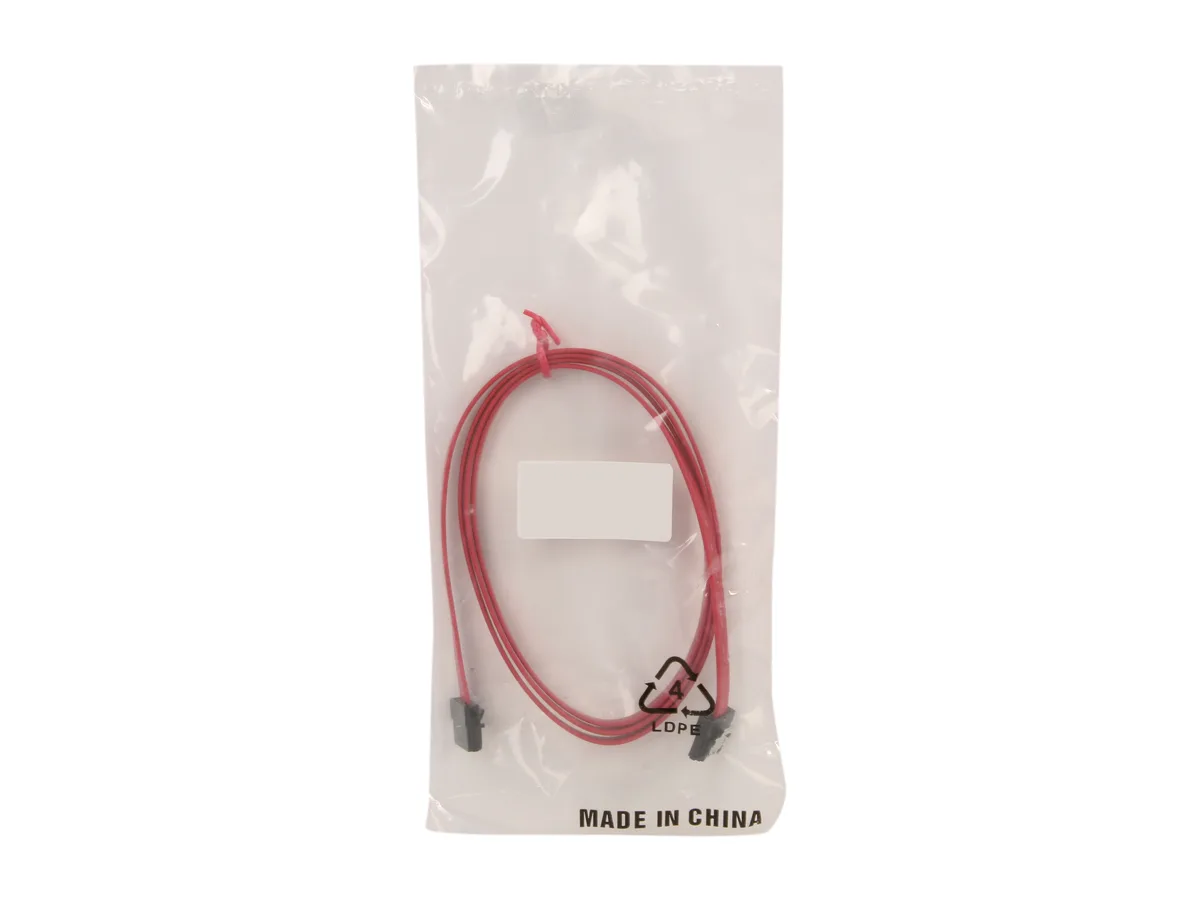

Red SATA cable, one right-angle and one straight connector, 1 metre

Nippon Labs

Nippon Labs SATA-1-MINI SATA cable 1m right-angle straight 26 AWG

SKU CH-CQ0R-4RJRY MPN SATA-1-MINI

A shielded 26 AWG SATA cable with one right-angle and one straight locking connector for tight builds

  • TypeSATA II
  • ColorRed
  • Length3.28 ft.
  • Cable Length3.28 ft. (1m)
  • Connector Number2
  • Terminal GenderMale to Male
  • Right-angle plus straight ends simplify tight routing
  • Shielded 26 AWG conductors support reliable SATA II data transfer
  • Narrow red cable improves airflow inside the chassis
  • Locking latch on each male connector prevents accidental disconnects
  • Hot-swap capability allows drive changes without powering down

Compact 1 m SATA II link

The Nippon Labs SATA-1-MINI is a 3.28 ft red cable that connects a high-speed Serial ATA device to a Serial ATA controller. It uses two shielded 26 AWG conductors with a right-angle plug on one end and a straight plug on the other. Both male connectors feature a locking latch for secure retention. The narrow profile simplifies cable routing and improves airflow inside the chassis.

Right-angle to straight orientation

The single specification that decides fit is the mixed connector geometry: one right-angle and one straight SATA plug. This combination suits drives mounted in tight corners where a straight plug would foul adjacent components, while the controller side keeps a conventional straight entry. Hot-swap capability is supported and the assembly is RoHS compliant.

Builders routing in confined drive bays

This cable suits builders who need a short, flexible link between a drive in a cramped bay and a motherboard or controller port. It is not for installations that require two straight connectors, two right-angle connectors, or a longer reach than 1 metre. Buyers needing a different connector pairing or extra length should look at other cable configurations.

Highlights

  • Right-angle plus straight ends simplify tight routing
  • Shielded 26 AWG conductors support reliable SATA II data transfer
  • Narrow red cable improves airflow inside the chassis
  • Locking latch on each male connector prevents accidental disconnects
  • Hot-swap capability allows drive changes without powering down

Specifications

BrandNippon Labs
ModelSATA-1-MINI
TypeSATA II
ColorRed
Length3.28 ft.
Cable Length3.28 ft. (1m)
Connector Number2
Terminal GenderMale to Male
Features2 shielded 26 AWG SATA cable- one right angle to one straight connector
Hot-swap capability
RoHS Compliant
high-speed Serial ATA device to a Serial ATA controller
Narrow cables design:
1) simplifies cable routing and installation
2) improves air flow within CPU (no more big ribbons blocking air movement
Shipping weight0.02 kg
Package size141 × 88 × 36 mm

Questions about this item

What does the SATA II rating mean when the cable is installed in a system?

The cable supports the SATA II interface, which caps data transfer at 3 Gbit/s between a Serial ATA device and its controller.

Which interface standard does this cable use and what speed does it limit in practice?

It uses the SATA II standard, limiting the link to 3 Gbit/s even if the drive or controller is capable of a faster SATA revision.

What physical space and connector orientation does this cable need to fit?

One end has a right-angle plug and the other a straight plug, both male, so the drive and controller must accept standard 7-pin SATA connectors with that orientation.
