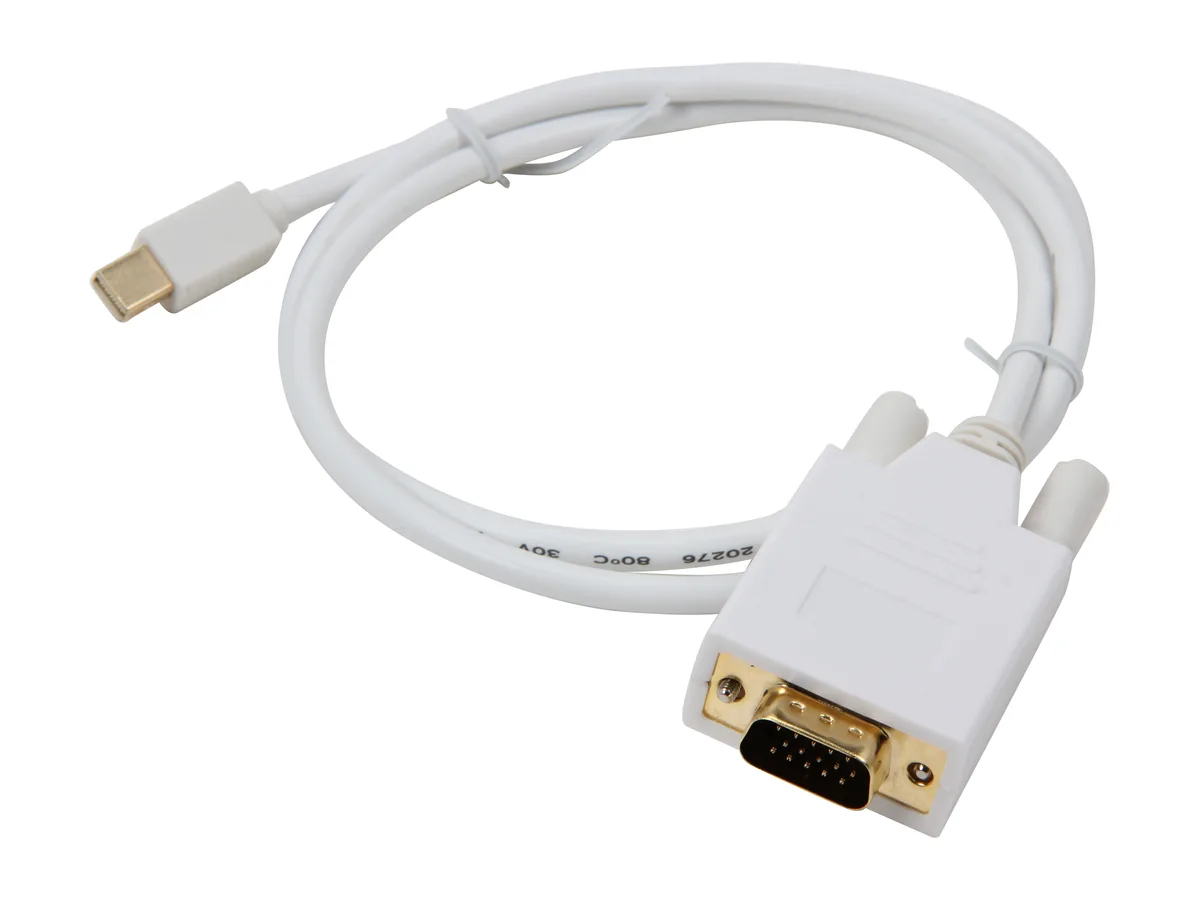

White 3 ft cable with Mini DisplayPort and VGA male connectors

Nippon Labs

Nippon Labs MINIDP-VGA-3 3 ft mini displayport cable

SKU CH-R4D6-1325J MPN MINIDP-VGA-3

A 3 ft Mini DisplayPort to VGA adapter cable supporting up to 1920x1200 resolution with 5.4Gbps bandwidth

  • Cable Length3 ft.
  • Connector Number2
  • Connector DetailMini DisplayPort to VGA
  • Terminal GenderMale to Male
  • FeaturesMini displayport 1.1a compliant receiver offering 5.4Gbps ba
  • Connect legacy VGA monitors via Mini DisplayPort 1.1a compliant 5.4Gbps link
  • Achieve 1920x1200 reduced blanking or 1080p resolution through integrated 162 MHz triple 10-bit DAC
  • Eliminate signal interference with foil-and-braid shielding plus gold-plated corrosion-resistant connectors
  • Draw minimal power with 15mW standby mode powered directly from the Mini DisplayPort source
  • Plug in instantly with male-to-male connectors requiring no external adapter or driver installation

Connection and compatibility

This Mini DisplayPort 1.1a cable connects a Mini DisplayPort source directly to a VGA display. It suits users with laptops or graphics cards that only offer Mini DisplayPort output and monitors or projectors that accept VGA input. The male-to-male design needs no separate adapter. It draws power from the source port so no external supply is required.

Resolution headroom and bandwidth

The integrated triple 10-bit, 162 MHz DAC converts digital signals to analog VGA output. It supports up to 1920x1200 reduced blanking or 1080p at 5.4 Gbps bandwidth. Higher resolutions or refresh rates exceed the cable's specified capability. The 3 ft length suits desktop or short-range setups.

Power draw and shielding

Standby consumption is 15 mW when no sink is detected. Gold-plated connectors and bare copper conductors resist corrosion and maintain signal integrity. Foil-and-braid shielding reduces electromagnetic interference during normal operation. The white jacket covers a standard round cable.

Highlights

  • Connect legacy VGA monitors via Mini DisplayPort 1.1a compliant 5.4Gbps link
  • Achieve 1920x1200 reduced blanking or 1080p resolution through integrated 162 MHz triple 10-bit DAC
  • Eliminate signal interference with foil-and-braid shielding plus gold-plated corrosion-resistant connectors
  • Draw minimal power with 15mW standby mode powered directly from the Mini DisplayPort source
  • Plug in instantly with male-to-male connectors requiring no external adapter or driver installation

Specifications

BrandNippon Labs
ModelMINIDP-VGA-3
Cable Length3 ft.
Connector Number2
Connector DetailMini DisplayPort to VGA
Terminal GenderMale to Male
FeaturesMini displayport 1.1a compliant receiver offering 5.4Gbps bandwidth
Integrated triple 10-bit, 162 MHz video DAC for analog VGA signal output
Supports up to 1080p, 1920x1200 reduced blanking video resolution
Powered from Mini displayport source
Low power operation - Active 400mW, standby mode 15mW
Low power standby mode operation initiated based on sink detection status
PC and Mac compatible
Compatible with Apple Thunderbolt port
Compatible with Apple mini DisplayPort products
Mini DisplayPort cable offers a cost-effective solution for connecting a Mini DisplayPort-enabled laptop (Mac
Shipping weight0.05 kg
Package size157 × 138 × 38 mm

Questions about this item

Will the Mini DisplayPort 1.1a compliant receiver with 5.4Gbps bandwidth work with my older laptop's Mini DisplayPort output?

Yes, the cable's Mini DisplayPort 1.1a compliant receiver with 5.4Gbps bandwidth is designed to connect directly to a Mini DisplayPort video output on a video card or Mac computer, drawing power from the source port.

How can I confirm the cable is delivering the supported 1920x1200 reduced blanking resolution after connecting it?

Check your display settings to verify the output is set to 1920x1200 reduced blanking; the integrated triple 10-bit, 162 MHz video DAC handles the digital-to-analog conversion for the VGA signal.

Does the box include any adapters or do I need to buy a separate power supply for the 15mW standby mode?

The cable has gold-plated Mini DisplayPort male and VGA male connectors on a single 3 ft assembly with foil-and-braid shielding; it is powered by the Mini DisplayPort source so no separate power supply is needed.
