Nippon Labs Cat6a Stranded UTP Bulk Cable 28 AWG 1000 ft Gray

Custom patch-cable wire

This Cat6a stranded bulk cable comes on a 1000 ft reel for installers who build their own patch leads. The 28 AWG conductors are 60% thinner than standard 24 AWG Cat6a wire, so the cable routes through tight conduit and dense panels with less bulk. It is rated for 10 Gigabit Ethernet and 500 MHz bandwidth, meeting the needs of high-speed structured wiring. The grey CM-rated jacket suits indoor horizontal runs.

Standards-compliant construction

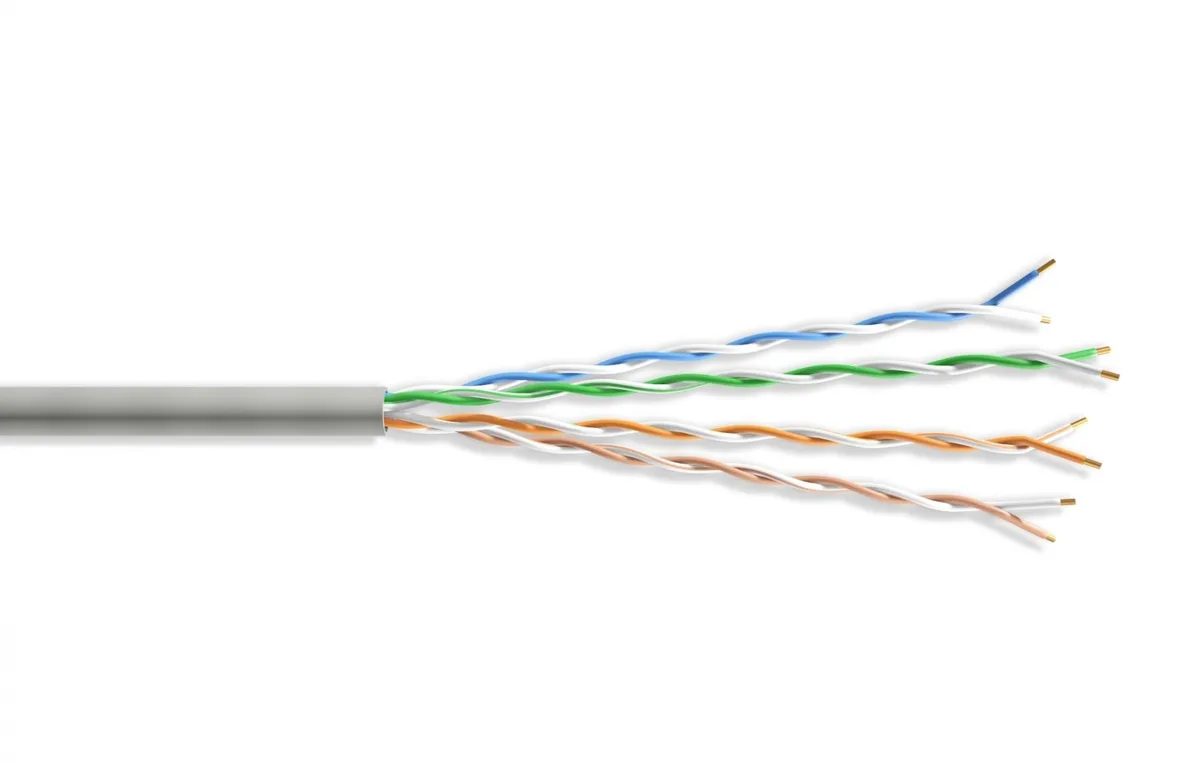

Each reel uses 100% bare copper stranded conductors with four twisted pairs and a spline core separator. The cable is ETL verified to ANSI/TIA-568.2-D and carries a UL-listed PVC jacket, so it passes commercial inspection requirements. All components are RoHS compliant, removing restricted substances from the supply chain. These certifications mean the finished patch cables will test to Cat6a performance without rework.

Termination notes

Stranded 28 AWG wire demands RJ45 plugs designed for small-gauge stranded conductors; standard 24 AWG plugs will not seat reliably. A ratchet crimper with the correct die set prevents intermittent contacts that cause link flaps. The thin insulation strips cleanly with adjustable strippers, but nicked strands are common if the blade depth is not set precisely. Builders who need solid-core cable for permanent in-wall links should choose a different product.
