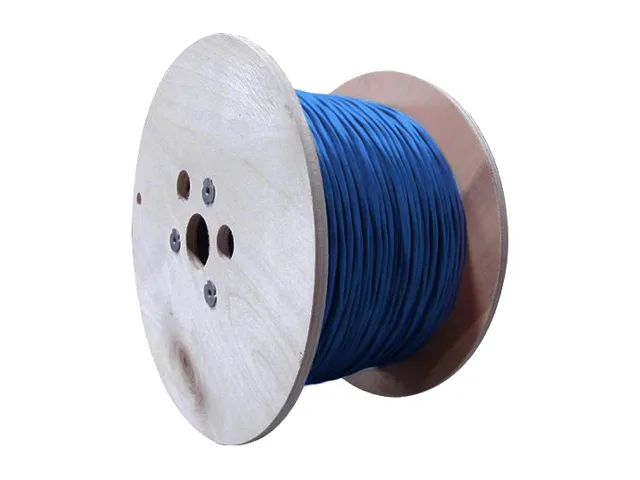

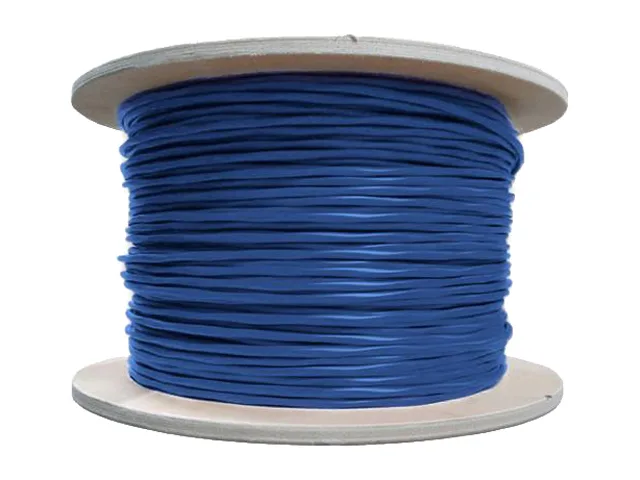

Coiled bulk Ethernet cable, blue PVC jacket, 500 ft

Nippon Labs

Nippon Labs 80C8SS-7006RB Cat8.1 network ethernet cable 500 ft blue S/FTP 23AWG CMR

SKU CH-CCC6-GFS9S MPN 80C8SS-7006RB

500 ft Cat8.1 S/FTP bulk cable rated CMR, 23 AWG solid copper with overall tinned copper braid, supports 25 Gbps up to 30 m and 40 Gbps capability

  • TypeNetwork Ethernet Cables
  • Cat8.1
  • Length500 ft.
  • ColorBlue
  • ShieldedShielded Twisted Pair (S/FTP) Cable
  • Wire Gauge23 AWG
  • 40 Gbps bandwidth for 25 G data centres
  • 2 GHz bandwidth supports 30 m high-speed runs
  • S/FTP shielding with tin-copper braid blocks EMI
  • CMR riser jacket meets ANSI/TIA-568C-2.D
  • 500 ft bulk reel with footage markings

Nippon Labs Cat8.1 bulk cable 500 ft

This Nippon Labs Cat8.1 bulk Ethernet cable is a 500-foot spool of shielded twisted pair wiring designed for professional installers and data-centre technicians who terminate their own RJ45 ends. The S/FTP construction with overall tin-copper braid and CMR riser-rated jacket suits indoor vertical runs and short outdoor segments up to 30 metres.

Suits 25G and 40G short-run deployments

Installers needing 25G or 40G links over distances no longer than 30 metres will find the 23 AWG solid bare copper conductors and 2000 MHz bandwidth appropriate. Buyers who require longer channel lengths, pre-terminated patch cords, or plenum-rated CMP jacketing should look at alternative cable types.

Category 8.1 rating and 30-metre limit define use

The single specification that decides suitability is the Cat8.1 classification combined with the 30-metre maximum channel distance for 25G and 40G operation; exceeding this length will not meet the rated performance.

Highlights

  • 40 Gbps bandwidth for 25 G data centres
  • 2 GHz bandwidth supports 30 m high-speed runs
  • S/FTP shielding with tin-copper braid blocks EMI
  • CMR riser jacket meets ANSI/TIA-568C-2.D
  • 500 ft bulk reel with footage markings

Specifications

BrandNippon Labs
Model80C8SS-7006RB
TypeNetwork Ethernet Cables
Cat8.1
Length500 ft.
ColorBlue
ShieldedShielded Twisted Pair (S/FTP) Cable
Wire Gauge23 AWG
FeaturesCategory-8.1 Solid Cable
Category 8.1 cabling is fully backward compatible with RJ45
Shielded Twisted Pair (S/FTP) Cable
Overall Tin-Copper Braiding
CMR Riser Rated
High-Performance Data Communications Cable
Suitable for 25G High Speed Data Center Applications
Up to 30 Meter Distance Runs
4-Pair - Easily Identified Color-Striped Pairs
23 AWG Solid Bare Copper Conductors
Excellent Attenuation and Crosstalk Characteristics
Exceeds ANSI/TIA 568 B.2-1, ISO/IEC
ISO/IEC 11801
Extra Long cat8 cables
Applications:
-25/40GBASE-T Ethernet
-10Gb/s Networking
-Rackcenter Topologies Supported:
-T
Shipping weight12.47 kg
Package size381 × 381 × 203 mm

Questions about this item

What conduit size fits a 23 AWG S/FTP cable with overall tin-copper braiding?

The 23 AWG solid bare copper conductors and overall braid create a bulkier profile than unshielded cable, so allow extra clearance when pulling through conduit or raceway.

How do I terminate the individually shielded pairs and overall braid on an RJ45 plug?

Fold the overall tin-copper braid back over the jacket, then terminate each foil-shielded pair into the shielded RJ45 contacts; skipping the braid fold is the common error.

When should I replace a CMR-rated Cat8.1 run that supports 25 G and 40 G speeds?

Replace if the jacket shows cracks, the braid is corroded, or certification testing shows insertion loss exceeding the 2000 MHz channel limit for 30 metre runs.
