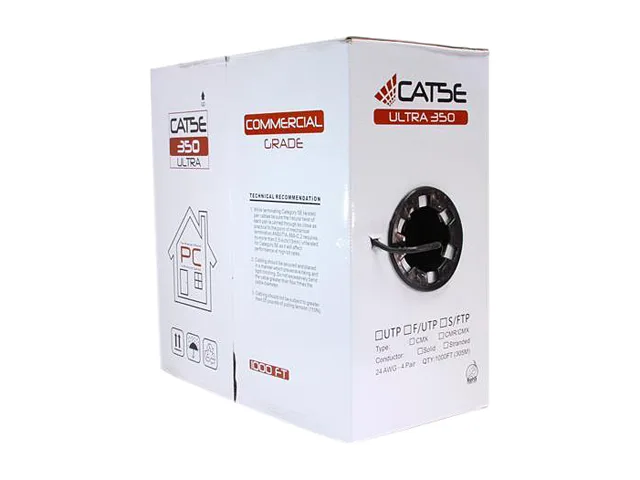

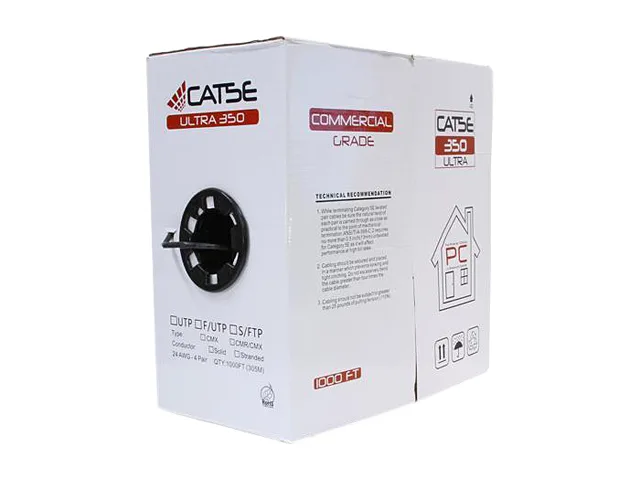

Black outdoor Cat5E bulk cable on a 1000 ft pull box

Nippon Labs

Nippon Labs 80C5CMX-414BK network ethernet cable Cat5E 1000 ft 24 AWG UTP black

SKU CH-M2FG-6PDE8 MPN 80C5CMX-414BK

Outdoor-rated Cat5E bulk cable with UV-resistant CMX jacket, solid copper conductors and 1000 ft pull box for gigabit Ethernet runs

  • TypeNetwork Ethernet Cables
  • Cat5E
  • Length1000 ft.
  • ColorBlack
  • ShieldedUTP
  • Wire Gauge24 AWG
  • Outdoor-ready with UV-resistant CMX jacket
  • Gigabit and Fast Ethernet support up to 350 MHz
  • Solid 24 AWG bare copper for low attenuation
  • Colour-striped pairs simplify identification during installation
  • UL/cUL listed and ETL verified for safety compliance

Outdoor-rated Cat5E cable

Nippon Labs 80C5CMX-414BK is a 1000 ft bulk Ethernet cable built for outdoor installations. The UV-resistant CMX jacket protects the four twisted pairs from sunlight exposure. Solid bare copper conductors of 24 AWG gauge carry data for Gigabit Ethernet and Fast Ethernet links. Installers pull it directly from the supplied box.

Practical limits of Cat5E UTP

The unshielded twisted-pair construction supports frequencies up to 350 MHz and data rates including 155 Mbps TP-PMD and CDDI. Maximum segment length follows the 100 metre channel rule for Gigabit Ethernet. Without shielding the cable is more susceptible to electromagnetic interference in noisy environments. It does not meet requirements for 10 Gigabit Ethernet over copper.

Solid copper conductor decides fit

The 24 AWG solid bare copper conductors provide the attenuation and crosstalk performance specified for Cat5E. Stranded patch cords will not deliver the same horizontal-cable performance. Buyers who need shielded cable for high-interference sites or category 6 and above bandwidth should select a different product.

Highlights

  • Outdoor-ready with UV-resistant CMX jacket
  • Gigabit and Fast Ethernet support up to 350 MHz
  • Solid 24 AWG bare copper for low attenuation
  • Colour-striped pairs simplify identification during installation
  • UL/cUL listed and ETL verified for safety compliance

Specifications

BrandNippon Labs
Model80C5CMX-414BK
TypeNetwork Ethernet Cables
Cat5E
Length1000 ft.
ColorBlack
ShieldedUTP
Wire Gauge24 AWG
FeaturesHigh-Performance Data Communications Cable
This Cable Is CAT5E Outdoor CABLE UV Rated for Outdoor Use
Suitable for 350MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet and 155Mbps TP-PMD/CDDI
Designed for Outdoor Installations UV Jacket (CMX) (UV)
Category-5E Unshielded Twisted Pair (UTP) Cable
4-Pair Easily Identified Color Striped Pairs
24 AWG Solid Bare Copper Conductors
Excellent Attenuation and Crosstalk Characteristics
Exceeds EIA/TIA 568 C.2
UL/cUL Listed
ETL Verified
RoHS Compliant
Sequential Length Markings on Jacket
Supplied in a 1000' Pull Box with large pa
Shipping weight10.43 kg
Package size381 × 381 × 254 mm

Questions about this item

Should I choose the 1000 ft pull box or a shorter length for a 350 MHz outdoor run?

The 1000 ft pull box is the only length offered for this CMX-rated outdoor cable; it supports 350 MHz applications and sequential markings help you pull exactly what you need.

What does the 350 MHz rating mean when the cable is installed in a real gigabit network?

The 350 MHz bandwidth exceeds the 100 MHz required for Gigabit Ethernet, so the cable will carry 1 Gbps links with margin for attenuation and crosstalk over the full 1000 ft.

How does the CMX UV-rated jacket affect the cable's outdoor installation limits?

The CMX jacket is UL listed for direct outdoor exposure, resisting UV degradation so the cable can be run outside without conduit while maintaining 24 AWG solid copper performance.
