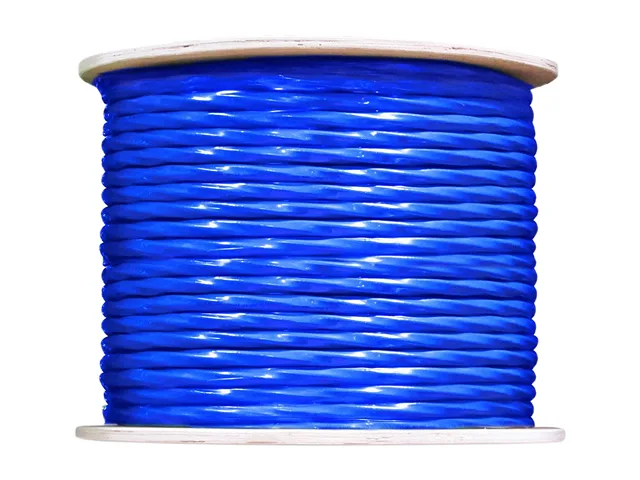

Nippon Labs 60RG6-C5-500 network ethernet cable Cat5E RG6 500 ft Blue

Nippon Labs Cat5E RG6 combo cable

This 500 ft composite cable bundles two Cat5E UTP runs and two RG6 quad-shield coaxial lines in a single blue jacket. Installers running structured wiring for data and video can pull both services at once, reducing labour on residential or light-commercial jobs. The Cat5E pairs use 24 AWG solid bare copper and meet TIA 568-C.2, while the RG6 conductors are 18 AWG copper-clad steel with dual foil and braid shields. CMR and UL listings allow in-wall and riser routing.

Sustained signal integrity

Solid conductors on the data pairs keep attenuation stable over long pulls, and the quad-shield coax maintains consistent shielding effectiveness across the full 500 ft length. Both cable types are rated for continuous operation at their respective frequencies without the performance dips seen in thinner or single-shield alternatives. The TIA and SCTE compliance marks confirm the construction meets industry baseline loss and crosstalk limits for extended runs.

Thermals noise and power

As a passive copper assembly the cable generates no heat, draws no power and produces no acoustic noise during operation. The PVC jacket and polyethylene insulation remain stable at normal building temperatures, and the CMR rating ensures flame-retardant behaviour in vertical shafts. No active cooling or external supply is required, making the bundle suitable for concealed installations where maintenance access is limited.
