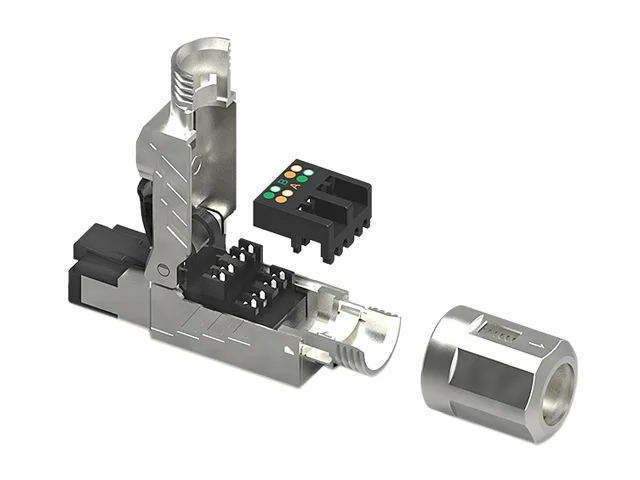

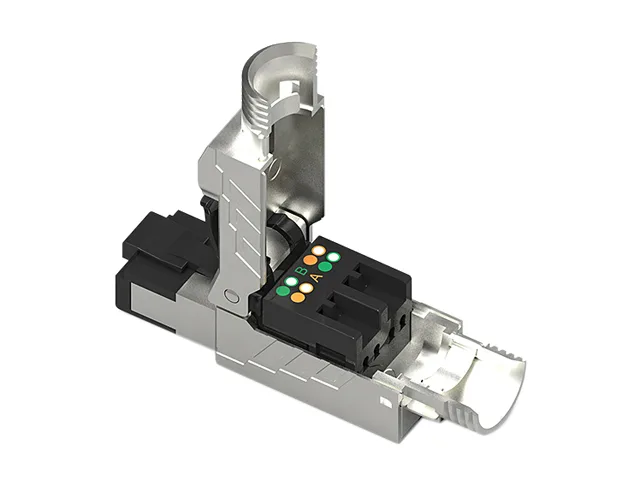

Small rectangular shielded RJ45 plug, gold contacts, tool-less termination design

Nippon Labs

Nippon Labs 60CAT8-PG Cat.8 RJ45 Tool Less Shielded Plug adapter

SKU CH-PDG2-BT867 MPN 60CAT8-PG

Tool-less shielded RJ45 plug for Cat.8 cable, terminates 22-26AWG solid or stranded wire without tools and supports 40Gbps with PoE++ capability

  • TypeCat.8 RJ45 Tool Less Shielded Plug
  • SpecificationsCat. 8 RJ45 Tool Less Termination Plug for 40G: Cat.8 RJ45 c
  • FeaturesApplicable wire 22 - 26AWG Cable jacket diameter 6.5mm - 8.5
  • Tool-less termination saves installation time
  • Shielded housing blocks EMI for reliable signals
  • Gold-plated contacts ensure durable PoE++ connections
  • Accepts 22-26AWG solid or stranded conductors
  • Certified UL/RoHS for safety compliance

Tool-Less Cat.8 RJ45 Plug

This Nippon Labs 60CAT8-PG is a shielded RJ45 connector rated for Cat.8 performance. It terminates 22 to 26AWG solid or stranded conductors without a crimp tool. The gold-plated contacts and fully shielded housing protect against EMI and corrosion. It suits installers and network engineers building or repairing 40Gbps links.

Termination Requirements

The plug accepts cable jackets from 6.5mm to 8.5mm in diameter. A cable stripper is recommended to expose the inner conductors before insertion. The wire alignment insert arranges the eight conductors for efficient termination. No specialised crimper is needed, freeing toolkit space and reducing on-site equipment.

Sustained Load Behaviour

The connector supports continuous 40Gbps throughput, four times the bandwidth of Cat.6A. Its shielded construction maintains signal integrity under prolonged high-frequency transmission. UL and RoHS compliance confirms material stability during extended PoE++ power delivery. The gold plating resists oxidation that would degrade contact resistance over time.

Highlights

  • Tool-less termination saves installation time
  • Shielded housing blocks EMI for reliable signals
  • Gold-plated contacts ensure durable PoE++ connections
  • Accepts 22-26AWG solid or stranded conductors
  • Certified UL/RoHS for safety compliance

Specifications

BrandNippon Labs
Model60CAT8-PG
TypeCat.8 RJ45 Tool Less Shielded Plug
SpecificationsCat. 8 RJ45 Tool Less Termination Plug for 40G:
Cat.8 RJ45 connectors are designed to work specifically with Cat.8 Cable, the RJ45 contacts are gold plated, wire alignment insert provides an efficient termination without any need of tools, we do recommend to use a cable striper to expose the inner conductors. The hosing of the connectors is fully shielded to avoid corrosion and to protect from EMI (ElectroMagnetic interference).
FeaturesApplicable wire 22 - 26AWG
Cable jacket diameter 6.5mm - 8.5mm
Compatible with solid or stranded wire
No tool is required to terminate
Supports 40Gbps (4 times faster than Cat.6A)
Excellent performance with POE++ applications
UL/RoHS
Shipping weight0.23 kg
Package size127 × 76 × 25 mm

Questions about this item

Does the shielded housing prevent EMI issues during continuous 40Gbps throughput?

The fully shielded housing protects against electromagnetic interference and corrosion during sustained high-speed operation.

How much heat or noise does the connector generate under all-day PoE++ loads?

As a passive component it produces no noise and negligible heat even with continuous PoE++ power delivery.

What cable specifications must I already have for this plug to terminate correctly?

You need Cat.8 cable with 22 to 26AWG conductors and a 6.5mm to 8.5mm jacket diameter, solid or stranded.
