Nippon Labs

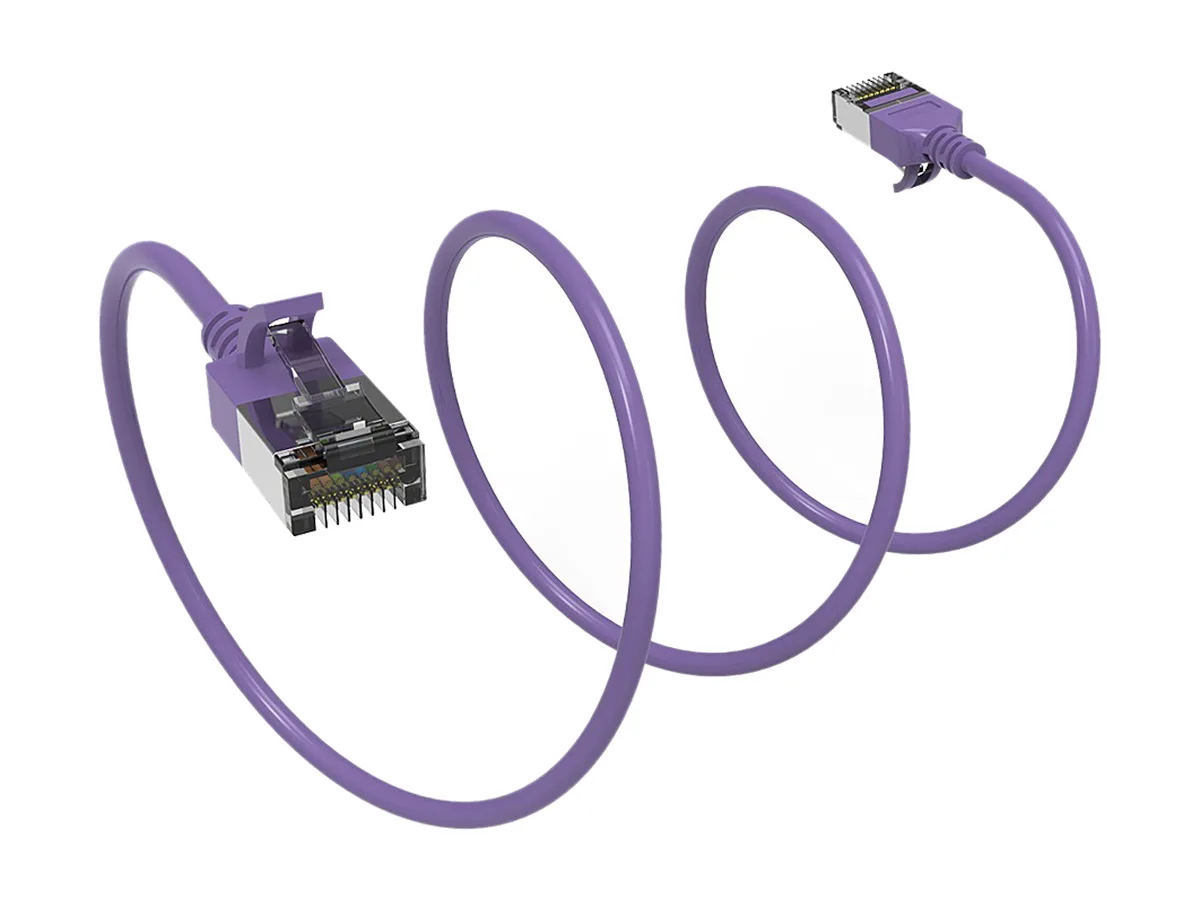

Nippon Labs 60CAT8-5-30PU network ethernet cable 5 ft purple Cat8 30AWG U/FTP 2000 MHz 40 Gbps
A 5 ft purple Cat8 patch cable rated for 2000 MHz and 40 Gbps with 30 AWG stranded copper, foil-shielded pairs, gold-plated RJ45 connectors and a slim CM PVC jacket
- TypeNetwork Ethernet Cables
- Cat8
- Connector ARJ45
- Connector BRJ45
- Length5 ft.
- ColorPurple
- 40 Gbps maximum data rate for high-speed networking
- 2000 MHz bandwidth supports 25GBASE-T and 40GBASE-T
- 30 AWG stranded copper conductors enable slim, flexible routing
- 50 µm gold-plated RJ45 contacts resist corrosion
- U/FTP foil shielding on each pair reduces interference
Purpose and fit
This Cat8 patch cord targets installers who need 40 Gbps throughput in a 5 ft purple run. The 30 AWG stranded copper and U/FTP foil shielding suit emerging 25GBASE-T and 40GBASE-T links while remaining fully backward compatible with existing Cat5e through Cat7 infrastructure.
Build and connectors
Each of the four pairs is individually foil wrapped beneath an overall CM PVC jacket, keeping the cable slim for tight routing. RJ45 plugs carry 50 micron gold contacts, a metal shielded shell, molded strain relief and a snagless soft flex tab that eases repeated insertion and removal.
Standard limits
The 2000 MHz rating supports up to 40 Gbps over the specified length, but the Cat8 standard itself restricts maximum channel distance to 30 metres for 25GBASE-T and 40GBASE-T operation. Installers planning longer runs must verify total link budget before deployment.
Highlights
- 40 Gbps maximum data rate for high-speed networking
- 2000 MHz bandwidth supports 25GBASE-T and 40GBASE-T
- 30 AWG stranded copper conductors enable slim, flexible routing
- 50 µm gold-plated RJ45 contacts resist corrosion
- U/FTP foil shielding on each pair reduces interference
Specifications
| Brand | Nippon Labs |
|---|---|
| Model | 60CAT8-5-30PU |
| Type | Network Ethernet Cables |
| Cat | 8 |
| Connector A | RJ45 |
| Connector B | RJ45 |
| Length | 5 ft. |
| Color | Purple |
| Features | Operates at a frequency of 2 GHz (2000 MHz), which enables higher bandwidth and requires shielding and is regarded as a new option for emerging 25gbase-t and 40gbase-t networks. Fully backward compatible with all the previous (cat5, cat5e, cat6, cat6a and cat7) RJ45 cabling and equipment. UL rated CAT 8 cable is designed to support 25gbase-t and 40gbase-t applications, It is suitable for small or middle Enterprise LANs, especially for data center switch-to-server interconnections. Perfect for servers, TV, TV Box, laptop, PC, printer, networking switch, routers, ADSL, adapters, hubs, |
| Shipping weight | 0.09 kg |
| Package size | 178 × 165 × 25 mm |
Questions about this item
What bandwidth does the Cat8 2000 MHz rating actually cap in practice?
The cable is rated for up to 2000 MHz and supports data rates up to 40 Gbps, suitable for 25GBASE-T and 40GBASE-T networks.
What physical space does the 30AWG slim cable and RJ45 connectors need to fit?
The 30AWG stranded copper conductors give a smaller diameter than standard cables, while the RJ45 plugs with molded strain relief and snagless tabs fit standard ports.
How is the T568B wired cable installed, and what step do people often miss?
Plug each RJ45 connector into a compatible port until the soft flex tab clicks; the gold-plated contacts and metal-shielded housing ensure a secure, shielded connection.
