Red Cat8 Ethernet cable, 1 ft, RJ45 plugs, braided shield, PVC jacket

Nippon Labs

Nippon Labs 60CAT8-1-26RD Cat8 network ethernet cable 1 ft Red 26AWG S/FTP 2000MHz 40Gbps

SKU CH-8W2Q-ENKT7 MPN 60CAT8-1-26RD

A 1 ft Cat8 patch cable rated for 40 Gbps at 2000 MHz with S/FTP shielding and gold-plated RJ45 connectors

  • TypeNetwork Ethernet Cables
  • Cat8
  • Connector ARJ45
  • Connector BRJ45
  • Length1 ft.
  • ColorRed
  • 40 Gbps data rate supports 25G and 40GBASE-T networks
  • 2000 MHz bandwidth enables high-frequency signal transmission
  • S/FTP shielding with foil and braid reduces external interference
  • 26 AWG stranded pure copper conductors lower resistance for stable connections
  • 50 µm gold-plated RJ45 contacts resist corrosion for reliable contact

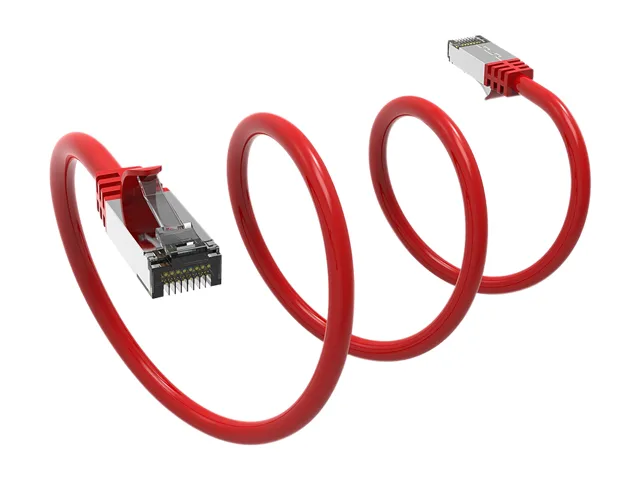

1 ft Cat8 patch cable for 40 Gbps links

This 1 ft Cat8 patch cable is built for 40 Gbps Ethernet over copper using RJ45 connectors. The 26 AWG stranded pure copper conductors and S/FTP shielding support 2 GHz bandwidth for emerging 25GBASE-T and 40GBASE-T networks. It suits installers who need a short, high-frequency link between a switch, router, server or workstation in a rack or wall plate. The red PVC jacket provides quick visual identification in dense cable runs.

Sustained 2 GHz operation with full shielding

Each of the four twisted pairs is wrapped in aluminum foil and the overall bundle is covered by a braided shield, suppressing alien crosstalk and external noise during continuous high-frequency transmission. Gold-plated contacts rated at 50 µm resist oxidation that would otherwise degrade signal integrity over time. Molded strain relief and a snagless boot protect the connector geometry when the cable is routed through tight pathways or repositioned repeatedly. The construction meets TIA/EIA requirements verified by UL and ETL and is RoHS compliant.

1 ft length fixes the reach before purchase

At exactly 1 ft the cable only bridges equipment that sits side by side or shares a single rack unit. Buyers who need longer runs between rooms, floors or cabinets cannot use this length and must select a different cable. The fixed distance is the single specification that decides whether the part fits the physical topology of the installation.

Highlights

  • 40 Gbps data rate supports 25G and 40GBASE-T networks
  • 2000 MHz bandwidth enables high-frequency signal transmission
  • S/FTP shielding with foil and braid reduces external interference
  • 26 AWG stranded pure copper conductors lower resistance for stable connections
  • 50 µm gold-plated RJ45 contacts resist corrosion for reliable contact

Specifications

BrandNippon Labs
Model60CAT8-1-26RD
TypeNetwork Ethernet Cables
Cat8
Connector ARJ45
Connector BRJ45
Length1 ft.
ColorRed
ShieldedYes
Wire Gauge26 AWG
FeaturesOperates at a frequency of 2 GHz (2000 MHz), which enables higher bandwidth and requires shielding and is regarded as a new option for emerging 25gbase-t and 40gbase-t networks.
Fully backward compatible with all the previous (cat5, cat5e, cat6, cat6a and cat7) RJ45 cabling and equipment.
UL rated CAT 8 cable is designed to support 25gbase-t and 40gbase-t applications, It is suitable for small or middle Enterprise LANs, especially for data center switch-to-server interconnections.
Ideal for any device with an RJ45 port, including networking switches, IP Cam, routers, Nintendo switch,
Shipping weight0.06 kg
Package size152 × 127 × 25 mm

Questions about this item

Does the 2000 MHz bandwidth make the cable run hot during all-day use?

No, the cable is passive copper with no active components, so it generates no heat and consumes no power regardless of the 2 GHz rating.

What devices must I already have to use this 1 ft Cat8 patch cord?

Two pieces of equipment with standard RJ45 ports — such as a router, switch, PC, modem or gaming console — are all that is required.

Will this 26 AWG S/FTP cable work with my older Cat6 wall jacks and switch?

Yes, it is fully backward compatible with Cat5e, Cat6, Cat6a and Cat7 infrastructure, so existing jacks and switches work without changes.
