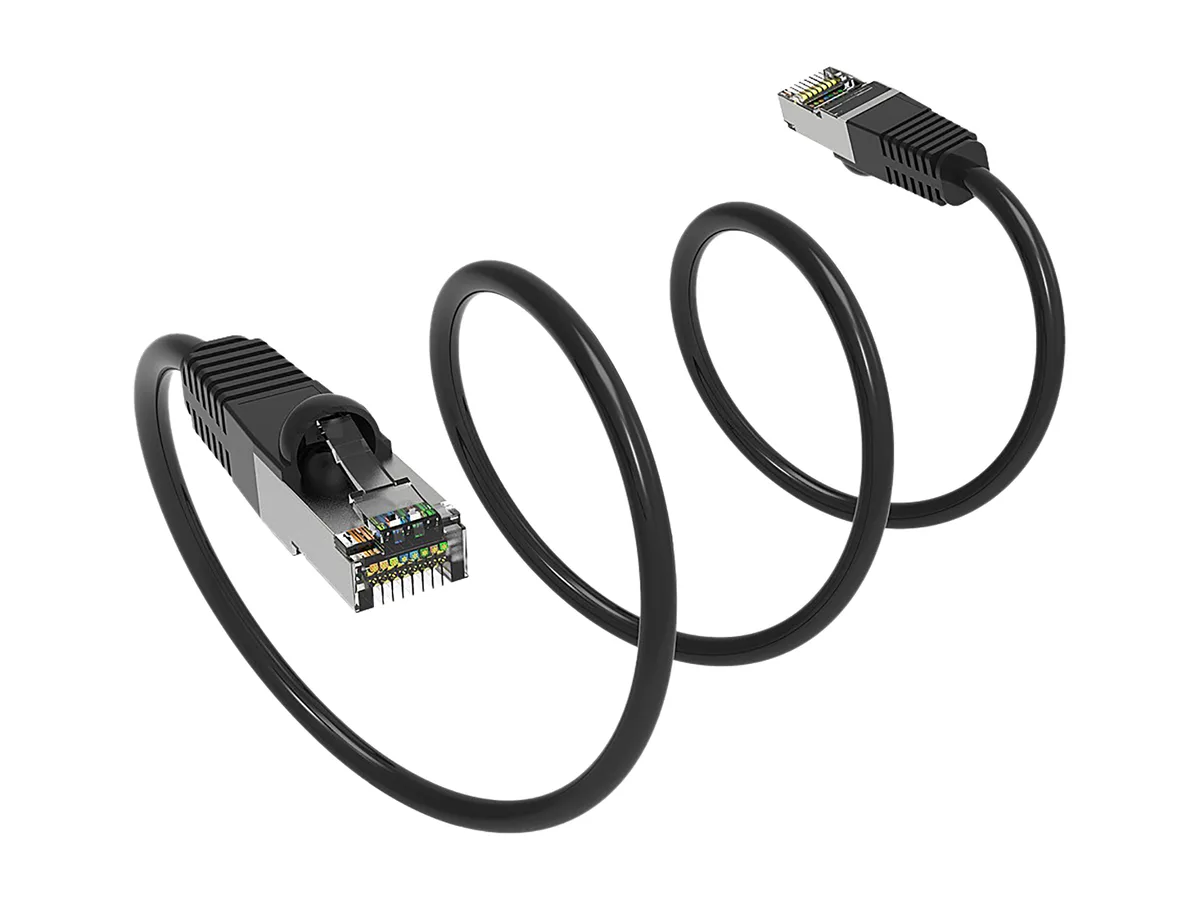

Black Cat7 Ethernet cable, 50 ft, shielded RJ45 connectors, PVC jacket

Nippon Labs

Nippon Labs 60CAT7-50BK Cat7 network ethernet cable 50 ft

SKU CH-SF0Q-0M8VV MPN 60CAT7-50BK

Shielded Cat7 patch cable with 600 MHz bandwidth, 26 AWG pure copper conductors and gold-plated RJ45 connectors, 50 ft

  • TypeNetwork Ethernet Cables
  • Cat7
  • Connector ARJ45
  • Connector BRJ45
  • Length50 ft.
  • ColorBlack
  • Supports 600 MHz bandwidth for high-speed data transfer
  • Double-shielded SSTP construction reduces crosstalk and system noise

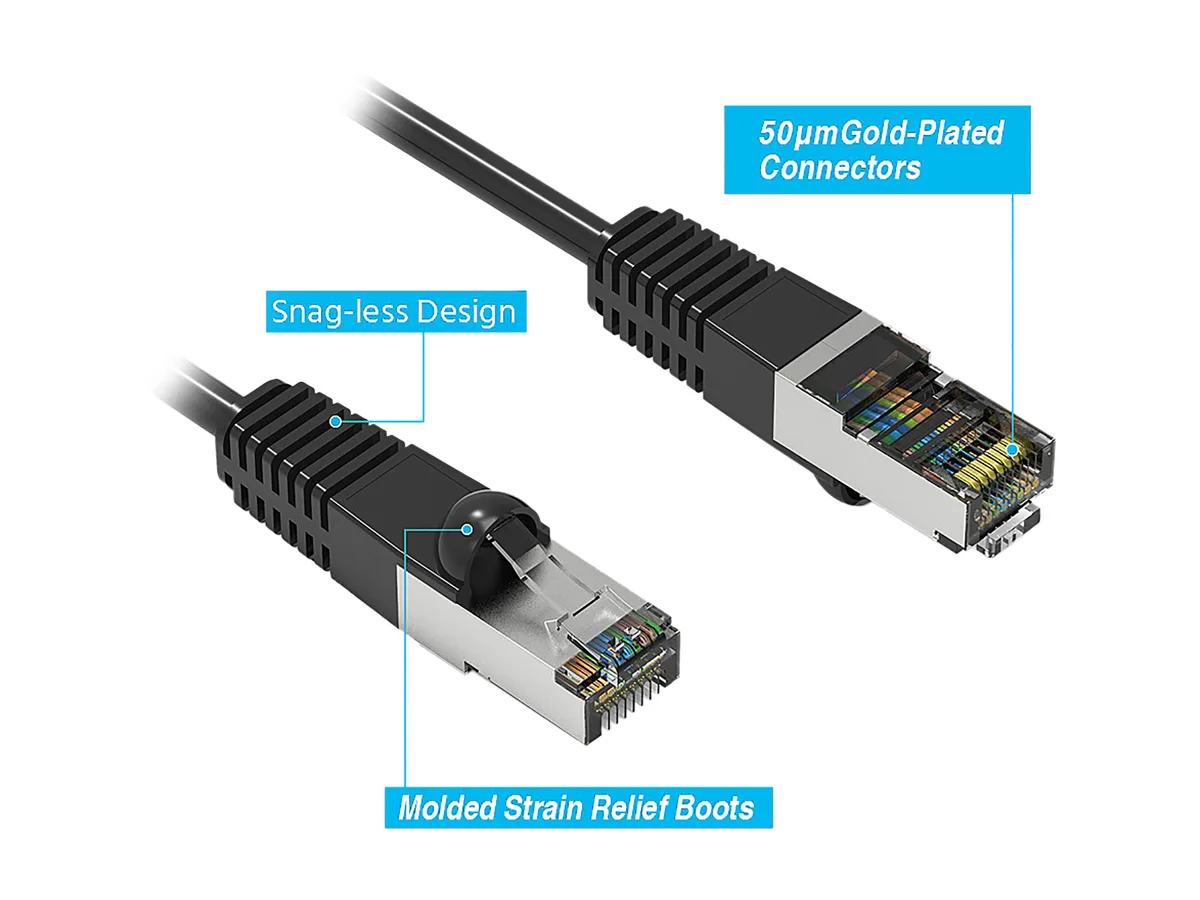

  • 50-micron gold-plated contacts ensure reliable signal integrity
  • 26 AWG pure copper conductors deliver consistent performance
  • UL and ETL verified to TIA/EIA standards with RoHS compliance

50 ft Cat7 shielded patch cable

This 50 ft Cat7 cable uses double-shielded SSTP construction with 26 AWG stranded pure copper conductors. Each of the four pairs is individually foil-shielded beneath an overall braided screen. RJ45 plugs carry 50 micron gold-plated contacts and follow T-568B wiring. The CM-rated PVC jacket meets UL and ETL verification and RoHS requirements.

Upgrade from unshielded Cat5e or Cat6 runs

The 600 MHz bandwidth supports Gigabit Ethernet with tighter crosstalk and noise margins than lower categories. Shielding pays off in environments with dense cable bundles, fluorescent lighting or nearby power lines. For short desktop links under 10 ft the extra screening may not be necessary, but longer runs through walls or ceilings benefit from the added immunity.

Limited to 100 m channel length for rated

The 600 MHz rating is specified over 100 meters (328 ft) of fully shielded cabling. At 50 ft this cable stays well within that limit, but total channel length including patch cords and horizontal runs must not exceed 100 m. Connectors are standard RJ45; they do not use the GG45 or TERA interfaces defined for full Cat7 compliance, so installed hardware must accept standard 8P8C plugs.

Highlights

  • Supports 600 MHz bandwidth for high-speed data transfer
  • Double-shielded SSTP construction reduces crosstalk and system noise
  • 50-micron gold-plated contacts ensure reliable signal integrity
  • 26 AWG pure copper conductors deliver consistent performance
  • UL and ETL verified to TIA/EIA standards with RoHS compliance

Specifications

BrandNippon Labs
Model60CAT7-50BK
TypeNetwork Ethernet Cables
Cat7
Connector ARJ45
Connector BRJ45
Length50 ft.
ColorBlack
ShieldedYes
Wire Gauge26 AWG
FeaturesCat.7 patch cable specifications require transmission frequencies of up to 600 MHz over 100 meters (328Ft) of fully shielded copper cabling.
Cat.7 cable consists of four individually shielded pairs inside an overall braided shield, also known as Shielded Twisted Pair Cable (SSTP), or S/FTP (Shielded Foil Twisted Pair).
Cat.7 features even more stringent specifications for crosstalk and system noise than Cat.6, and is designed specifically for Gigabit Ethernet applications.
Compliant with TIA/EIA standard by UL and ETL; RoHS Compliant.
4-pair stranded pure copper wire 26AWG double shi
Shipping weight1.00 kg
Package size279 × 203 × 64 mm

Questions about this item

What connector type and cable diameter should I plan for when routing this 50 ft Cat7 cable?

The cable uses RJ45 connectors on both ends and is built with 26 AWG stranded copper conductors inside a CM-rated PVC jacket.

How do I correctly install the shielded RJ45 plugs to maintain Cat7 performance?

Terminate each end using the T568B wiring scheme; ensure the shielded plug's metal housing makes full contact with the cable's overall braided shield so the SSTP screening remains continuous.

When should I consider replacing this cable or checking its shielding integrity?

Inspect the boot and jacket for cracks or kinks after any sharp bend or pull; replace the cable if the gold-plated contacts show corrosion or if the braided shield is exposed.
