Black Cat7 Ethernet cable, 3 ft, shielded RJ45 connectors, matte PVC jacket

Nippon Labs

Nippon Labs 60CAT7-3BK Cat7 network ethernet cable 3 ft black

SKU CH-6P31-ZZMA2 MPN 60CAT7-3BK

A 3 ft Cat 7 patch cable with double shielding, 26 AWG pure copper conductors and gold-plated RJ45 plugs rated for 600 MHz

  • TypeNetwork Ethernet Cables
  • Cat7
  • Connector ARJ45
  • Connector BRJ45
  • Length3 ft.
  • ColorBlack
  • 600 MHz bandwidth supports high-speed Gigabit Ethernet
  • Double-shielded SSTP construction reduces crosstalk and system noise
  • 26 AWG pure copper conductors ensure reliable signal transmission
  • Gold-plated RJ45 contacts resist corrosion for lasting connectivity
  • UL and ETL verified to TIA/EIA standards

Cable length and category

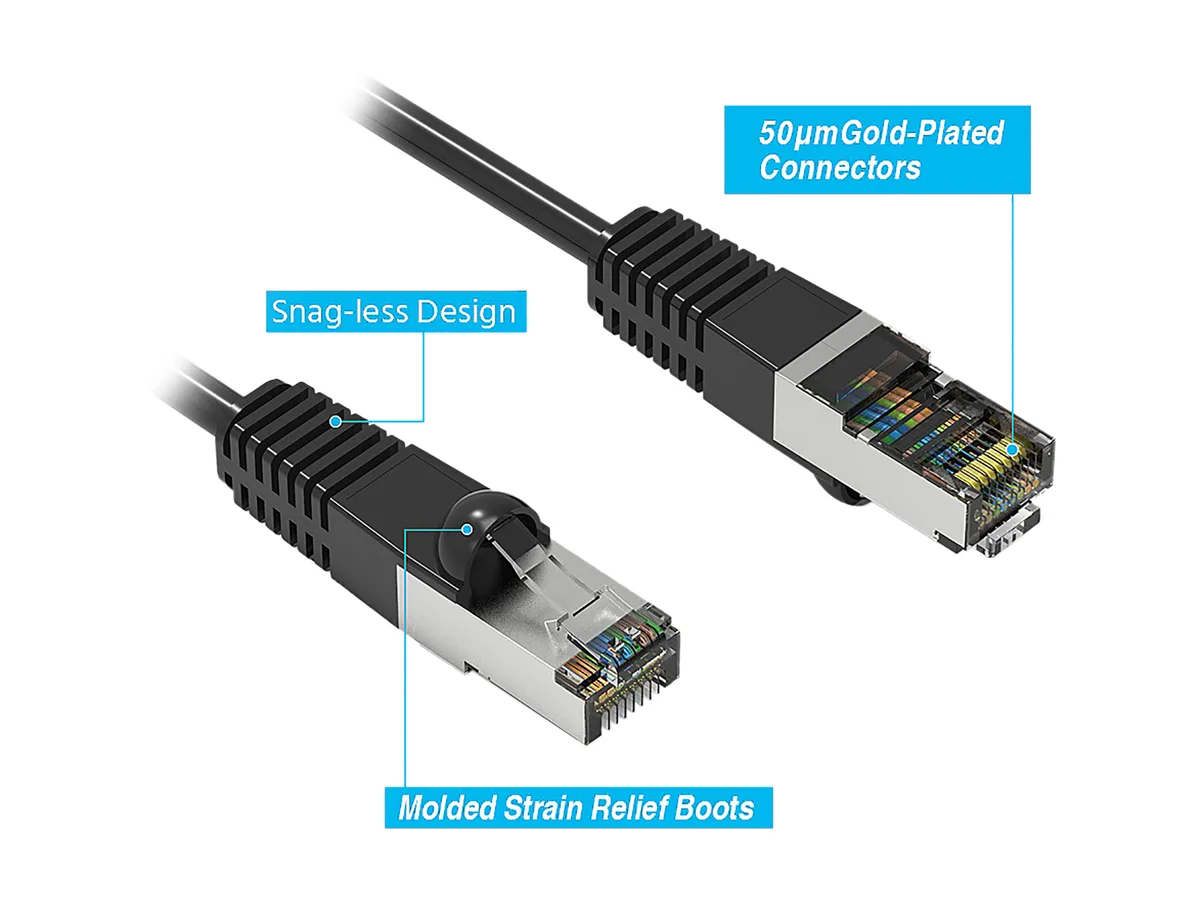

The Nippon Labs 60CAT7-3BK is a Category 7 shielded patch cable measuring three feet. It uses 26 AWG stranded pure copper conductors with individual pair shielding and an overall braided screen. Both ends terminate in RJ45 plugs with 50 micron gold plated contacts wired to the T568B standard. The CM type PVC jacket meets UL and ETL verification for TIA/EIA compliance and is RoHS compliant.

600 MHz bandwidth and shielding

The cable is rated for transmission frequencies up to 600 MHz over the full 100 metre channel distance specified for Cat.7. Its SSTP construction with four individually shielded pairs inside an overall braid provides stricter crosstalk and system noise performance than Category 6. This makes the jump worthwhile when installing Gigabit Ethernet links in environments with high electromagnetic interference or when future proofing for 10 Gigabit runs up to the rated distance.

Short runs and permanent installs

The three foot length suits short rack patches, wall outlet to device links or bench testing where excess slack is unwanted. Builders needing longer horizontal runs, outdoor burial ratings or non shielded UTP cable should look elsewhere. The booted connectors add strain relief but increase the plug profile, so extremely dense patch panels with tight port spacing may require a slimmer boot design.

Highlights

  • 600 MHz bandwidth supports high-speed Gigabit Ethernet
  • Double-shielded SSTP construction reduces crosstalk and system noise
  • 26 AWG pure copper conductors ensure reliable signal transmission
  • Gold-plated RJ45 contacts resist corrosion for lasting connectivity
  • UL and ETL verified to TIA/EIA standards

Specifications

BrandNippon Labs
Model60CAT7-3BK
TypeNetwork Ethernet Cables
Cat7
Connector ARJ45
Connector BRJ45
Length3 ft.
ColorBlack
ShieldedYes
Wire Gauge26 AWG
FeaturesCat.7 patch cable specifications require transmission frequencies of up to 600 MHz over 100 meters (328Ft) of fully shielded copper cabling.
Cat.7 cable consists of four individually shielded pairs inside an overall braided shield, also known as Shielded Twisted Pair Cable (SSTP), or S/FTP (Shielded Foil Twisted Pair).
Cat.7 features even more stringent specifications for crosstalk and system noise than Cat.6, and is designed specifically for Gigabit Ethernet applications.
Compliant with TIA/EIA standard by UL and ETL; RoHS Compliant.
4-pair stranded pure copper wire 26AWG double shi
Shipping weight0.09 kg
Package size152 × 127 × 25 mm

Questions about this item

How much space does the booted RJ45 connector need behind a patch panel or switch port?

The boot extends past the RJ45 body, so allow enough clearance for the boot to seat fully without bending the cable sharply at the jack.

What is the correct way to seat the shielded RJ45 plug so the 50 micron gold contacts and ground tab make full connection?

Align the tab, push straight in until the boot clicks, and verify the metal shield tabs contact the port chassis; do not rock the plug sideways during insertion.

When should this Cat7 SSTP patch cable be replaced to maintain 600 MHz performance?

Replace if the boot cracks, the jacket shows kinks or abrasion, or the gold contacts appear worn or corroded, as damage to shielding or conductors degrades the 600 MHz rating.
