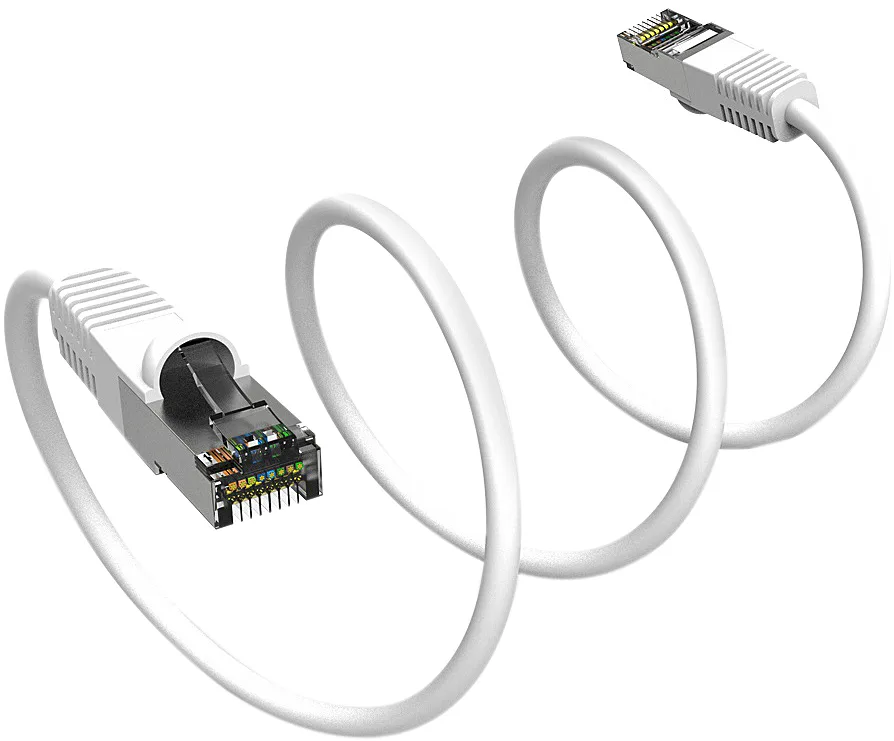

White Cat7 ethernet cable with RJ45 connectors, 100 ft length, shielded PVC jacket

Nippon Labs

Nippon Labs 60CAT7-100WT Cat7 network ethernet cable 100 ft White 26AWG 600MHz SSTP

SKU CH-SJCC-75SVY MPN 60CAT7-100WT

A 100 ft Cat7 SSTP patch cable with 600 MHz bandwidth, 26 AWG pure copper conductors, shielded RJ45 plugs and gold-plated contacts

  • TypeNetwork Ethernet Cables
  • Cat7
  • Length100 ft.
  • ColorWhite
  • ShieldedYes
  • Wire Gauge26 AWG
  • Supports 600 MHz bandwidth for high-speed Gigabit Ethernet
  • Double-shielded SSTP construction reduces crosstalk and system noise

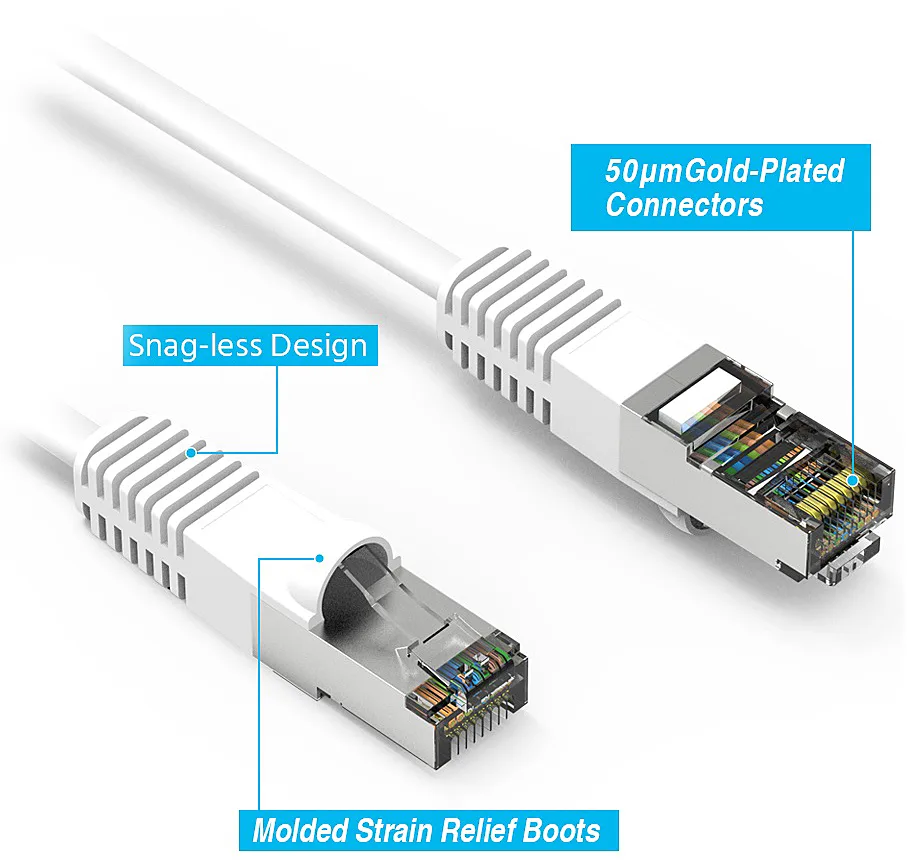

  • 50-micron gold-plated RJ45 contacts resist corrosion for reliable connectivity
  • 100-foot length with molded strain-relief boots ensures durable installation
  • UL/ETL verified TIA/EIA compliant and RoHS compliant for safety

100 ft Cat7 SSTP cable

This 100 ft Category 7 patch cable uses 26 AWG stranded pure copper conductors with individual foil shielding on each pair and an overall braided shield. Shielded RJ45 plugs with 50 micron gold-plated contacts terminate both ends in a T568B wiring scheme. It is built for installers and network engineers who need fully shielded copper runs up to the rated distance.

Sustained 600 MHz bandwidth

The SSTP construction suppresses alien crosstalk and system noise continuously along the full 100 ft length, maintaining the 600 MHz rating under constant Gigabit Ethernet traffic. CM-rated PVC jacket meets in-wall flame requirements without degrading signal integrity during long transfers. UL and ETL verification confirms compliance with TIA/EIA Category 7 transmission limits over the entire run.

Check connector clearance and grounding

Verify that your keystones, patch panels or device ports accept the shielded RJ45 boot dimensions before pulling cable. Ensure the rack or cabinet provides a grounding path for the overall braid to realise the full shielding benefit. Confirm the 100 ft route stays within the 328 ft Category 7 maximum channel length when combined with other segments.

Highlights

  • Supports 600 MHz bandwidth for high-speed Gigabit Ethernet
  • Double-shielded SSTP construction reduces crosstalk and system noise
  • 50-micron gold-plated RJ45 contacts resist corrosion for reliable connectivity
  • 100-foot length with molded strain-relief boots ensures durable installation
  • UL/ETL verified TIA/EIA compliant and RoHS compliant for safety

Specifications

BrandNippon Labs
Model60CAT7-100WT
TypeNetwork Ethernet Cables
Cat7
Length100 ft.
ColorWhite
ShieldedYes
Wire Gauge26 AWG

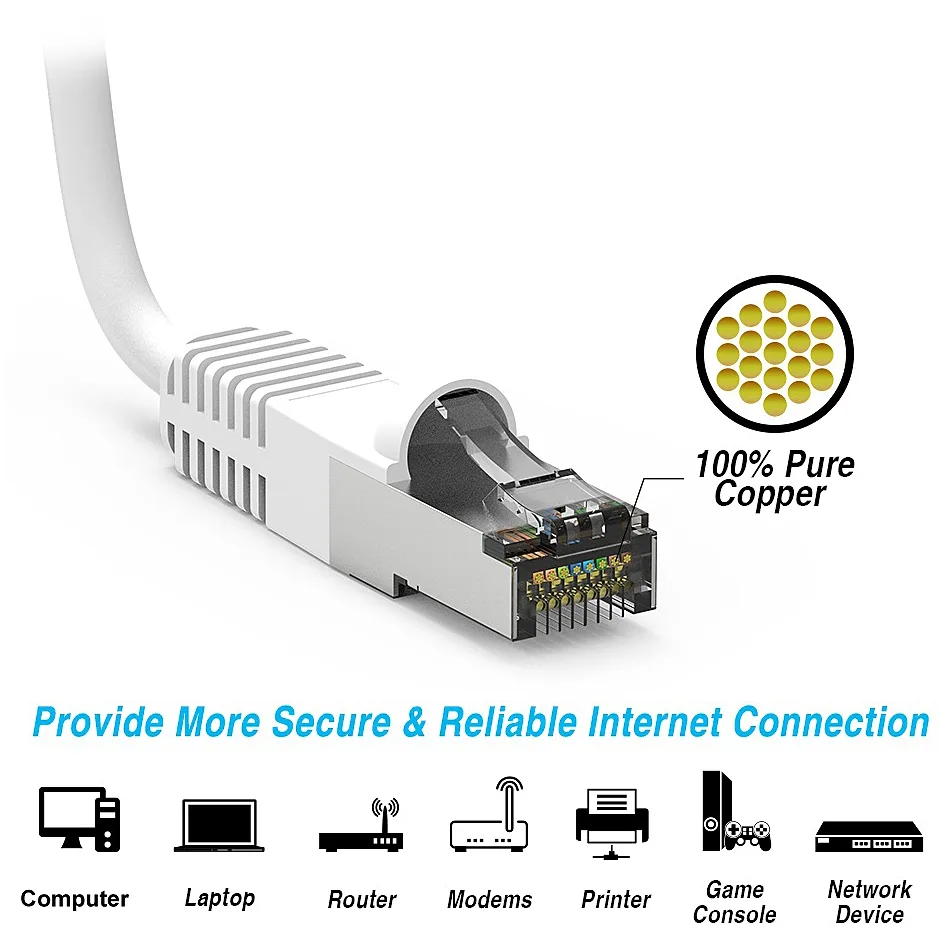

Features26AWG double shielded 4pair stranded pure copper wire
RJ45 shielded plug with 50 micron gold plated contacts
600MHz rated
CM Type PVC jacket
Certification: Compliant with TIA/EIA standard by UL and ETL; RoHS Compliant
T-568B standard wiring
Cat.7 patch cable specifications require transmission frequencies of up to 600 MHz over 100 meters (328Ft) of fully shielded copper cabling
Cat.7 cable consists of four individually shielded pairs inside an overall braided shield, also known as Shielded Twisted Pair Cable (SSTP), or S/FTP (Shielded Foil Twisted Pair)
Cat.7 features even more strin
Shipping weight1.63 kg
Package size279 × 203 × 127 mm

Questions about this item

Does the 600 MHz Cat7 cable generate any heat or draw extra power when running continuously?

Ethernet patch cables are passive copper conductors and produce no measurable heat or power draw during continuous use.

What equipment must I already have for the RJ45 connectors to work?

Any device with a standard RJ45 Ethernet port — PCs, servers, printers, routers, switches or network media players — will accept the shielded plugs.

Will the 26 AWG SSTP cable work reliably alongside older Cat5e or Cat6 runs in the same network?

Yes, the T568B wiring and shielded RJ45 plugs are fully backward compatible with Cat5e and Cat6 infrastructure.
