Black RJ45 Cat6A Ethernet cable, 75 ft, booted connectors, matte PVC jacket

Nippon Labs

Nippon Labs 60CAT6A-75BK network ethernet cable Cat6A 75 ft UTP 24 AWG black

SKU CH-FQKW-HDAJ9 MPN 60CAT6A-75BK

A 75-foot Cat6A UTP patch cable with 24 AWG stranded copper conductors, gold-plated RJ45 connectors, and 500 MHz bandwidth for 10 Gigabit Ethernet up to 100 meters

  • Cat6A
  • Length75 ft.
  • ColorBlack
  • ShieldedUTP
  • Wire Gauge24 AWG
  • FeaturesCat.6A patch cable is used in network applications such as 1
  • Supports 10 Gigabit Ethernet up to 100 meters
  • 550 MHz bandwidth rating enables high-speed data transfer
  • 50 micron gold-plated RJ45 contacts resist corrosion
  • Stranded 24 AWG pure copper conductors ensure flexibility
  • CM-rated PVC jacket meets TIA/EIA and RoHS standards

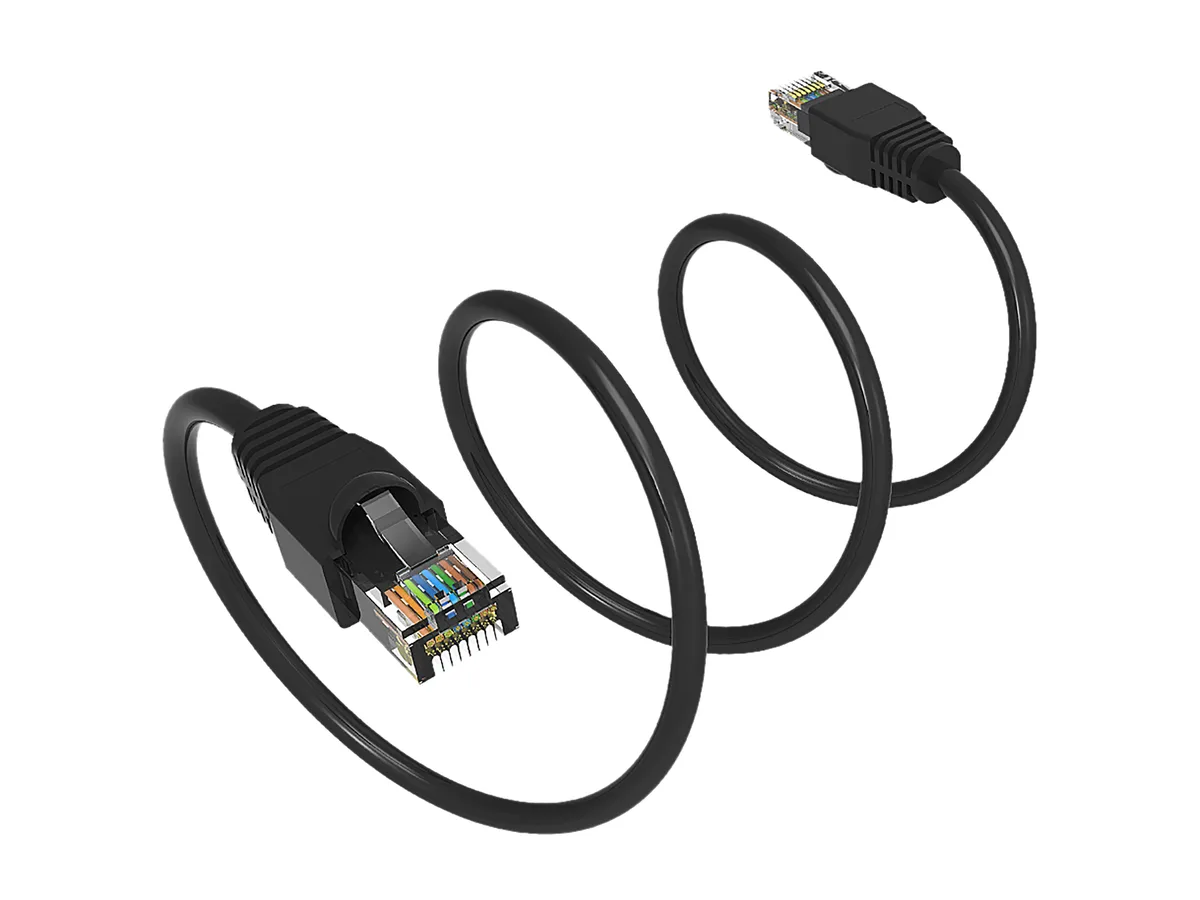

75-foot Cat6A patch cable for 10 Gigabit links

This 75-foot Cat6A UTP patch cable connects routers, switches, servers or workstations in a wired LAN. It supports 10Base-T, 100Base-T, 1000Base-T and 10,000Base-T Ethernet up to 100 meters. The 24 AWG stranded pure copper conductors and RJ45 plugs with 50 micron gold contacts are built for 10 Gigabit Ethernet performance.

Passive cable produces no heat noise or power draw

As a passive copper cable it generates no heat, emits no noise and draws no power of its own. The CM-rated PVC jacket provides standard flame-retardant protection for in-wall or desktop routing. Operation at a minimum frequency of 500 MHz and a 550 MHz rating supports the higher bandwidth required by 10 Gigabit links without active cooling.

Booted connectors and T568B wiring simplify

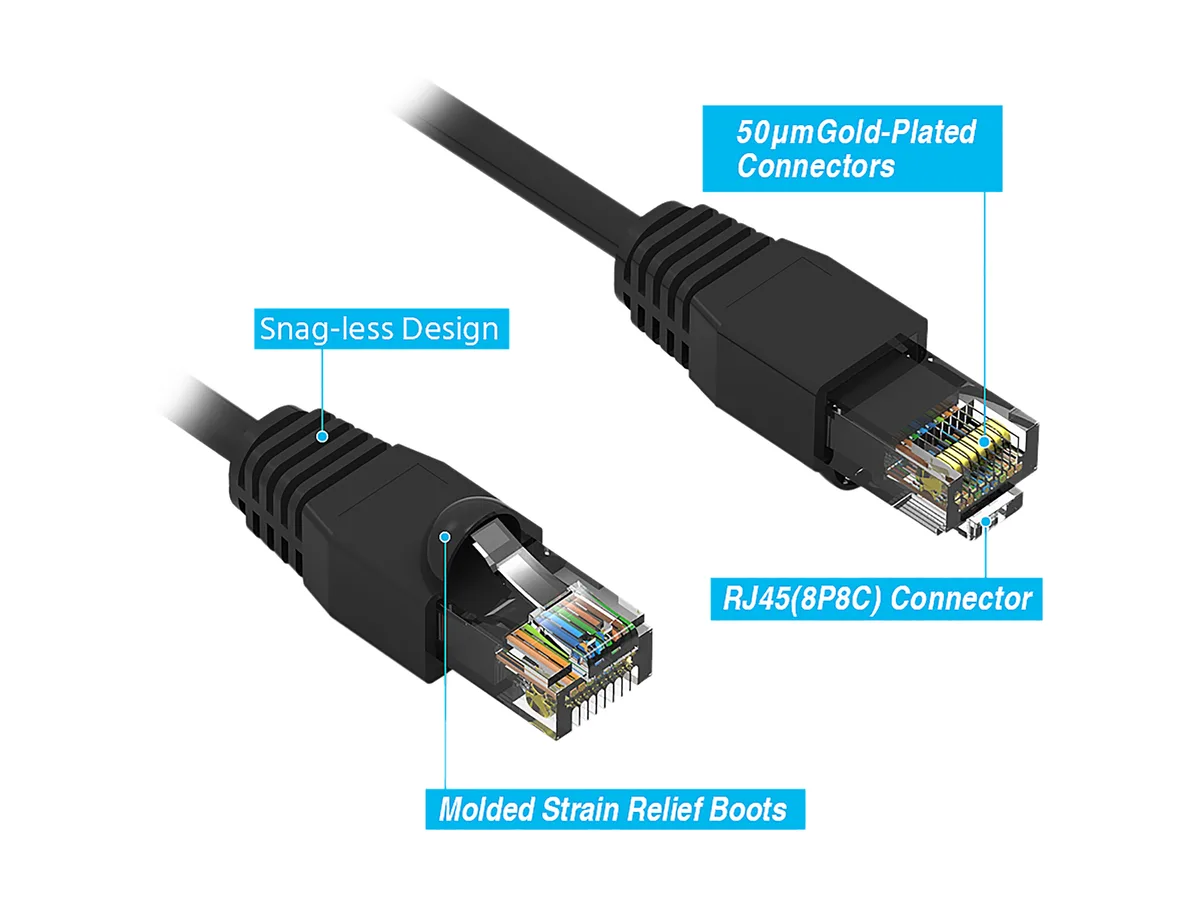

Moulded boots on both RJ45 plugs protect the latch tabs from snapping during repeated insertion or cable management. The cable follows the T568B wiring standard for universal compatibility with existing patch panels and wall outlets. RoHS-compliant materials and UL/ETL-verified TIA/EIA compliance remove the need for separate certification paperwork.

Highlights

  • Supports 10 Gigabit Ethernet up to 100 meters
  • 550 MHz bandwidth rating enables high-speed data transfer
  • 50 micron gold-plated RJ45 contacts resist corrosion
  • Stranded 24 AWG pure copper conductors ensure flexibility
  • CM-rated PVC jacket meets TIA/EIA and RoHS standards

Specifications

BrandNippon Labs
Model60CAT6A-75BK
Cat6A
Length75 ft.
ColorBlack
ShieldedUTP
Wire Gauge24 AWG
FeaturesCat.6A patch cable is used in network applications such as 10Base-T, 100Base-T, 1000Base-T, 10,000Base-T Ethernet up to 100 meters (328 feet).
They are designed specifically for 10 Gigabit Ethernet applications over copper.
They perform at high-data transfer rates and operate at a minimum frequency of 500 MHz.
These cables deliver improved performance over standard Cat.6 cables.
Compliant with TIA/EIA standard by UL and ETL; RoHS Compliant.
4-pair UTP (Unshielded Twisted Pair) 24 AWG stranded pure copper wire & T568B standard.
High Performance RJ45 Ethernet Patch Cable provides unive
Shipping weight1.36 kg
Package size279 × 203 × 127 mm

Questions about this item

How do I install the 75 ft Cat6A UTP cable and avoid the common mistake with the RJ45 connectors?

Route the cable to keep bends gentle, then press each RJ45 plug straight into the port until the tab clicks; the frequent error is stopping before the latch engages, leaving the 50 micron gold contacts partially seated.

What maintenance or replacement will the 24 AWG stranded copper cable need over time?

The CM PVC jacket and 50 micron gold contacts are rated for the cable's service life; replacement is only required if the jacket is cut, the boot tears, or a connector tab snaps off during moves.

At what point does the 550 MHz bandwidth limit appear first during sustained 10 Gigabit Ethernet traffic?

The 550 MHz rating and 100 meter channel ceiling set the ceiling; on a 75 ft run the limit you hit first is the 100 meter total link budget, not the cable's own frequency headroom.
