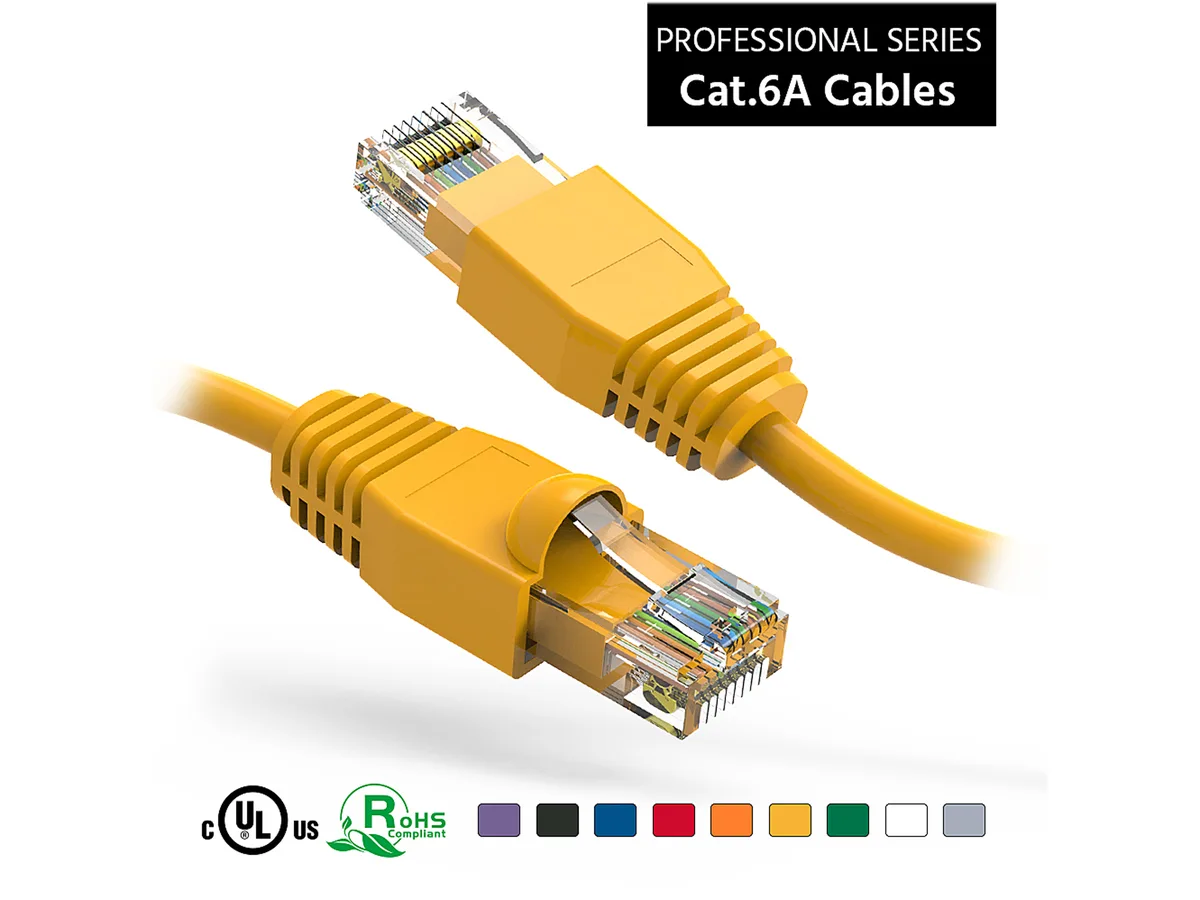

Yellow Cat 6A UTP patch cable 6 ft RJ45 booted connectors

Nippon Labs

Nippon Labs 60CAT6A-6YW network ethernet cable Cat 6A 6 ft Yellow 24 AWG UTP

SKU CH-PREH-NAXAP MPN 60CAT6A-6YW

A 6 ft Cat 6A UTP patch cable with RJ45 connectors supporting 10 Gigabit Ethernet at 500 MHz

  • TypeNetwork Ethernet Cables
  • Cat6A
  • Connector ARJ45
  • Connector BRJ45
  • Length6 ft.
  • ColorYellow
  • Supports 10 Gigabit Ethernet up to 100 metres
  • Operates at 500 MHz minimum frequency for high data rates
  • Gold-plated contacts and snagless boots resist corrosion and ensure secure fit

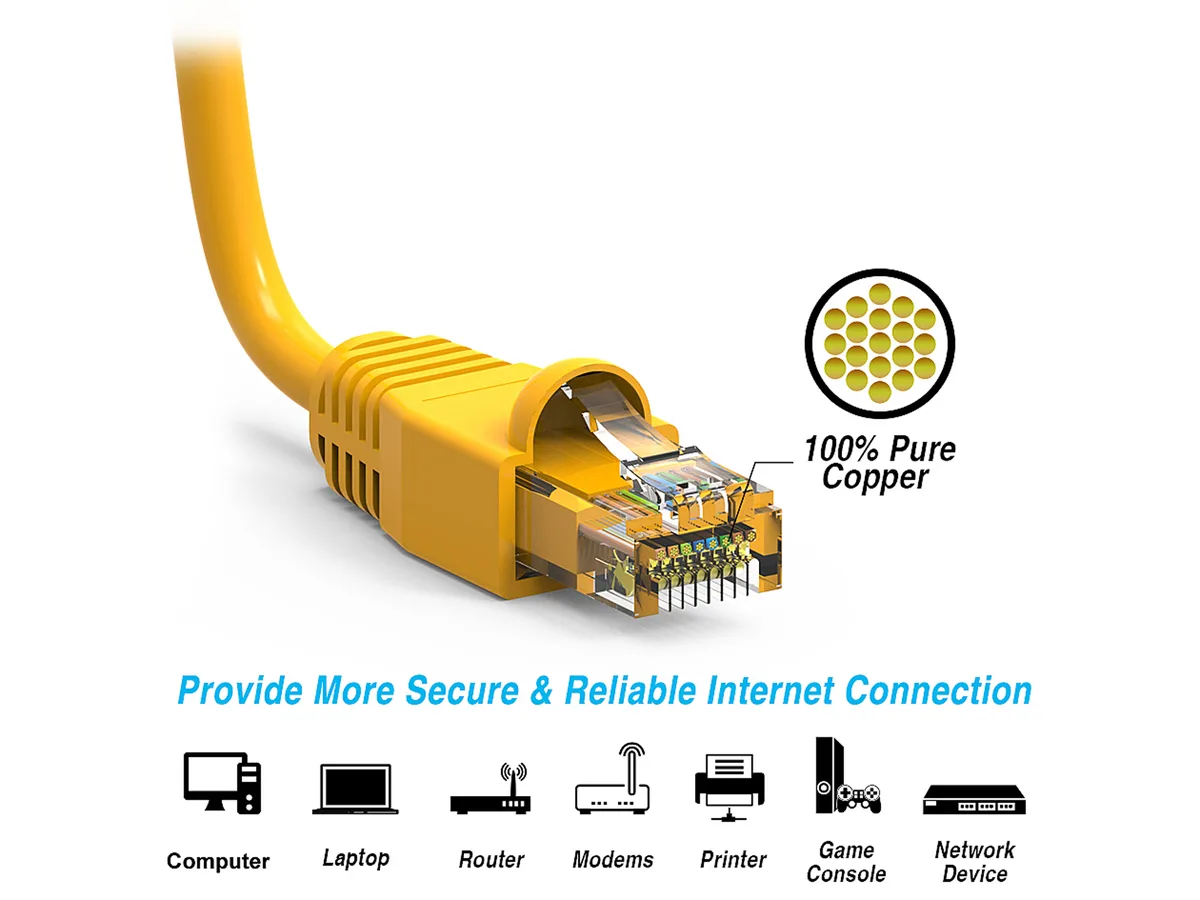

  • 24 AWG stranded pure copper conductors enhance signal performance
  • Compliant with TIA/EIA standards by UL and ETL; RoHS compliant

Cat 6A cable for 10 GbE links

This six-foot yellow patch cable uses unshielded twisted-pair construction rated for Category 6A performance. It terminates in RJ45 connectors wired to the T568B standard and supports 10Base-T, 100Base-T, 1000Base-T and 10000Base-T Ethernet. The stranded 24 AWG pure copper conductors are designed for flexible routing between network devices.

Passive cable with gold-plated contacts

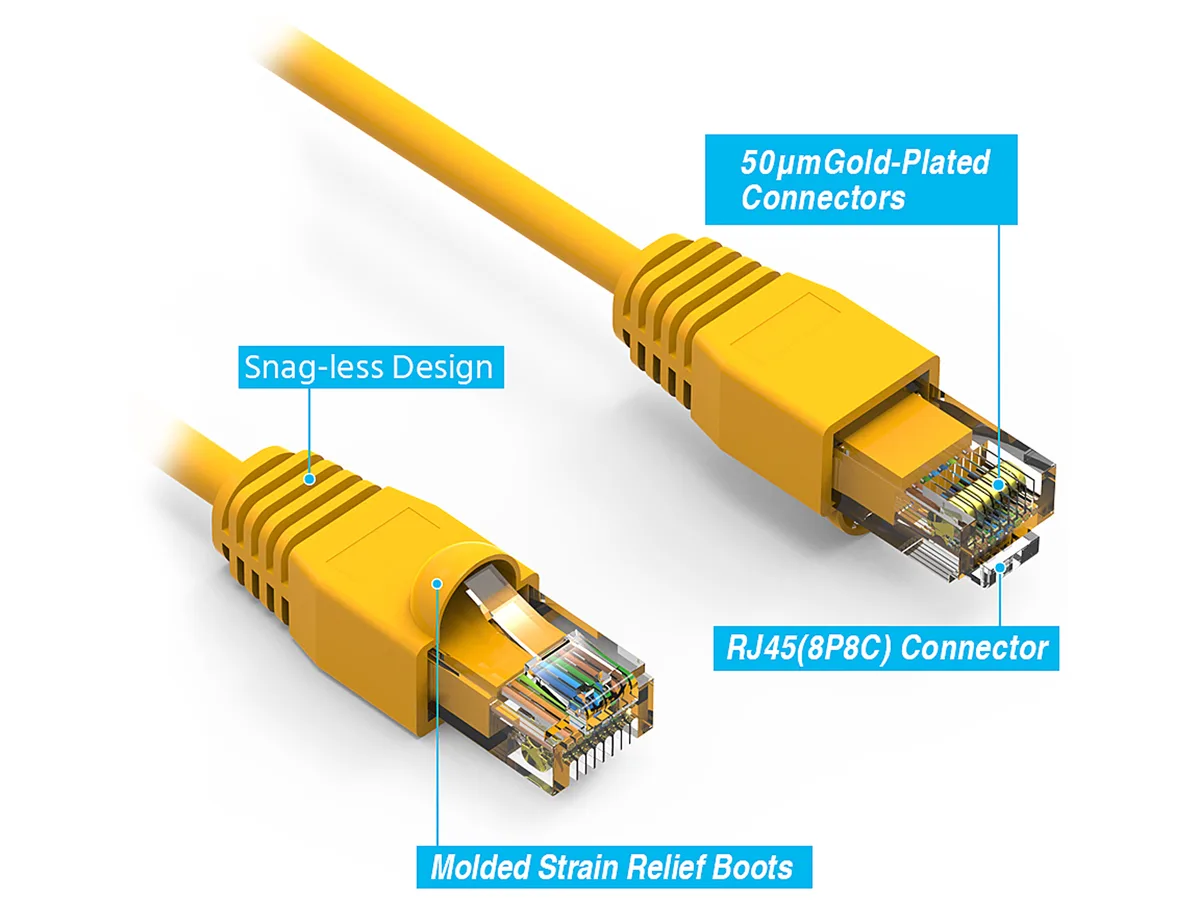

As a passive copper cable it draws no power and generates no heat or noise during operation. The moulded strain-relief boots and snagless connector housings protect the 50 micron gold-plated contacts from corrosion and mechanical stress. A CM-rated PVC jacket provides standard flame-retardant protection for indoor installations.

Replaces Cat 5e or Cat 6 runs for 10 GbE

The cable upgrades older links that cannot sustain 10 Gigabit Ethernet over the full 100 metre channel. Its 500 MHz minimum frequency and improved crosstalk suppression make the jump worthwhile when deploying 10 GbE switches, servers or storage that require the higher bandwidth headroom. It is not suited for shielded or outdoor environments.

Highlights

  • Supports 10 Gigabit Ethernet up to 100 metres
  • Operates at 500 MHz minimum frequency for high data rates
  • Gold-plated contacts and snagless boots resist corrosion and ensure secure fit
  • 24 AWG stranded pure copper conductors enhance signal performance
  • Compliant with TIA/EIA standards by UL and ETL; RoHS compliant

Specifications

BrandNippon Labs
Model60CAT6A-6YW
TypeNetwork Ethernet Cables
Cat6A
Connector ARJ45
Connector BRJ45
Length6 ft.
ColorYellow
ShieldedNo
Wire Gauge24 AWG
FeaturesCat.6A patch cable is used in network applications such as 10Base-T, 100Base-T, 1000Base-T, 10,000Base-T Ethernet up to 100 meters (328 feet).
They are designed specifically for 10 Gigabit Ethernet applications over copper.
They perform at high-data transfer rates and operate at a minimum frequency of 500 MHz.
These cables deliver improved performance over standard Cat.6 cables.
Compliant with TIA/EIA standard by UL and ETL; RoHS Compliant
4-pair UTP (Unshielded Twisted Pair) 24 AWG stranded pure copper wire & T568B standard
High Performance RJ45 Ethernet Patch Cable provides univers
Shipping weight0.14 kg
Package size178 × 165 × 25 mm

Questions about this item

How do I plug the RJ45 connectors into my router and PC without damaging the snagless boots?

Align the latch tab with the port opening, push straight in until you hear a click, and pull the boot back gently if resistance is felt — the molded strain-relief boot and snagless mold protect the 50 micron gold-plated contacts during insertion.

When should I replace this Cat 6A patch cable if the jacket or conductors show wear?

Replace it if the CM PVC jacket is cracked, the 24 AWG stranded copper conductors are exposed, or the gold-plated RJ45 contacts show corrosion — any of these will degrade the 500 MHz minimum frequency and 10 Gigabit Ethernet performance.

What length limit applies before 10 Gigabit speeds drop on this 6 ft cable?

The Cat 6A standard supports 10 Gigabit Ethernet up to 100 meters (328 feet), so a 6 ft patch cord is well within the certified distance and will not be the limiting factor.
