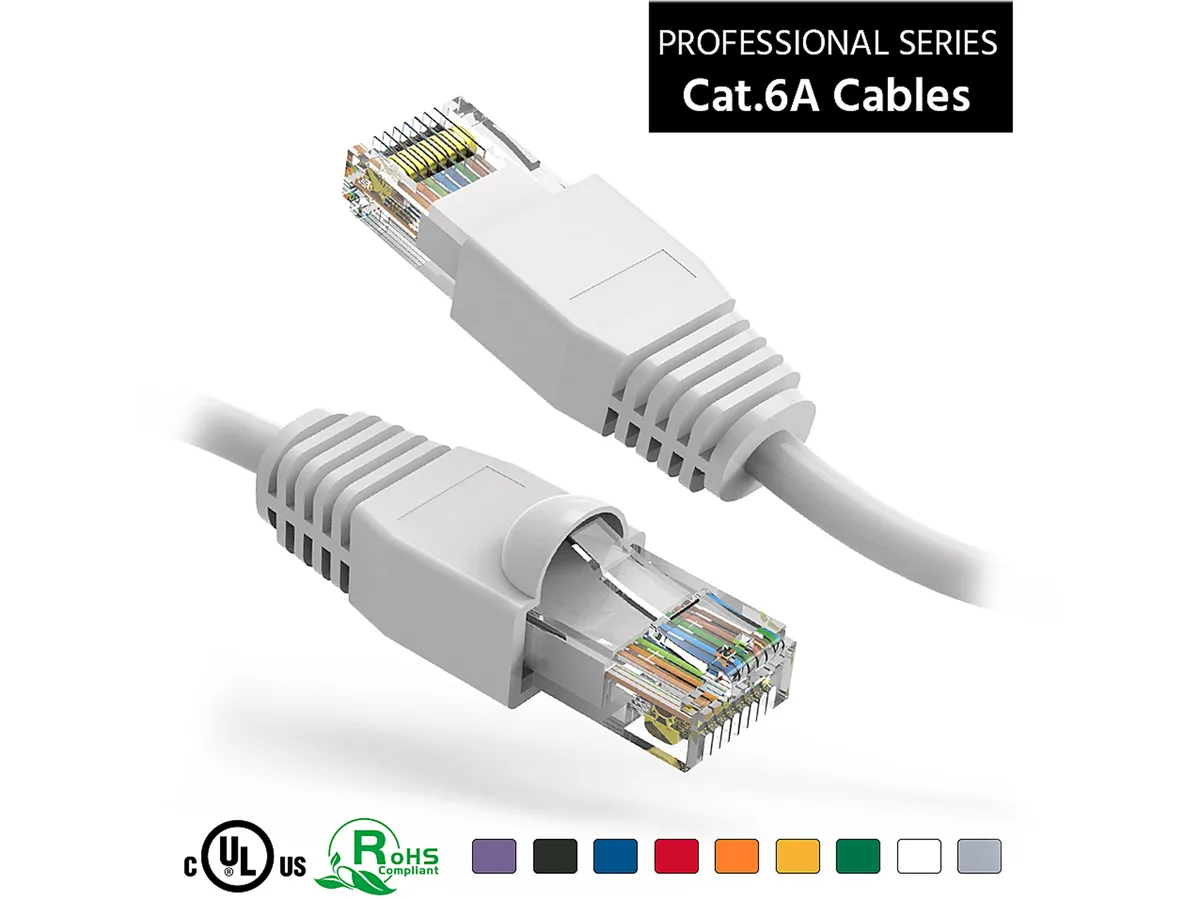

White Cat 6A Ethernet cable with booted RJ45 plugs, five feet long

Nippon Labs

Nippon Labs 60CAT6A-5WT network ethernet cable Cat 6A 5 ft 24 AWG White

SKU CH-FJ3F-QKX58 MPN 60CAT6A-5WT

A 5 ft Cat 6A UTP patch cable with RJ45 connectors rated for 10 Gigabit Ethernet up to 100 meters at 500 MHz

  • TypeNetwork Ethernet Cables
  • Cat6A
  • Connector ARJ45
  • Connector BRJ45
  • Length5 ft.
  • ColorWhite
  • Supports 10 Gigabit Ethernet up to 100 metres
  • Operates at a minimum frequency of 500 MHz
  • Gold-plated contacts resist corrosion and ensure secure connection

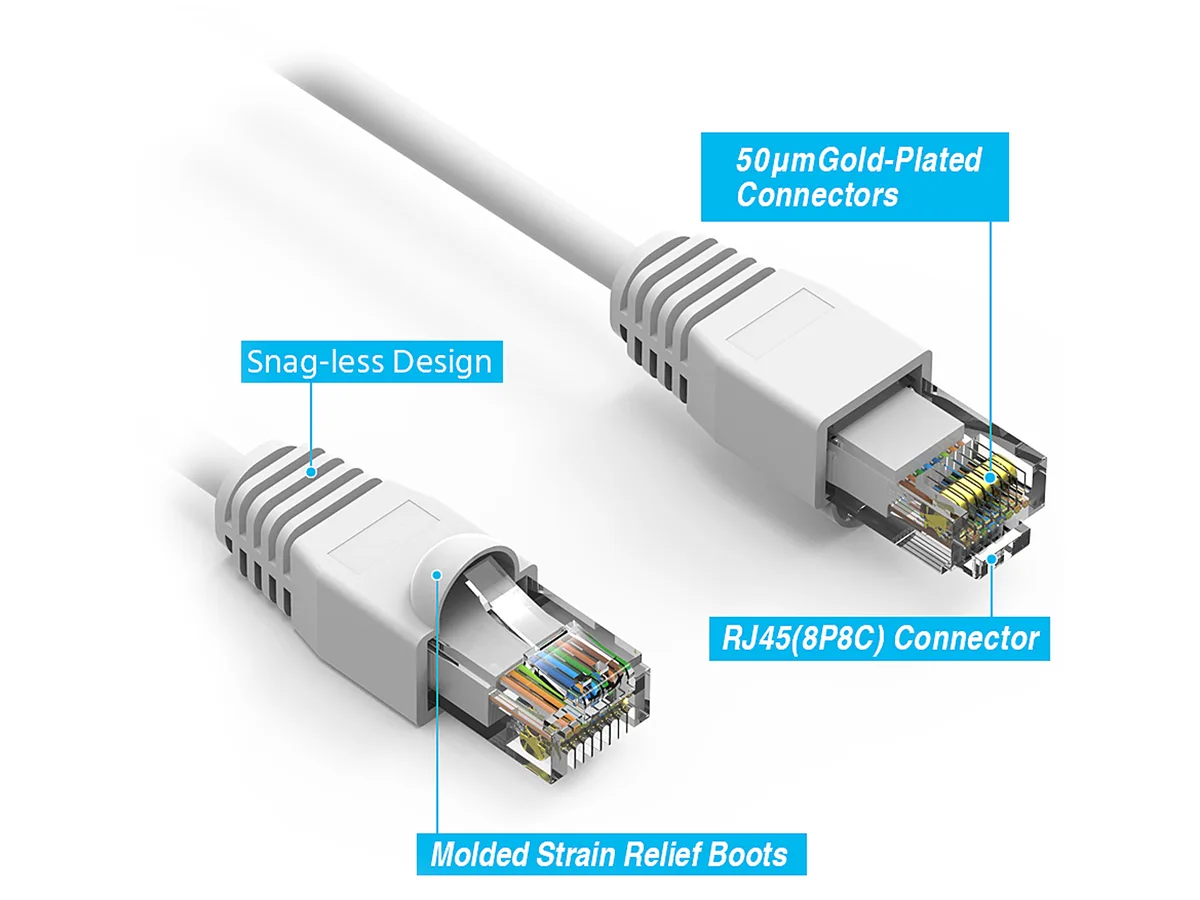

  • Snagless moulded boots protect the latch during installation

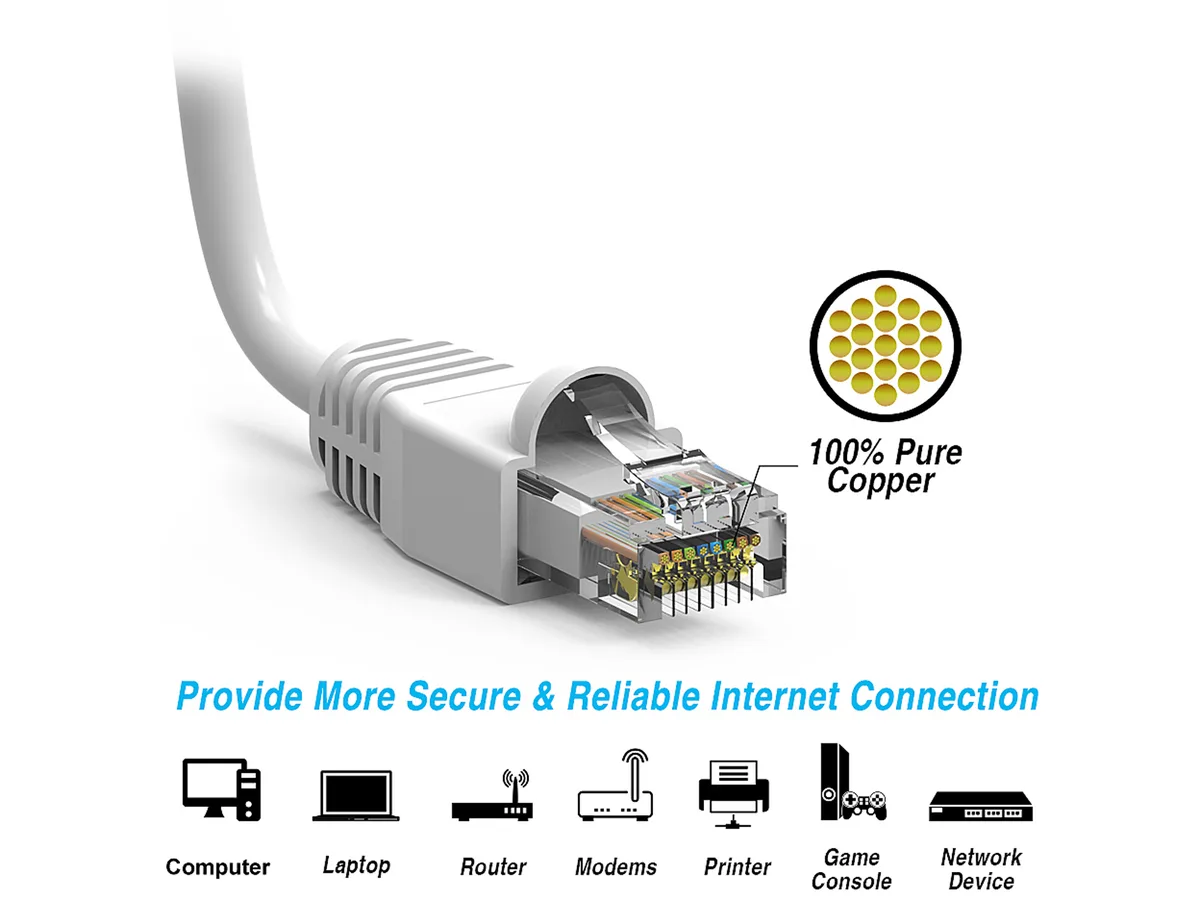

  • 24 AWG stranded pure copper conductors deliver reliable signal integrity

Nippon Labs Cat 6A 5 ft cable

This 5 ft Cat 6A UTP patch cable uses 24 AWG stranded pure copper conductors with gold-plated RJ45 contacts. It is built for 10 Gigabit Ethernet links up to 100 meters and operates at a minimum frequency of 500 MHz. Molded strain-relief boots and snagless molds protect the connectors during repeated insertion. The cable meets TIA/EIA standards verified by UL and ETL and is RoHS compliant.

Ideal for short 10 GbE runs

The 5 ft length suits rack-to-panel links, switch-to-server connections or desktop drops where a full 100 metre channel is not required. It supports 10Base-T, 100Base-T, 1000Base-T and 10,000Base-T signalling over copper. Installers who need shielded cable for high-EMI environments or longer single-cable spans beyond 5 ft should select a different construction.

Handles 10 GbE with 500 MHz headroom

The 550 MHz rated bandwidth provides margin above the 500 MHz Cat 6A minimum for clean 10,000Base-T throughput. Crosstalk suppression and improved heat dissipation support PoE loads on all four pairs. At 5 ft the cable adds negligible insertion loss to a 100 metre channel budget. It cannot extend a link past the 100 metre (328 ft) standard limit on its own.

Highlights

  • Supports 10 Gigabit Ethernet up to 100 metres
  • Operates at a minimum frequency of 500 MHz
  • Gold-plated contacts resist corrosion and ensure secure connection
  • Snagless moulded boots protect the latch during installation
  • 24 AWG stranded pure copper conductors deliver reliable signal integrity

Specifications

BrandNippon Labs
Model60CAT6A-5WT
TypeNetwork Ethernet Cables
Cat6A
Connector ARJ45
Connector BRJ45
Length5 ft.
ColorWhite
ShieldedNo
Wire Gauge24 AWG
FeaturesCat.6A patch cable is used in network applications such as 10Base-T, 100Base-T, 1000Base-T, 10,000Base-T Ethernet up to 100 meters (328 feet).
They are designed specifically for 10 Gigabit Ethernet applications over copper.
They perform at high-data transfer rates and operate at a minimum frequency of 500 MHz.
These cables deliver improved performance over standard Cat.6 cables.
Compliant with TIA/EIA standard by UL and ETL; RoHS Compliant
4-pair UTP (Unshielded Twisted Pair) 24 AWG stranded pure copper wire & T568B standard
High Performance RJ45 Ethernet Patch Cable provides univers
Shipping weight0.11 kg
Package size178 × 165 × 25 mm

Questions about this item

What RJ45-equipped devices do I need at both ends to use this 5 ft Cat 6A cable?

You need any LAN components with RJ45 ports — PCs, servers, printers, routers, switches or network media players — on each side of the link.

Will this 24 AWG Cat 6A patch cord run at 10 Gigabit speeds alongside my existing Cat 5e or Cat 6 runs?

Yes, it supports 10,000Base-T up to 100 metres and is backward compatible with 10Base-T, 100Base-T and 1000Base-T on the same network.

How can I confirm the cable is delivering its rated 500 MHz performance after installation?

Verify the link negotiates 10 Gbps in your OS or switch dashboard and run a certification tester that passes the 500 MHz Cat 6A channel test.
