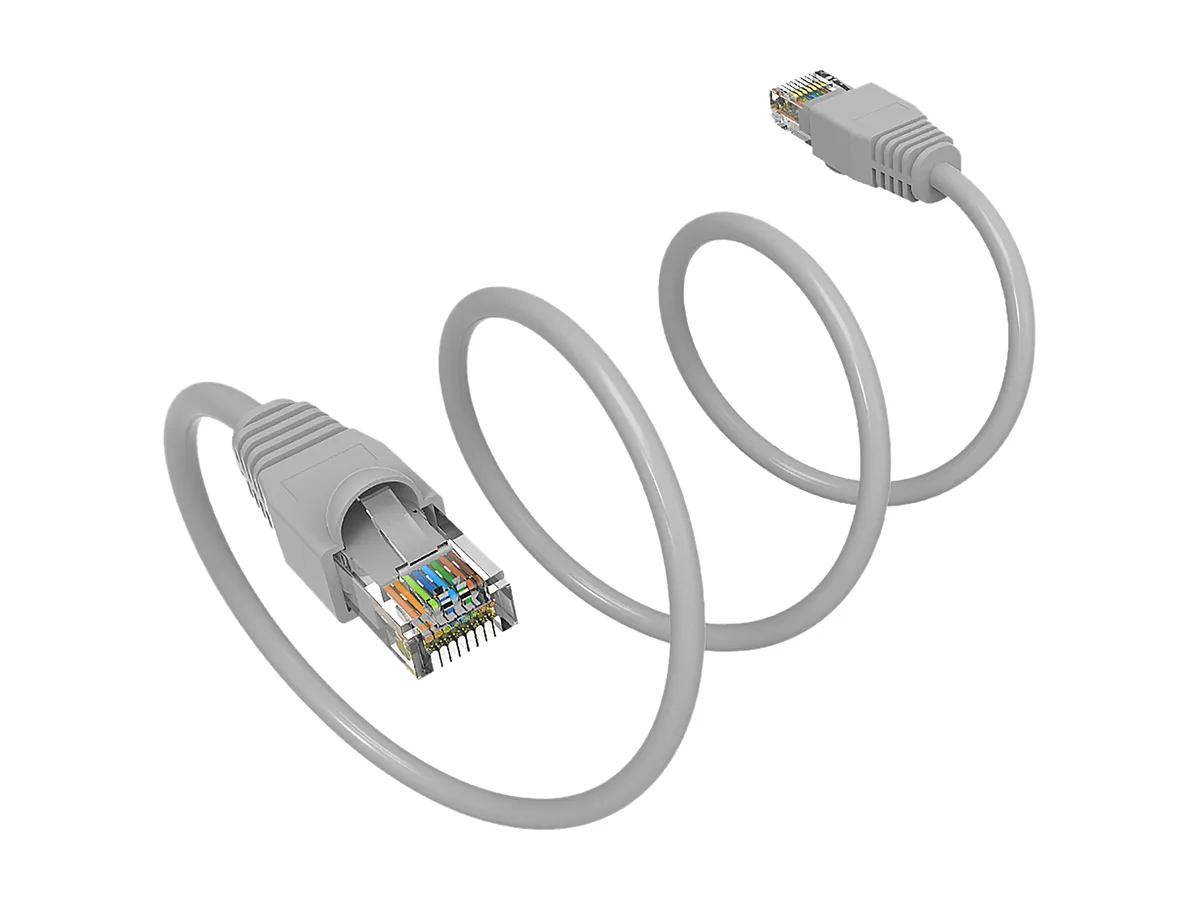

Grey UTP Cat6A patch cable with booted RJ45 plugs, five feet long

Nippon Labs

Nippon Labs 60CAT6A-5GY Cat6A UTP network ethernet cable 5 ft Gray 24AWG

SKU CH-PVJK-RCHE4 MPN 60CAT6A-5GY

A 5 ft Cat6A UTP patch cable with RJ45 connectors, 24 AWG stranded copper, gold-plated contacts, and 500 MHz bandwidth for 10 Gigabit Ethernet

  • TypeNetwork Ethernet Cables
  • Cat6A
  • Connector ARJ45
  • Connector BRJ45
  • Length5 ft.
  • ColorGray
  • Supports 10 Gigabit Ethernet at 500 MHz
  • 24 AWG stranded pure copper for reliable signal

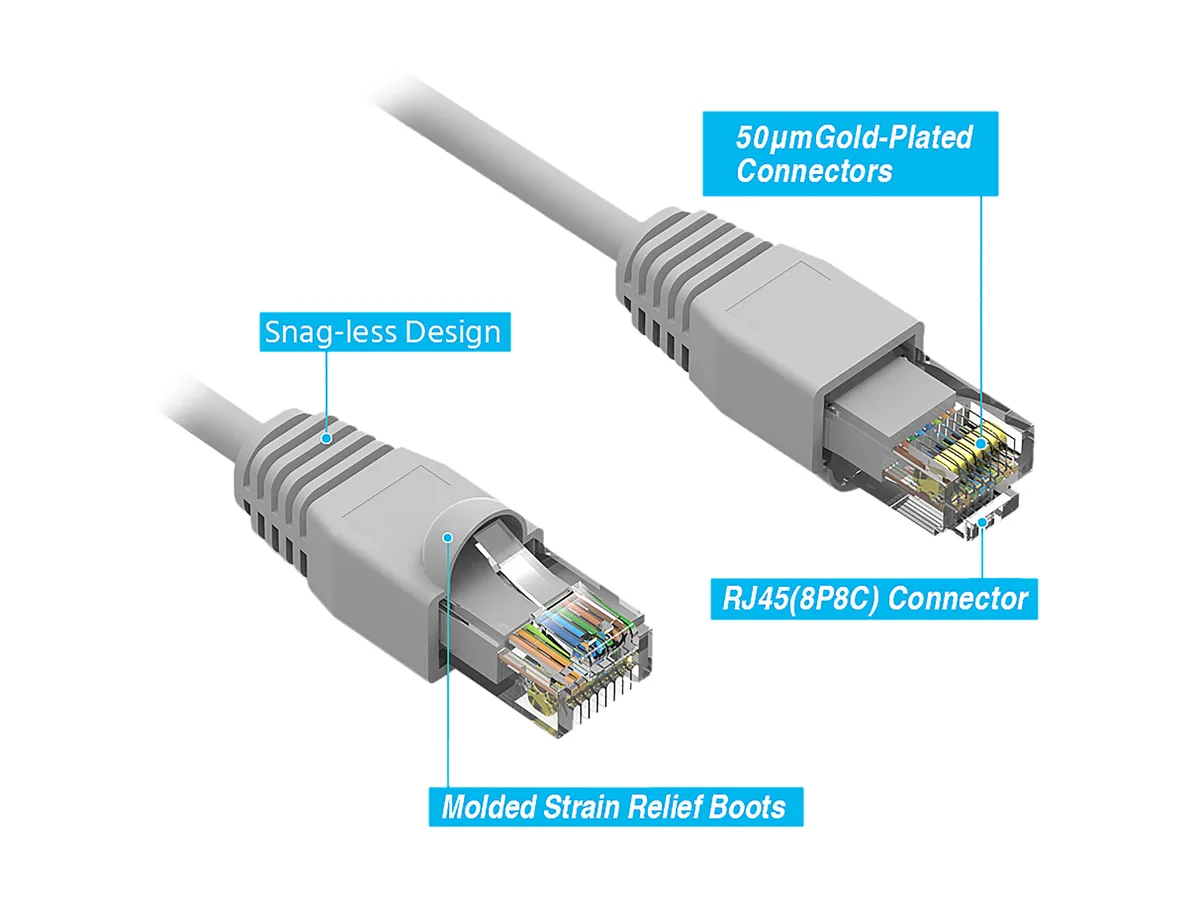

  • 50 micron gold-plated RJ45 contacts resist corrosion
  • UL and ETL verified to TIA/EIA standards
  • 5 ft gray patch cable with booted connectors

Nippon Labs Cat6A 5 ft patch cable

This 5 ft Cat6A UTP patch cable carries 10 Gigabit Ethernet over copper. It uses 24 AWG stranded pure copper conductors and RJ45 plugs with 50 micron gold contacts. The CM-rated PVC jacket meets TIA/EIA standards verified by UL and ETL. It is suited for workstations, servers and switches needing 10 Gbps links up to 100 metres.

Check connector and length before ordering

Verify that both endpoints use RJ45 ports and that a 5 ft run reaches between them without tension. The cable follows T568B wiring and supports 10Base-T, 100Base-T, 1000Base-T and 10000Base-T standards. Ensure the patch panel or keystone accepts unshielded 24 AWG plugs. No shielded or outdoor-rated jacket is provided.

Replaces Cat5e or Cat6 links for 10 Gbps

Moving from Cat5e or standard Cat6 to this Cat6A cable enables 10 Gigabit speeds at 500 MHz bandwidth with better crosstalk suppression and heat dissipation for PoE. The upgrade is worth it when 10 Gbps NICs or switches are installed and runs stay within 100 metres. It does not add shielding for high-EMI environments.

Highlights

  • Supports 10 Gigabit Ethernet at 500 MHz
  • 24 AWG stranded pure copper for reliable signal
  • 50 micron gold-plated RJ45 contacts resist corrosion
  • UL and ETL verified to TIA/EIA standards
  • 5 ft gray patch cable with booted connectors

Specifications

BrandNippon Labs
Model60CAT6A-5GY
TypeNetwork Ethernet Cables
Cat6A
Connector ARJ45
Connector BRJ45
Length5 ft.
ColorGray
ShieldedUTP
Wire Gauge24 AWG
FeaturesCat.6A patch cable is used in network applications such as 10Base-T, 100Base-T, 1000Base-T, 10,000Base-T Ethernet up to 100 meters (328 feet).
They are designed specifically for 10 Gigabit Ethernet applications over copper.
They perform at high-data transfer rates and operate at a minimum frequency of 500 MHz.
These cables deliver improved performance over standard Cat.6 cables.
Compliant with TIA/EIA standard by UL and ETL; RoHS Compliant.
4-pair UTP (Unshielded Twisted Pair) 24 AWG stranded pure copper wire & T568B standard.
High Performance RJ45 Ethernet Patch Cable provides unive
Shipping weight0.11 kg
Package size178 × 165 × 25 mm

Questions about this item

Does the cable come with both RJ45 plugs attached, or must I crimp them myself?

Both ends arrive with RJ45 plugs already fitted, including 50 micron gold-plated contacts, so no crimping tool or separate connectors are required.

Is the 5 ft length rated for the full 10 Gigabit Ethernet distance, or is a longer run needed?

The Cat 6A specification supports 10 Gigabit Ethernet up to 100 meters (328 feet); at 5 ft the cable is well within that limit and will deliver the rated 500 MHz minimum frequency.

Will the 24 AWG stranded copper conductors handle Power over Ethernet without overheating?

The 4-pair UTP 24 AWG stranded pure copper design provides better heat dissipation for PoE applications, and the CM-type PVC jacket meets standard in-wall fire ratings.
