Nippon Labs 60CAT6A-4GN 4 ft Cat6A network ethernet cable
Four-foot Cat6A patch cable with RJ45 connectors for 10 Gigabit Ethernet up to 100 metres
- TypeNetwork Ethernet Cables
- CatCat6A
- Connector ARJ45
- Connector BRJ45
- Length4 ft
- ColorGreen
- Supports 10 Gigabit Ethernet at 500 MHz minimum frequency
- 550 MHz rating enables higher bandwidth for demanding applications

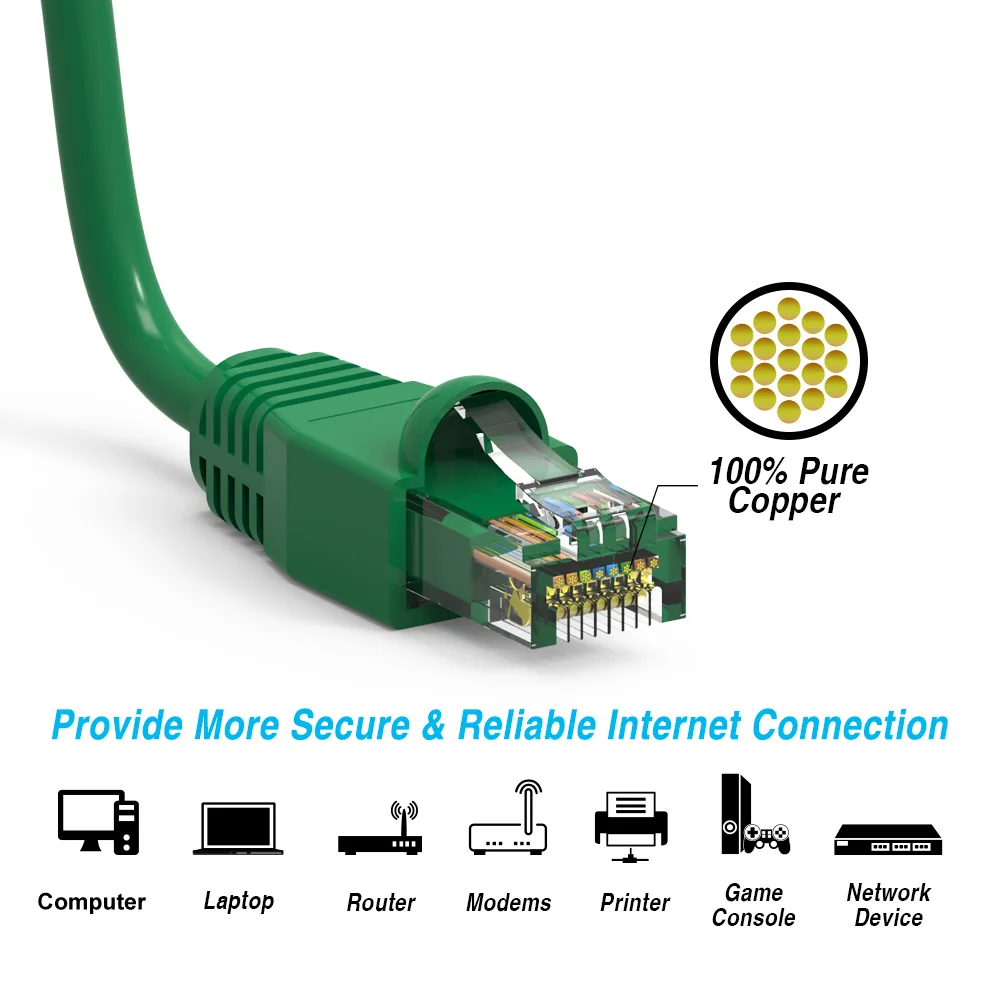

- 24 AWG stranded pure copper conductors ensure reliable signal transmission

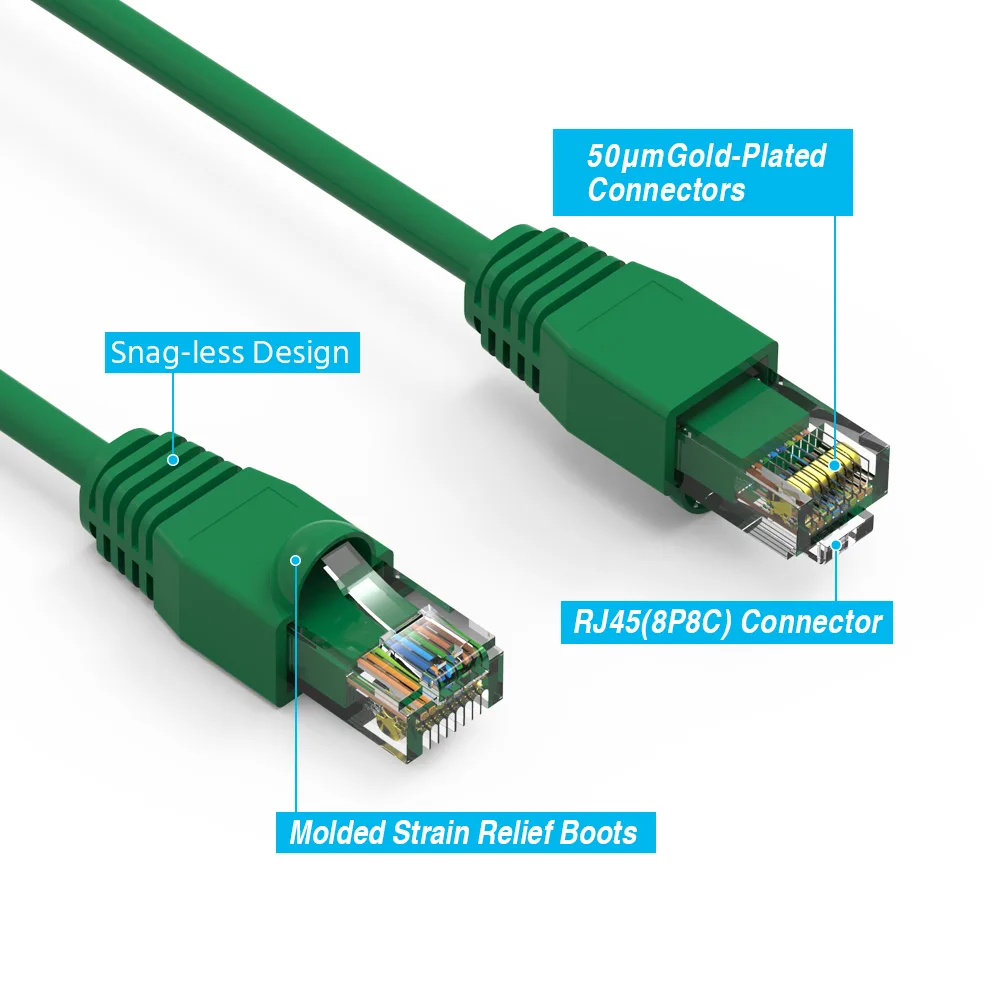

- 50 micron gold-plated RJ45 contacts resist corrosion for lasting connectivity
- Compliant with TIA/EIA standards by UL and ETL for verified performance
Cat6A UTP patch cable 4 ft

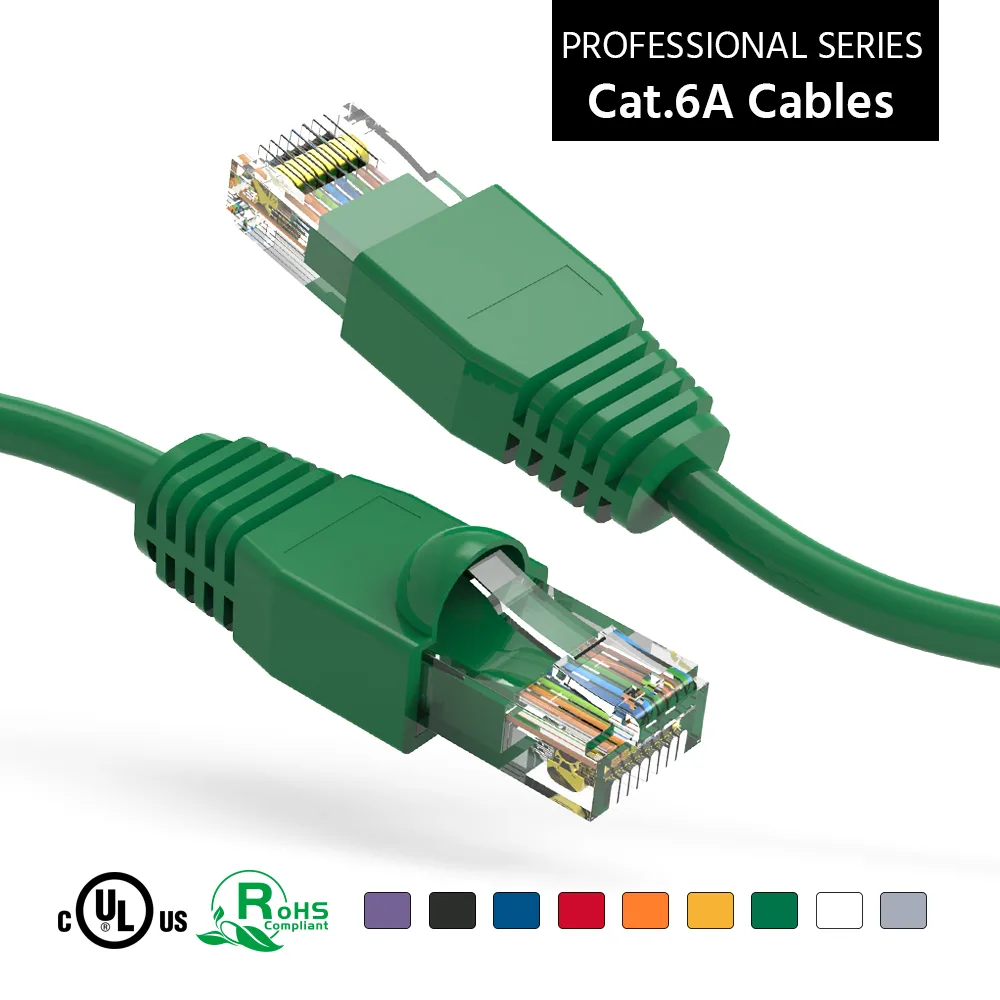

This Nippon Labs 60CAT6A-4GN is a four-foot Cat6A unshielded twisted-pair patch cable with RJ45 connectors on both ends. It uses 24 AWG stranded pure copper conductors and 50 micron gold-plated contacts. The CM-rated PVC jacket is green and the wiring follows the T568B standard. It is certified compliant with TIA/EIA by UL and ETL and meets RoHS requirements.
Upgrade from Cat5e or Cat6 for 10 Gigabit Ethernet
The cable supports 10Base-T, 100Base-T, 1000Base-T and 10000Base-T up to 100 meters. Its 500 MHz minimum frequency and 550 MHz rating provide the bandwidth needed for 10 Gigabit speeds over copper. Crosstalk suppression keeps the signal clean and the design improves heat dissipation for Power over Ethernet applications. The jump is worth it when existing Cat5e or Cat6 links cannot sustain 10 Gbps or when PoE loads run hot.
Suited for short rack
Builders wiring a switch-to-server or switch-to-workstation link at 10 Gigabit will find the four-foot length practical. The stranded conductors make it flexible for tight patches. Buyers who need shielded cable for noisy environments, longer runs beyond four feet, or outdoor-rated jackets should look at something else.
Highlights
- Supports 10 Gigabit Ethernet at 500 MHz minimum frequency
- 550 MHz rating enables higher bandwidth for demanding applications
- 24 AWG stranded pure copper conductors ensure reliable signal transmission
- 50 micron gold-plated RJ45 contacts resist corrosion for lasting connectivity
- Compliant with TIA/EIA standards by UL and ETL for verified performance
Specifications
| Brand | Nippon Labs |
|---|---|
| Model | 60CAT6A-4GN |
| Type | Network Ethernet Cables |
| Cat | Cat6A |
| Connector A | RJ45 |
| Connector B | RJ45 |
| Length | 4 ft |
| Color | Green |
| Shielded | Unshielded Twisted Pair |
| Sports Team | 10 packs |
| Features | Conductor: 4-pair UTP (Unshielded Twisted Pair) 24 AWG stranded pure copper wire Connectors: RJ45 plug with 50 micron gold plating contacts Jacket: CM type PVC Certification: Compliant with TIA/EIA standard by UL and ETL; RoHS Compliant Wiring: T568B standard |
| Shipping weight | 0.10 kg |
| Package size | 152 × 127 × 51 mm |
Questions about this item
What connectors does the 4 ft Cat6A cable use for patch-panel or switch ports?
Both ends have RJ45 plugs with 50 micron gold-plated contacts, matching standard keystone jacks and switch ports.
How is the T568B wiring applied during installation, and what step is often missed?
The cable is pre-terminated to T568B; the common mistake is not seating each plug fully until the latch clicks, which leaves an intermittent connection.
When should the CM-rated PVC jacket be inspected or the cable replaced?
Check the jacket for cracks or kinks after any PoE heating cycles or tight bends; replace if the 24 AWG stranded conductors show fatigue or the gold contacts discolour.
