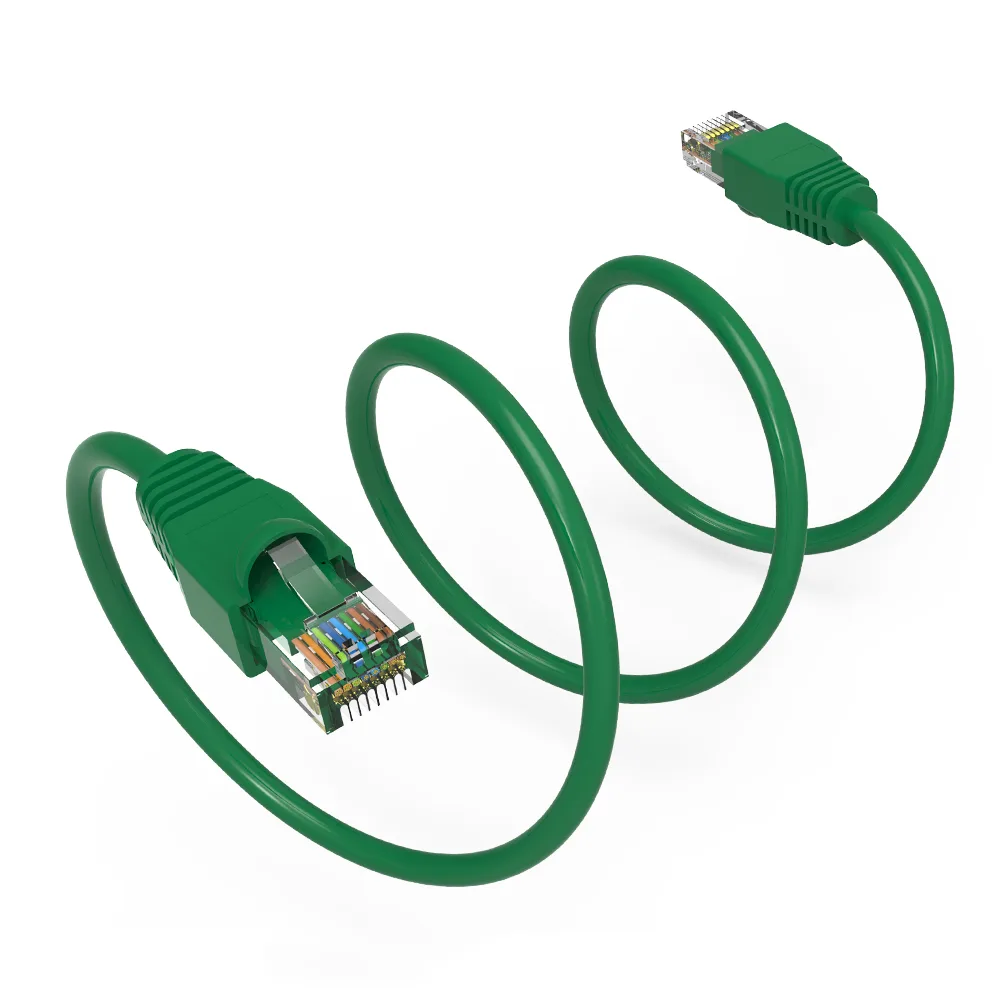

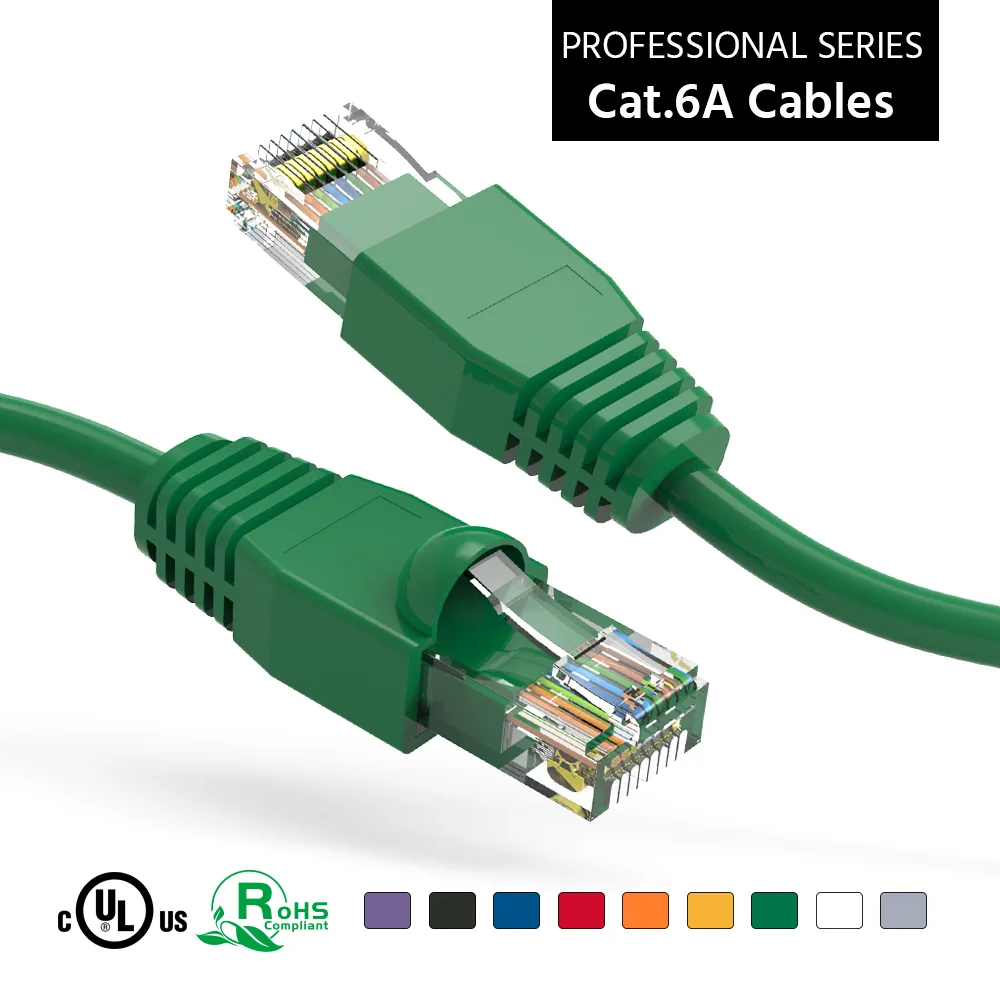

Green 3 ft Cat6A UTP patch cable with RJ45 connectors

Nippon Labs

Nippon Labs 60CAT6A-3GN 3 ft Cat6A network ethernet cable

SKU CH-0KWK-S4FRK MPN 60CAT6A-3GN

A 3 ft Cat6A UTP patch cable with RJ45 connectors, 500 MHz bandwidth and 10 Gigabit Ethernet support

  • TypeNetwork Ethernet Cables
  • CatCat6A
  • Connector ARJ45
  • Connector BRJ45
  • Length3 ft
  • ColorGreen
  • Supports 10 Gigabit Ethernet at 500 MHz minimum frequency

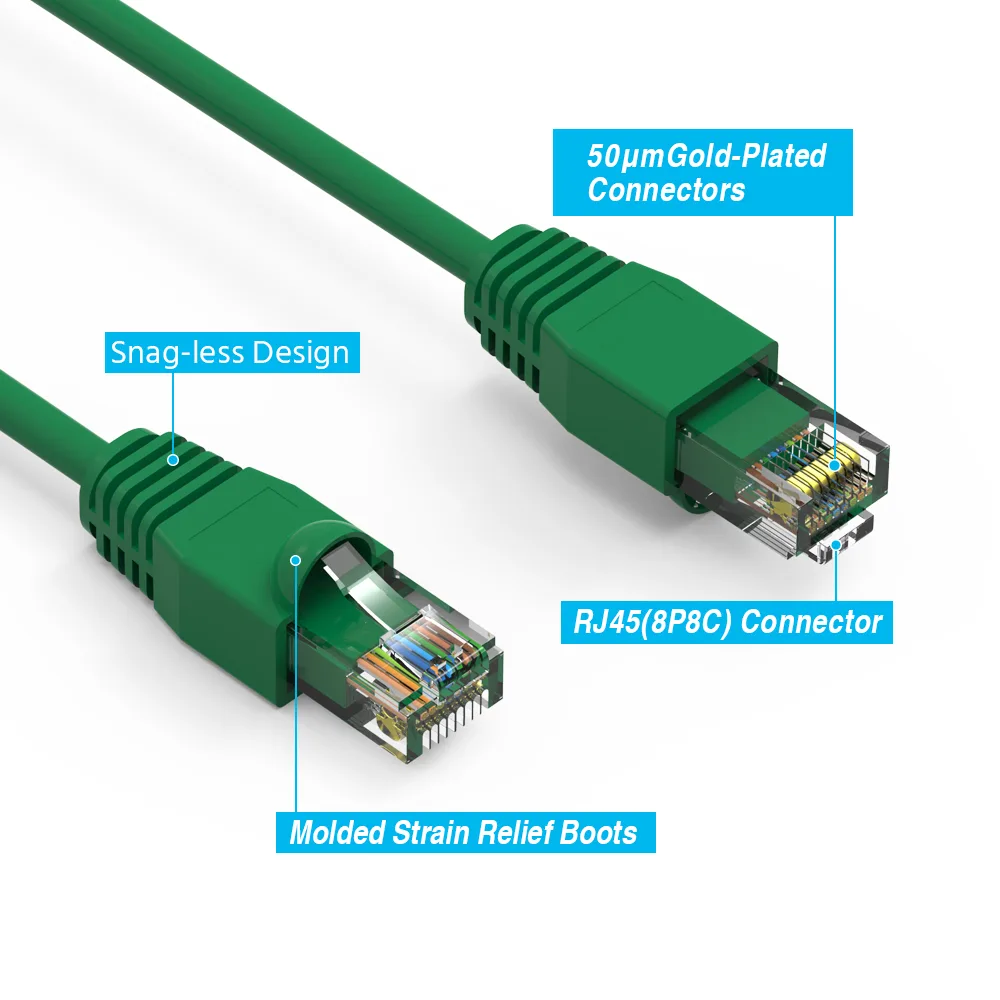

  • 50 micron gold-plated RJ45 contacts resist corrosion for reliable connections

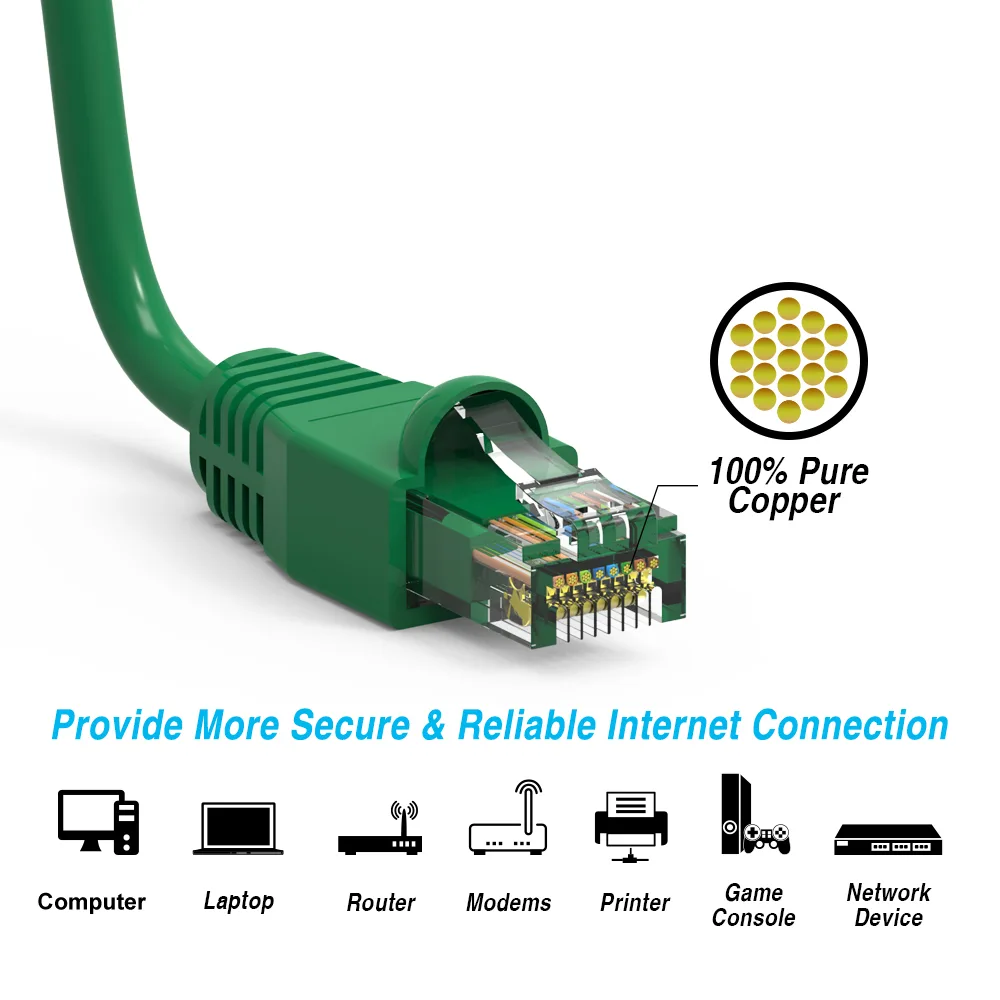

  • 24 AWG stranded pure copper conductors ensure flexible, low-loss signal transmission
  • CM-rated PVC jacket meets in-wall fire safety standards
  • TIA/EIA compliant by UL and ETL with RoHS certification

Network cable for 10 Gigabit Ethernet

This Cat6A UTP patch cable connects routers, switches and workstations using RJ45 plugs on both ends. It is built for 10 Gigabit Ethernet over copper at distances up to 100 meters. The 3 ft green length suits short rack or desk runs. Stranded 24 AWG pure copper conductors keep the link flexible for frequent moves.

Thermals noise and power draw

Passive copper construction means no fan noise, no active cooling and zero power draw from the cable itself. The CM-rated PVC jacket meets standard flame-retardance requirements for in-wall or plenum-adjacent routing. Gold-plated contacts reduce contact resistance, limiting heat rise during sustained PoE loads. Unshielded twisted-pair design relies on pair geometry rather than a foil drain wire.

Deciding specification 500 MHz minimum frequency

The cable is rated for a minimum frequency of 500 MHz and tested to 550 MHz, which is the figure that qualifies it for 10 000Base-T operation. If your link only requires 1 000Base-T, a lower-category cable will also work. Buyers who need shielded construction for high-EMI environments should select an S/FTP alternative. The T568B wiring scheme matches most commercial patch panels.

Highlights

  • Supports 10 Gigabit Ethernet at 500 MHz minimum frequency
  • 50 micron gold-plated RJ45 contacts resist corrosion for reliable connections
  • 24 AWG stranded pure copper conductors ensure flexible, low-loss signal transmission
  • CM-rated PVC jacket meets in-wall fire safety standards
  • TIA/EIA compliant by UL and ETL with RoHS certification

Specifications

BrandNippon Labs
Model60CAT6A-3GN
TypeNetwork Ethernet Cables
CatCat6A
Connector ARJ45
Connector BRJ45
Length3 ft
ColorGreen
ShieldedUnshielded Twisted Pair
Sports Team10 packs
FeaturesConductor: 4-pair UTP (Unshielded Twisted Pair) 24 AWG stranded pure copper wire
Connectors: RJ45 plug with 50 micron gold plating contacts
Jacket: CM type PVC
Certification: Compliant with TIA/EIA standard by UL and ETL; RoHS Compliant
Wiring: T568B standard
Shipping weight0.09 kg
Package size152 × 127 × 51 mm

Questions about this item

How do I install the 3 ft Cat6A cable with RJ45 connectors using the T568B wiring standard?

Plug each RJ45 connector into the matching port until the tab clicks; the cable is pre-terminated to T568B so no crimping is needed — just avoid sharp bends tighter than four times the cable diameter.

Will the 50 micron gold-plated contacts or the CM-rated PVC jacket need replacement first in a typical office?

The CM-rated PVC jacket usually shows wear before the gold-plated contacts; inspect for cracks or kinks after moves and replace the whole cable if the sheath is damaged.

What is the first limit reached when running 10 Gigabit Ethernet continuously over the 3 ft length?

The 500 MHz minimum frequency rating and 550 MHz bandwidth ceiling are the governing limits; the short 3 ft run stays well within the 100 m channel maximum so distance is not the bottleneck.
