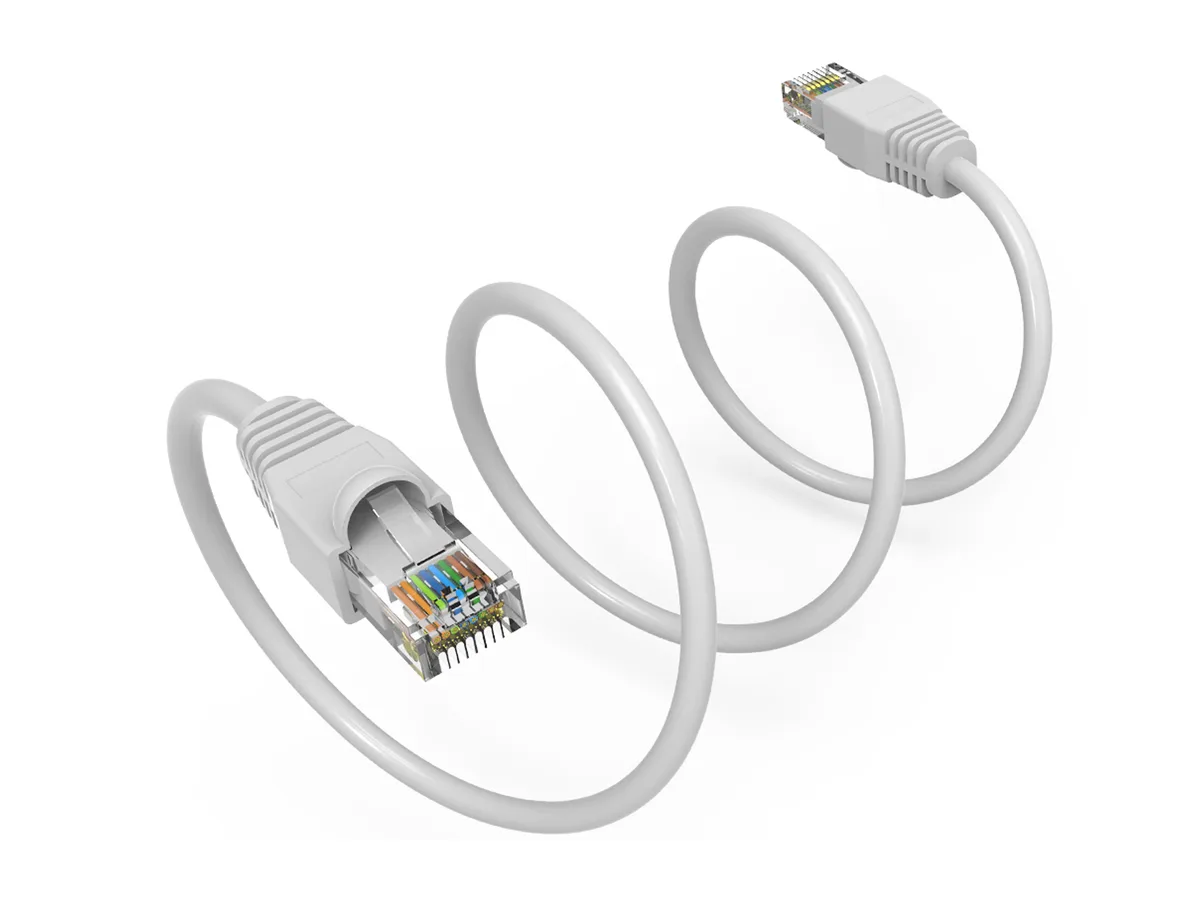

White Cat 6A Ethernet cable, 20 ft, RJ45 connectors with molded boots

Nippon Labs

Nippon Labs 60CAT6A-20WT network ethernet cable Cat 6A 20 ft 24 AWG White

SKU CH-HTHB-DPTYX MPN 60CAT6A-20WT

20 ft Cat 6A UTP patch cable with RJ45 connectors supports 10 Gigabit Ethernet at 500 MHz over 24 AWG copper

  • TypeNetwork Ethernet Cables
  • Cat6A
  • Connector ARJ45
  • Connector BRJ45
  • Length20 ft.
  • ColorWhite
  • Supports 10 Gigabit Ethernet up to 100 metres
  • Operates at a minimum frequency of 500 MHz for high data rates

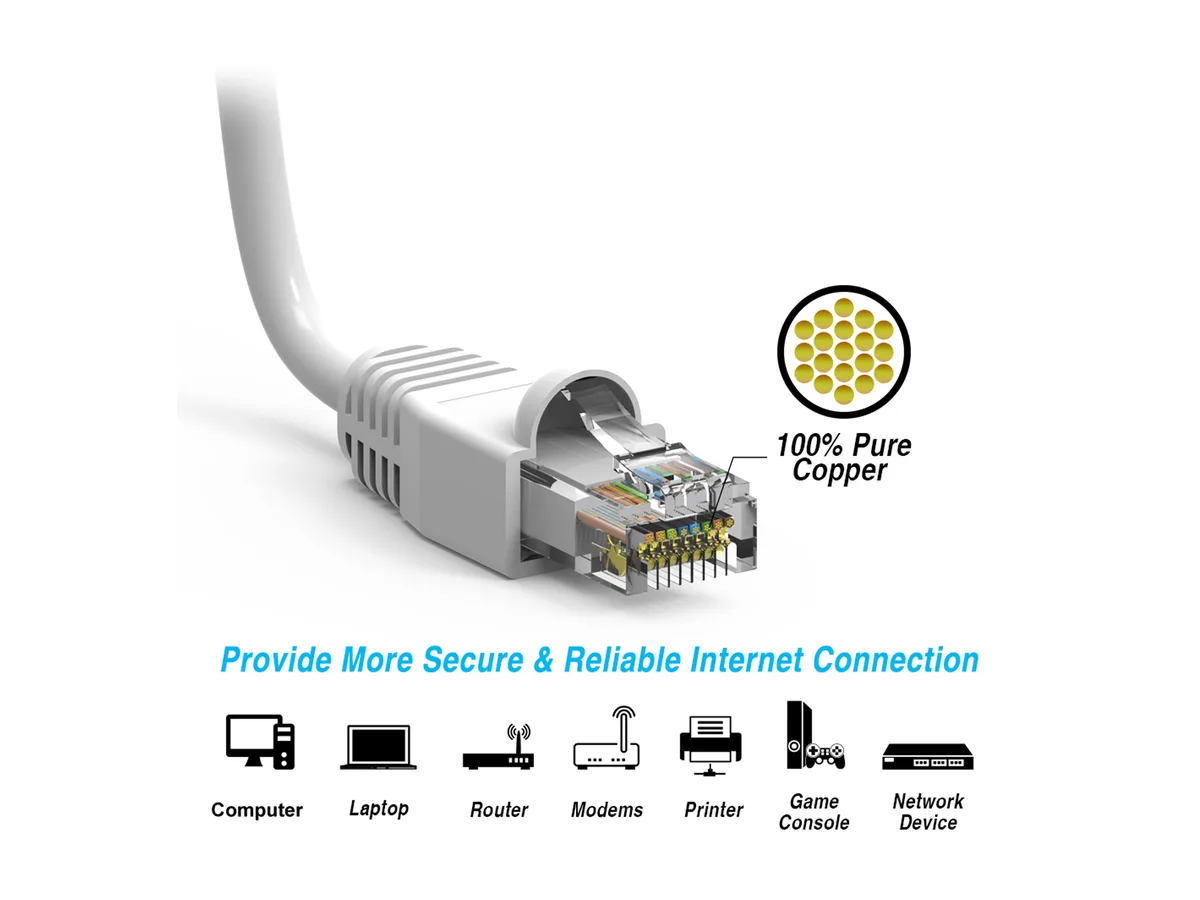

  • UTP design with 24 AWG stranded pure copper conductors

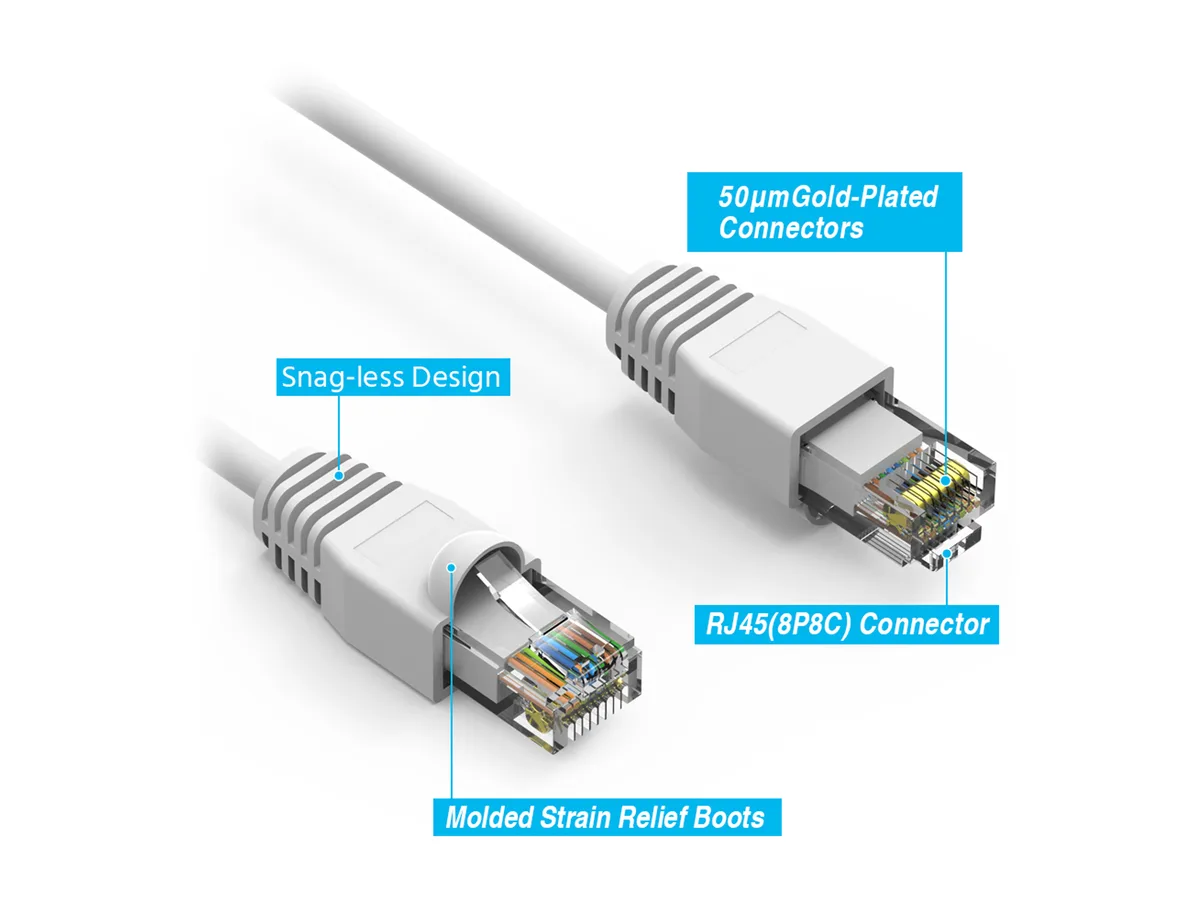

  • Gold-plated contacts and snagless boots resist corrosion and ensure secure fit
  • Compliant with TIA/EIA standards by UL and ETL; RoHS compliant

Nippon Labs Cat 6A UTP Cable

The Nippon Labs 60CAT6A-20WT is a 20 ft Cat 6A unshielded twisted-pair patch cable with RJ45 connectors on both ends. It is built for 10 Gigabit Ethernet links up to 100 metres and operates at a minimum frequency of 500 MHz. The white CM-rated PVC jacket houses 24 AWG stranded pure copper conductors wired to the T568B standard. Gold-plated contacts and snagless moulded boots protect the connection.

Upgrade from Cat 5e or Cat 6

This cable replaces Cat 5e or standard Cat 6 runs when 10 Gigabit Ethernet throughput is required over copper. The 500 MHz rating and improved crosstalk suppression support 10,000Base-T speeds that older categories cannot guarantee. The jump is worth it when network hardware and switch ports are already 10 GbE-capable and the link distance stays within the 100 metre channel limit.

Suited for 10 GbE patching.

The cable suits installers wiring servers, routers, switches or NAS units in home labs, offices or rack cabinets where unshielded Cat 6A meets code. Builders who need shielded or outdoor-rated cable, or who require lengths beyond the 100 metre channel maximum, should look at a different product.

Highlights

  • Supports 10 Gigabit Ethernet up to 100 metres
  • Operates at a minimum frequency of 500 MHz for high data rates
  • UTP design with 24 AWG stranded pure copper conductors
  • Gold-plated contacts and snagless boots resist corrosion and ensure secure fit
  • Compliant with TIA/EIA standards by UL and ETL; RoHS compliant

Specifications

BrandNippon Labs
Model60CAT6A-20WT
TypeNetwork Ethernet Cables
Cat6A
Connector ARJ45
Connector BRJ45
Length20 ft.
ColorWhite
ShieldedNo
Wire Gauge24 AWG
FeaturesCat.6A patch cable is used in network applications such as 10Base-T, 100Base-T, 1000Base-T, 10,000Base-T Ethernet up to 100 meters (328 feet).
They are designed specifically for 10 Gigabit Ethernet applications over copper.
They perform at high-data transfer rates and operate at a minimum frequency of 500 MHz.
These cables deliver improved performance over standard Cat.6 cables.
Compliant with TIA/EIA standard by UL and ETL; RoHS Compliant
4-pair UTP (Unshielded Twisted Pair) 24 AWG stranded pure copper wire & T568B standard
High Performance RJ45 Ethernet Patch Cable provides univers
Shipping weight0.38 kg
Package size229 × 178 × 51 mm

Questions about this item

Will the 20 ft RJ45 Cat 6A cable reach from a floor-mounted switch to a ceiling-mounted access point?

The cable is 20 ft long, so measure the exact path including vertical runs and service loops before deciding if it reaches.

How do I seat the gold-plated RJ45 plugs on this Cat 6A cable without damaging the snagless boot?

Align the tab, push straight in until the connector clicks, then pull gently to confirm the latch engaged; the molded boot protects the latch during removal.

When should I replace this 24 AWG UTP Cat 6A patch cable in a PoE installation?

Replace it if the jacket shows cracks, the boot tears, the latch fails to hold, or PoE devices report power negotiation errors indicating conductor fatigue.
