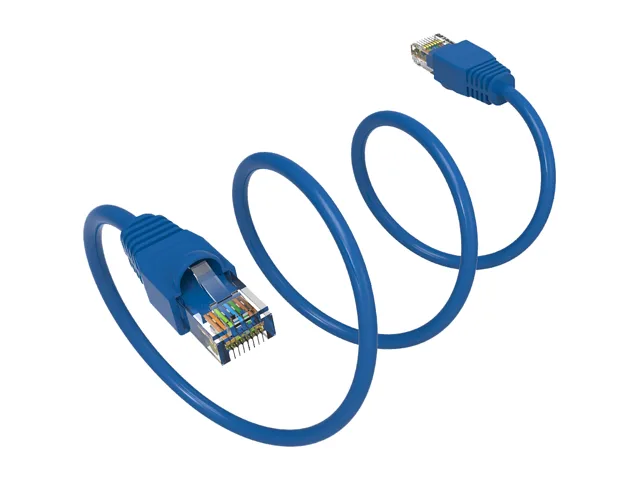

Blue RJ45 Cat6A ethernet cable with booted connectors, 20 ft length

Nippon Labs

Nippon Labs 60CAT6A-20BL Cat6A network ethernet cable 20 ft Blue 24 AWG UTP

SKU CH-5CG4-5YG88 MPN 60CAT6A-20BL

A 20-foot Cat6A UTP patch cable with RJ45 connectors rated for 10 Gigabit Ethernet at 500 MHz

  • TypeNetwork Ethernet Cables
  • Cat6A
  • Connector ARJ45
  • Connector BRJ45
  • Length20 ft.
  • ColorBlue
  • Supports 10 Gigabit Ethernet over 20 ft Cat6A
  • 500 MHz bandwidth enables 10000Base-T speeds
  • 24 AWG stranded copper ensures reliable signal
  • Gold-plated RJ45 contacts resist corrosion
  • UL and ETL verified TIA/EIA compliance

20 ft Cat6A patch cable for 10 Gigabit links

This 20-foot Cat6A UTP cable uses 24 AWG stranded pure copper conductors and RJ45 plugs with 50-micron gold contacts. It is built for installers and network managers who need reliable 10 Gigabit Ethernet runs up to the full 100-metre channel limit. The CM-rated PVC jacket meets in-wall fire codes for permanent installation.

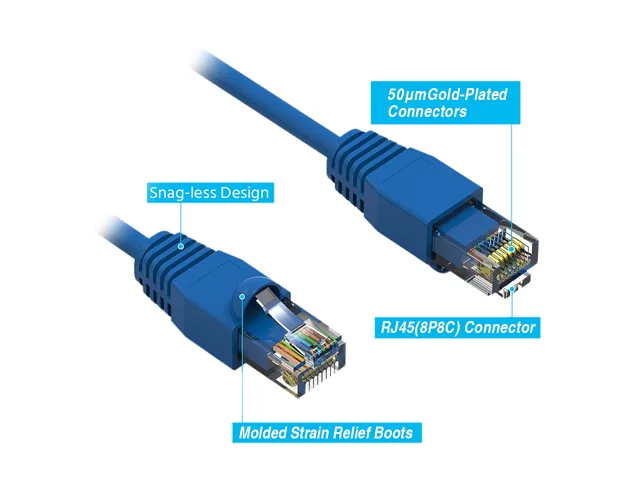

Boots and gold contacts protect the connection

Moulded strain-relief boots stop the latch from snagging and reduce bend stress at the plug during pulls and patch-panel changes. Gold-plated pins resist oxidation in humid rack environments so contact resistance stays low over years of mating cycles. T568B wiring matches the dominant pin-out in commercial structured cabling.

UTP design limits noise immunity in harsh EMI

Unshielded twisted pair relies on pair balance rather than a foil or braid screen so strong electromagnetic fields from motors or fluorescent ballasts can degrade the 500 MHz signal margin. The cable is rated to 100 metres for 10GBASE-T but alien crosstalk between adjacent bundles becomes the practical bottleneck in dense cable trays. PoE heating is mitigated by the 24 AWG copper but bundle size still caps power delivery.

Highlights

  • Supports 10 Gigabit Ethernet over 20 ft Cat6A
  • 500 MHz bandwidth enables 10000Base-T speeds
  • 24 AWG stranded copper ensures reliable signal
  • Gold-plated RJ45 contacts resist corrosion
  • UL and ETL verified TIA/EIA compliance

Specifications

BrandNippon Labs
Model60CAT6A-20BL
TypeNetwork Ethernet Cables
Cat6A
Connector ARJ45
Connector BRJ45
Length20 ft.
ColorBlue
ShieldedUTP
Wire Gauge24 AWG
FeaturesCat.6A patch cable is used in network applications such as 10Base-T, 100Base-T, 1000Base-T, 10,000Base-T Ethernet up to 100 meters (328 feet).
They are designed specifically for 10 Gigabit Ethernet applications over copper.
They perform at high-data transfer rates and operate at a minimum frequency of 500 MHz.
These cables deliver improved performance over standard Cat.6 cables.
Compliant with TIA/EIA standard by UL and ETL; RoHS Compliant.
4-pair UTP (Unshielded Twisted Pair) 24 AWG stranded pure copper wire & T568B standard.
High Performance RJ45 Ethernet Patch Cable provides unive
Shipping weight0.27 kg
Package size188 × 188 × 28 mm

Questions about this item

Will the RJ45 connectors with 50 micron gold plating contacts need replacement over time?

The RJ45 connectors use 50 micron gold plating on contacts, which resists corrosion and wear; under normal use the cable itself does not require connector replacement.

What is the maximum frequency the 24 AWG stranded pure copper conductors can sustain before signal degradation?

The Cat6A cable is rated for a minimum frequency of 500 MHz and supports 550 MHz bandwidth, which is the limit that appears first under sustained high-speed data transfer.

Does the CM type PVC jacket affect heat buildup when the cable carries PoE power all day?

The CM type PVC jacket provides better heat dissipation for PoE applications, helping to manage temperature during continuous operation.
