Short blue Cat6A patch cable with booted RJ45 connectors on both ends

Nippon Labs

Nippon Labs 60CAT6A-1BL network ethernet cable Cat6A 1 ft Blue UTP 24AWG RJ45

SKU CH-0C1M-ET1VY MPN 60CAT6A-1BL

Cat6A UTP patch cable supports 10 Gigabit Ethernet at 500 MHz with gold-plated RJ45 connectors and 24 AWG stranded copper conductors

  • TypeNetwork Ethernet Cables
  • Cat6A
  • Connector ARJ45
  • Connector BRJ45
  • Length1 ft.
  • ColorBlue
  • Supports 10 Gigabit Ethernet up to 100 metres
  • Cat 6A rating with 500 MHz minimum frequency
  • 24 AWG stranded pure copper conductors for reliable signal
  • 50 micron gold-plated RJ45 contacts resist corrosion
  • UL and ETL verified TIA/EIA compliant with RoHS

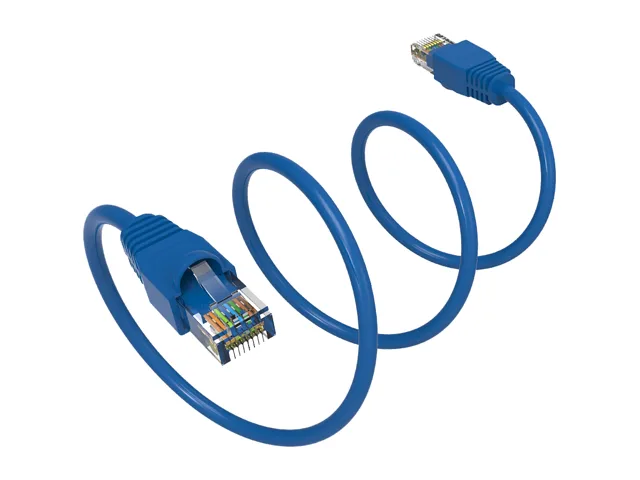

1 ft Cat6A patch cable

This 1 ft Cat6A UTP patch cable uses 24 AWG stranded copper conductors and RJ45 connectors with 50 micron gold contacts. It is built for 10 Gigabit Ethernet links up to 100 meters and operates at a minimum frequency of 500 MHz. The blue CM-rated PVC jacket follows T568B wiring.

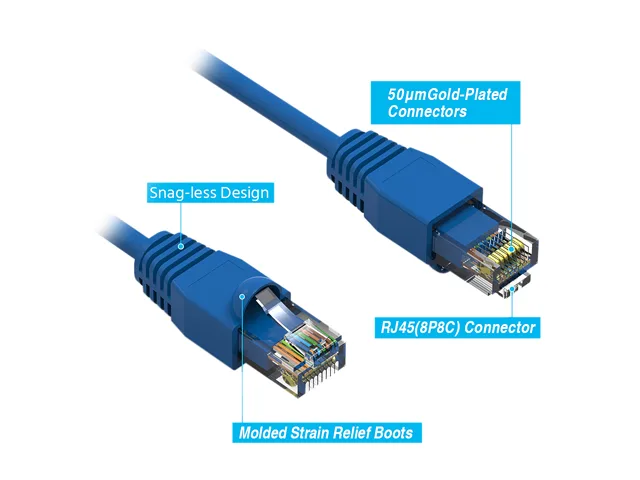

Booted connectors and gold contacts

The booted RJ45 plugs protect the latch during repeated insertions and the 50 micron gold plating resists corrosion on the contact surfaces. UTP construction with 4-pair twisted copper suppresses crosstalk for a clean signal. RoHS compliance and UL/ETL verification confirm the materials meet TIA/EIA standards.

100 metre channel limit for 10GBASE-T

Cat6A supports 10,000Base-T only when the complete channel stays within 100 meters (328 feet). This 1 ft cable consumes a tiny fraction of that budget but cannot extend the limit. PoE applications benefit from better heat dissipation, yet the cable alone does not guarantee power delivery beyond the standard's negotiated classes.

Highlights

  • Supports 10 Gigabit Ethernet up to 100 metres
  • Cat 6A rating with 500 MHz minimum frequency
  • 24 AWG stranded pure copper conductors for reliable signal
  • 50 micron gold-plated RJ45 contacts resist corrosion
  • UL and ETL verified TIA/EIA compliant with RoHS

Specifications

BrandNippon Labs
Model60CAT6A-1BL
TypeNetwork Ethernet Cables
Cat6A
Connector ARJ45
Connector BRJ45
Length1 ft.
ColorBlue
ShieldedUTP
Wire Gauge24 AWG
FeaturesCat.6A patch cable is used in network applications such as 10Base-T, 100Base-T, 1000Base-T, 10,000Base-T Ethernet up to 100 meters (328 feet).
They are designed specifically for 10 Gigabit Ethernet applications over copper.
They perform at high-data transfer rates and operate at a minimum frequency of 500 MHz.
These cables deliver improved performance over standard Cat.6 cables.
Compliant with TIA/EIA standard by UL and ETL; RoHS Compliant.
4-pair UTP (Unshielded Twisted Pair) 24 AWG stranded pure copper wire & T568B standard.
High Performance RJ45 Ethernet Patch Cable provides unive
Shipping weight0.06 kg
Package size152 × 127 × 25 mm

Questions about this item

Will the 24 AWG stranded copper conductors or the RJ45 connectors need replacement under normal use?

The stranded 24 AWG pure copper conductors and 50 micron gold plated RJ45 contacts are built for repeated flexing and mating cycles, so neither the cable core nor the connectors require scheduled replacement.

What is the first performance limit reached when running 10 Gigabit Ethernet continuously over this 1 ft patch cable?

The cable is rated to 550 MHz and supports 10,000Base-T up to 100 metres, so a 1 ft length will not hit a bandwidth or distance limit before the connected switch or NIC does.

Does the CM grade PVC jacket or UTP construction cause noticeable heat build-up when carrying PoE+ loads all day?

The 24 AWG copper pairs and CM PVC jacket are specified for better heat dissipation in PoE applications, keeping temperature rise low even with sustained power delivery.
