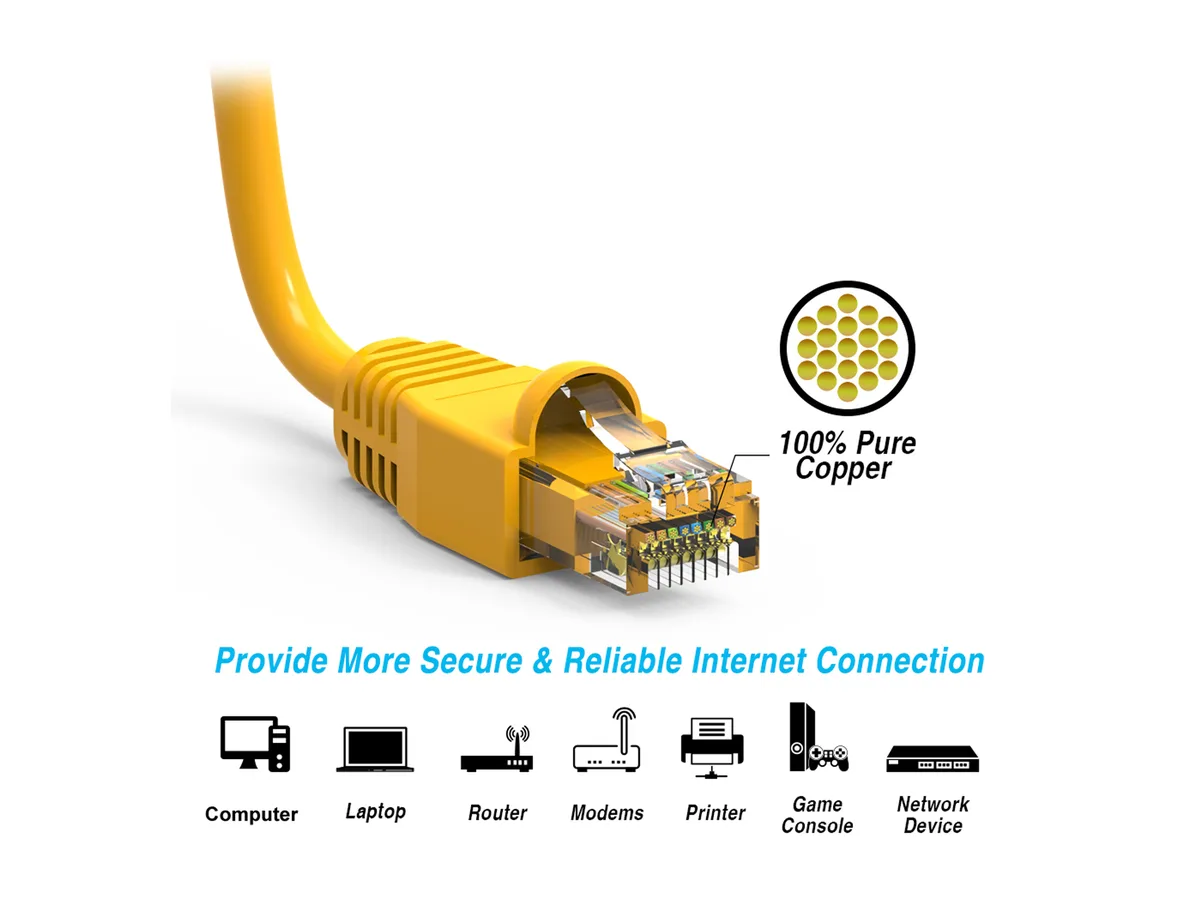

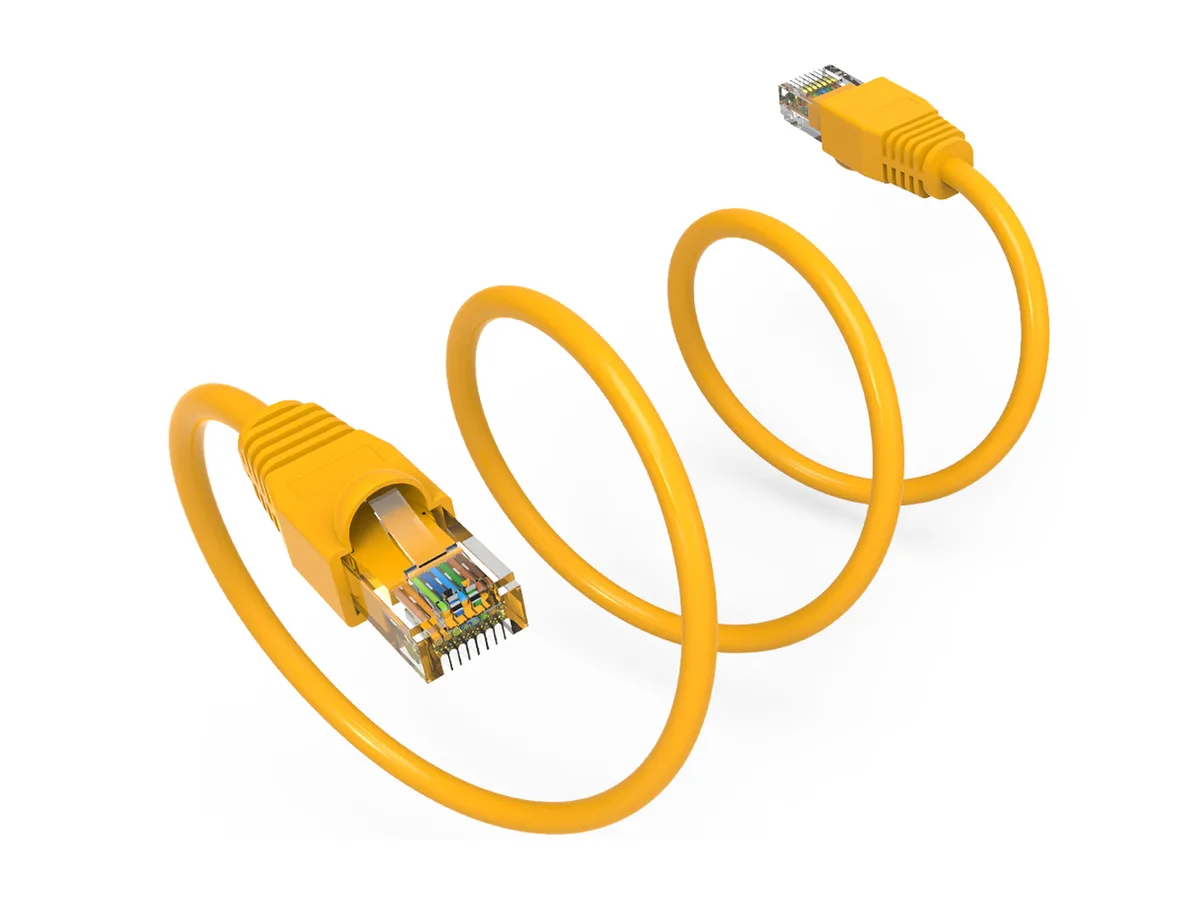

Yellow Cat6A UTP ethernet cable with booted RJ45 connectors, 100 ft length

Nippon Labs

Nippon Labs 60CAT6A-100YW Cat6A UTP network ethernet cable 100 ft yellow

SKU CH-SFAH-RCV6F MPN 60CAT6A-100YW

100-foot Cat6A UTP patch cable supports 10 Gigabit Ethernet at 500 MHz with gold-plated RJ45 connectors

  • TypeNetwork Ethernet Cables
  • Cat6A
  • Connector ARJ45
  • Connector BRJ45
  • Length100 ft.
  • ColorYellow
  • Supports 10 Gigabit Ethernet over copper up to 328 feet
  • Operates at a minimum frequency of 500 MHz for high data rates
  • 24 AWG stranded pure copper conductors with gold-plated contacts
  • TIA/EIA compliant by UL and ETL plus RoHS compliant

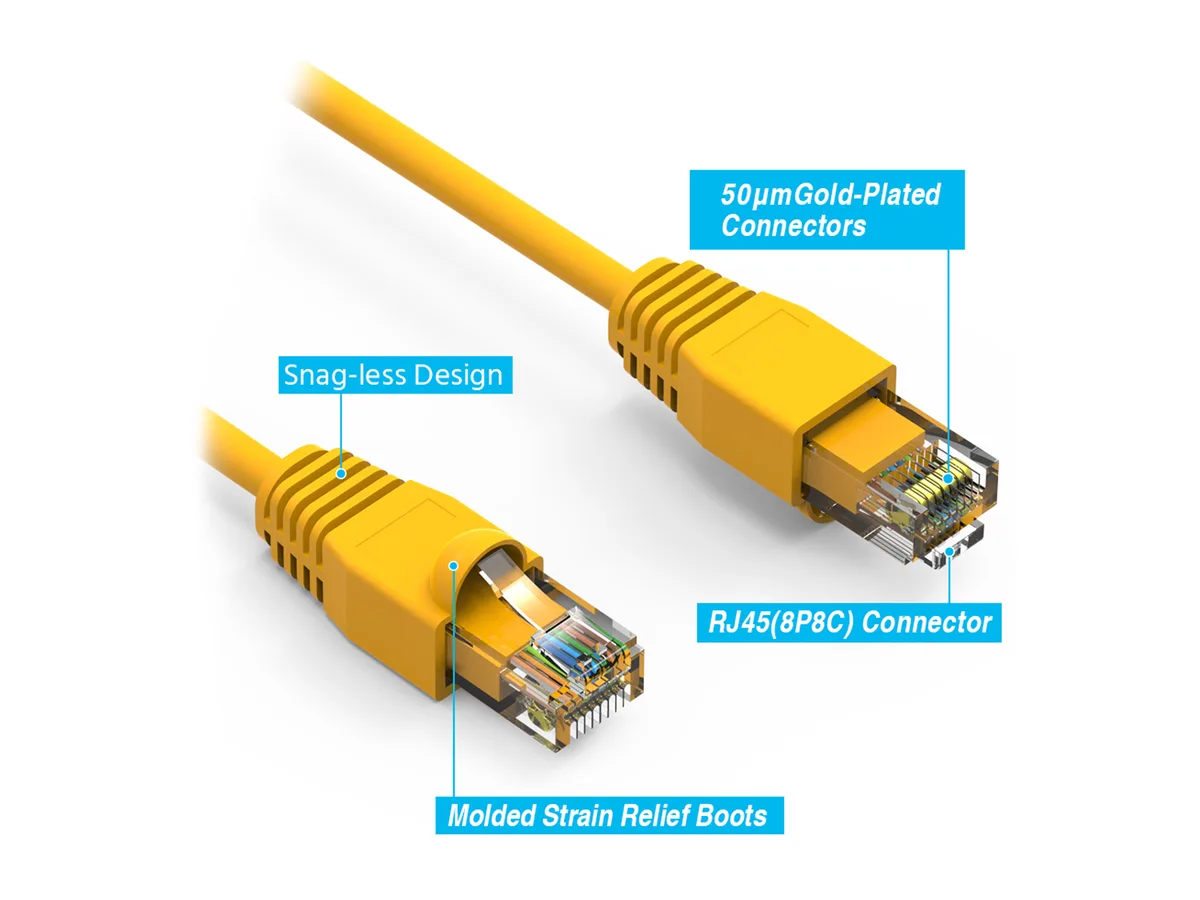

  • Snagless boots and strain relief ensure a durable secure connection

100 ft Cat6A UTP patch cable

This 100 ft Cat6A UTP patch cable uses 24 AWG stranded pure copper conductors with RJ45 connectors on both ends. It is built for 10 Gigabit Ethernet over copper up to 100 metres (328 feet) and operates at a minimum frequency of 500 MHz. The yellow CM‑type PVC jacket and snagless boots suit indoor LAN runs.

Sustained 10 GbE throughput

The cable is rated for 550 MHz bandwidth and supports 10,000Base‑T, 1000Base‑T, 100Base‑T and 10Base‑T without signal degradation over the full 100 ft length. Gold‑plated contacts and T568B wiring maintain low crosstalk and stable performance during continuous high‑data‑rate transfers.

Upgrade from Cat5e or Cat6 links

Replacing Cat5e or standard Cat6 patch cords with this Cat6A cable enables 10 Gigabit Ethernet where older categories limit you to 1 Gigabit. The jump is worth it when your switch, router or server ports are 10 GbE capable and you need the 500 MHz headroom for PoE heat dissipation and clean signal integrity.

Highlights

  • Supports 10 Gigabit Ethernet over copper up to 328 feet
  • Operates at a minimum frequency of 500 MHz for high data rates
  • 24 AWG stranded pure copper conductors with gold-plated contacts
  • TIA/EIA compliant by UL and ETL plus RoHS compliant
  • Snagless boots and strain relief ensure a durable secure connection

Specifications

BrandNippon Labs
Model60CAT6A-100YW
TypeNetwork Ethernet Cables
Cat6A
Connector ARJ45
Connector BRJ45
Length100 ft.
ColorYellow
ShieldedNo
FeaturesCat.6A patch cable is used in network applications such as 10Base-T, 100Base-T, 1000Base-T, 10,000Base-T Ethernet up to 100 meters (328 feet).
They are designed specifically for 10 Gigabit Ethernet applications over copper.
They perform at high-data transfer rates and operate at a minimum frequency of 500 MHz.
These cables deliver improved performance over standard Cat.6 cables.
Compliant with TIA/EIA standard by UL and ETL; RoHS Compliant
4-pair UTP (Unshielded Twisted Pair) 24 AWG stranded pure copper wire & T568B standard
High Performance RJ45 Ethernet Patch Cable provides univers
Shipping weight1.63 kg
Package size279 × 203 × 127 mm

Questions about this item

How much power does the 100 ft Cat6A cable draw when running 10 Gigabit Ethernet all day?

The cable is passive and draws no power itself; it simply carries data and any PoE current the connected equipment supplies.

What devices must I already have to use the RJ45 connectors on this 24 AWG stranded copper patch cable?

You need two pieces of equipment with standard RJ45 ports — such as a router, switch, server, PC or network media player — that support 10/100/1000/10000Base-T Ethernet.

Will the 500 MHz rated Cat6A cable work reliably alongside my older Cat5e patch cords in the same network?

Yes; the Cat6A cable is backward compatible with 10Base-T, 100Base-T and 1000Base-T, so it operates correctly when mixed with Cat5e or Cat6 links.
