Green Cat6A UTP ethernet cable, 100 ft, RJ45 connectors on both ends

Nippon Labs

Nippon Labs 60CAT6A-100GN Cat6A network ethernet cable 100 ft Green

SKU CH-WN6T-76HE6 MPN 60CAT6A-100GN

Cat6A UTP patch cable with 100 ft stranded copper, 500 MHz bandwidth and gold-plated RJ45 connectors for 10 Gigabit Ethernet

  • TypeNetwork Ethernet Cables
  • CatCat6A
  • Connector ARJ45
  • Connector BRJ45
  • Length100 ft
  • ColorGreen
  • Supports 10 Gigabit Ethernet at 500 MHz minimum frequency
  • 100 ft length reaches devices across large rooms or floors
  • 50 micron gold-plated RJ45 contacts resist corrosion for lasting signal quality
  • Stranded pure copper conductors ensure flexibility and reliable data transmission
  • CM-rated PVC jacket meets in-wall fire safety standards

Cat6A 100 ft UTP cable

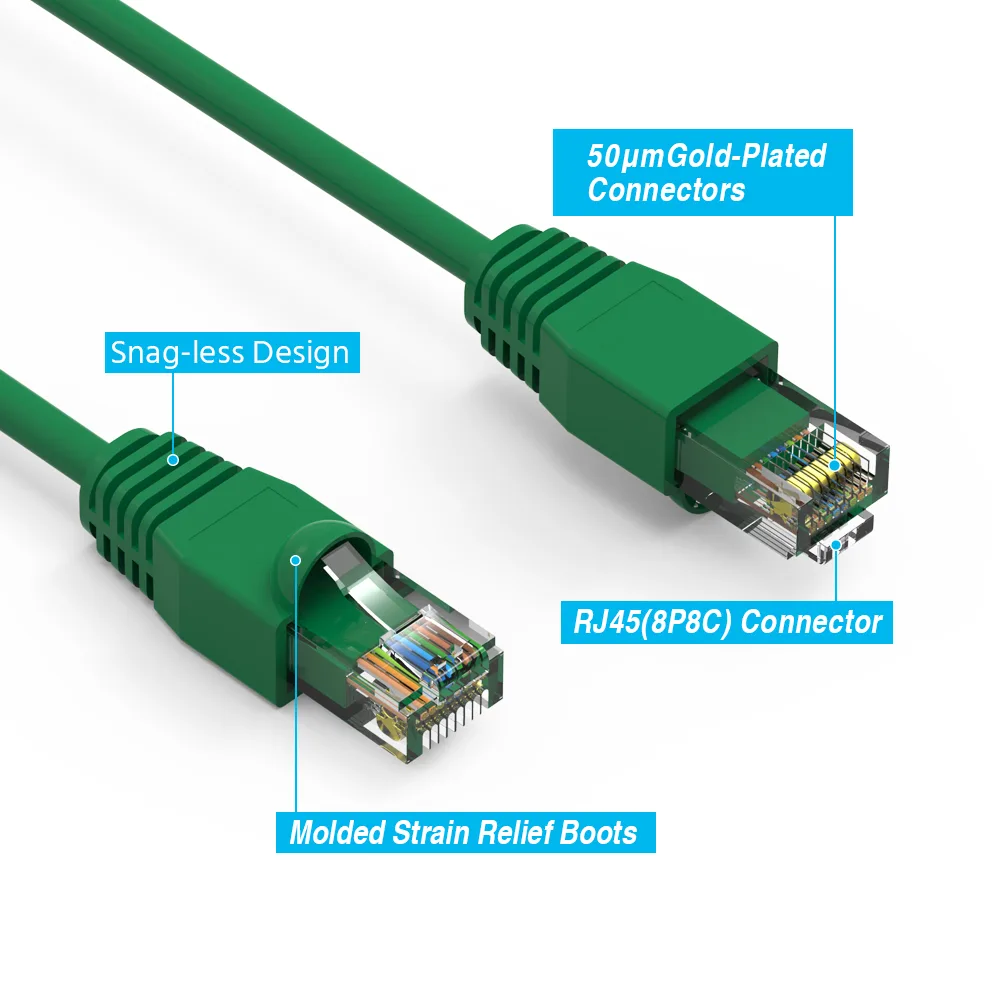

This 100 ft Cat6A unshielded twisted-pair cable uses 24 AWG stranded pure copper conductors and RJ45 plugs with 50 micron gold-plated contacts. It is wired to the T568B standard and covered by a CM-rated PVC jacket. The construction supports 10 Gigabit Ethernet over copper at frequencies up to 550 MHz. It suits installers and network builders who need a long, standards-compliant patch lead for structured cabling.

Thermals noise and power draw

As a passive copper cable it generates no noise and draws no power of its own. The 24 AWG stranded conductors and unshielded design allow heat from Power over Ethernet loads to dissipate along the 100 ft length without active cooling. No fan, pump or external supply is involved, so acoustic output is zero and thermal load on the rack is negligible.

10 Gigabit Ethernet support

The single specification that decides suitability is the 550 MHz bandwidth rating that enables 10,000Base-T operation up to 100 meters (328 ft). If the installation requires only 1000Base-T or slower speeds, a lower-category cable would also work, so buyers who do not need 10 Gigabit headroom can choose a less expensive option. The cable is certified to TIA/EIA standards by UL and ETL and is RoHS compliant.

Highlights

  • Supports 10 Gigabit Ethernet at 500 MHz minimum frequency
  • 100 ft length reaches devices across large rooms or floors
  • 50 micron gold-plated RJ45 contacts resist corrosion for lasting signal quality
  • Stranded pure copper conductors ensure flexibility and reliable data transmission
  • CM-rated PVC jacket meets in-wall fire safety standards

Specifications

BrandNippon Labs
Model60CAT6A-100GN
TypeNetwork Ethernet Cables
CatCat6A
Connector ARJ45
Connector BRJ45
Length100 ft
ColorGreen
ShieldedUnshielded Twisted Pair
Sports Team10 packs

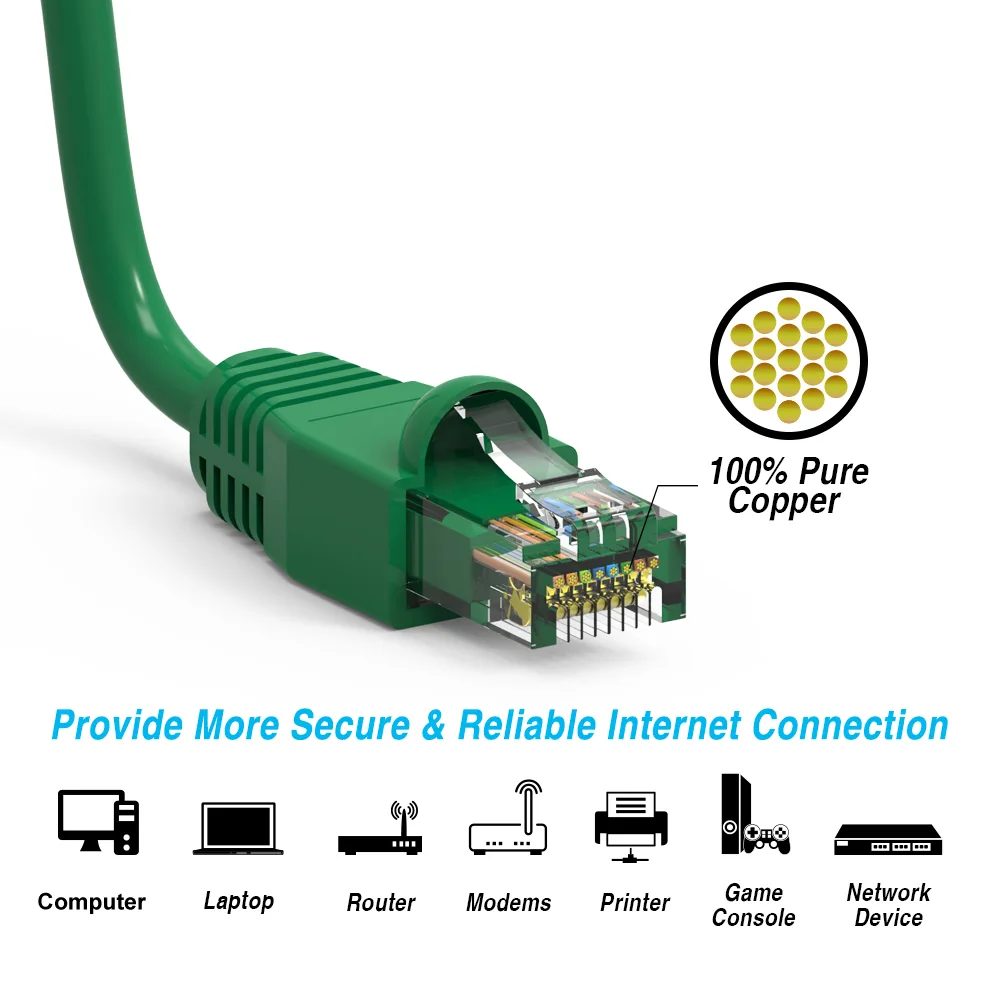

FeaturesConductor: 4-pair UTP (Unshielded Twisted Pair) 24 AWG stranded pure copper wire
Connectors: RJ45 plug with 50 micron gold plating contacts
Jacket: CM type PVC
Certification: Compliant with TIA/EIA standard by UL and ETL; RoHS Compliant
Wiring: T568B standard
Shipping weight2.04 kg
Package size279 × 203 × 127 mm

Questions about this item

How do I route the 100 ft stranded UTP cable through tight bends without kinking the 24 AWG pairs?

Keep bends wider than four times the cable diameter, pull slowly using a fish tape, and avoid stapling directly on the jacket — use loose cable ties instead.

Will the 50 micron gold-plated RJ45 contacts need cleaning or replacement after repeated PoE cycles?

The gold plating resists oxidation; wipe contacts with isopropyl alcohol if they look dull, but replacement is rarely needed unless the latch tab breaks.

At what point does the 550 MHz rating limit 10 Gigabit throughput on this 100 ft run?

The cable meets Cat6A specs up to 100 meters, so 100 ft stays well within the 500 MHz minimum and 550 MHz tested bandwidth for 10GBASE-T.
