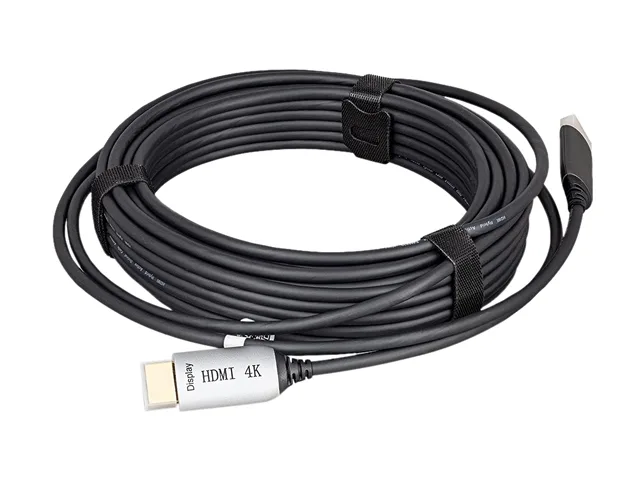

Black 100 ft active optical HDMI cable with directional metal connectors

Nippon Labs

Nippon Labs 30HM210HM-PAOC4K-100 100 ft hdmi cable

SKU CH-ERNH-XZHYS MPN 30HM210HM-PAOC4K-100

A 100 ft hybrid active optical HDMI cable supporting 4K at 60 Hz and 18 Gbps bandwidth with plenum-rated construction for in-wall installation

  • TypeHDMI Cables
  • ColorBlack
  • Cable Length100 ft.
  • Connect FromHDMI Type A Male Metal Grey (Source)
  • Connect ToHDMI Type A Male Metal Sliver (Display)
  • Terminal GenderMale to Male
  • Plenum-rated CMP jacket allows installation in air-handling spaces
  • Active optical fiber delivers 4K 60 Hz 18 Gbps over 100 ft
  • Gold-plated HDMI connectors resist corrosion for lasting signal quality
  • Directional source and display ends ensure correct one-way setup
  • Hybrid copper-fiber construction reduces EMI and RFI interference

Nippon Labs 100 ft Hybrid AOC

The Nippon Labs 30HM210HM-PAOC4K-100 is a 100 ft Hybrid Active Optical HDMI cable built for installers who need reliable 4K 60 Hz 4:4:4 transmission over distances that copper cannot reach. Directional connectors marked Source and Display prevent wiring errors in permanent runs. Plenum CMP rating allows legal routing through air-handling spaces above suspended ceilings or below raised floors. Gold-plated Type A male ends resist corrosion in long-term installations.

Plenum-rated fibre construction

The 4.5 mm outside diameter combines optical fibre with copper conductors (30 AWG pairs, 28 AWG, 26 AWG, 24 AWG) inside a CMP-rated jacket that meets fire-safety codes for plenum spaces. Fibre optics eliminate electromagnetic and radio-frequency interference without external shielding bulk. HDMI 2.0 bandwidth of 18 Gbps carries HDR, EDID, HDCP 2.2, 3D, CEC and ARC signals plus multi-channel audio including Dolby Atmos and DTS-HD Master Audio. UL listing confirms component compliance.

Steady long-haul signal integrity

Active optical conversion maintains full 18 Gbps throughput across the entire 100 ft length without the signal decay seen in passive copper at this distance. The unidirectional design means the Source end must connect to the player, PC or switch while the Display end connects to the screen; reversing the cable will not pass video. Installers who need bi-directional flexibility or runs beyond 100 ft should specify a different topology.

Highlights

  • Plenum-rated CMP jacket allows installation in air-handling spaces
  • Active optical fiber delivers 4K 60 Hz 18 Gbps over 100 ft
  • Gold-plated HDMI connectors resist corrosion for lasting signal quality
  • Directional source and display ends ensure correct one-way setup
  • Hybrid copper-fiber construction reduces EMI and RFI interference

Specifications

BrandNippon Labs
Model30HM2-10HM-PAOC4K-100
TypeHDMI Cables
ColorBlack
Cable Length100 ft.
Connect FromHDMI Type A Male Metal Grey (Source)
Connect ToHDMI Type A Male Metal Sliver (Display)
Terminal GenderMale to Male
ConductorPlenum Rated, 30 AWG. x 1P + 30 AWG. x 1C + 28 AWG. x 2C + 26 AWG. x 1C + 24 AWG. x 1C + Fiber
FeaturesHDMI 2.0; Support HDR, EDID, HDCP2.2, 3D, CEC, ARC.
Support multiple audio channels (DTS-HD Master Audio, Dolby TrueHD, Dolby Atmos).
Plenum rated (CMP) for installation into Air Plenum spaces such as the space above a suspended ceiling or below a raised floor.
Cable thickness in OD 4.5mm.
Resolution: up to 4K@ 60Hz; Chroma sub-sampling in 4:4:4, 8 bit.
Data transmission rate up to 18 Gbps.
Gold-plated connector provides superior transmission, high reliability, and durability.
Reduce EMI/RFI interference.
UL listed, all relevant materials complied with RoHS directive.
Shipping weight2.04 kg
Package size330 × 305 × 127 mm

Questions about this item

How do I install the 100 ft active optical HDMI cable and which connector goes to the source?

Connect the plug marked SOURCE to the player or computer and the plug marked DISPLAY to the screen; the cable is directional and will not work if reversed.

What maintenance or replacement will the plenum-rated AOC cable need over time?

No routine maintenance is required; gold-plated connectors resist corrosion and the fiber core does not degrade, so the cable only needs replacement if physically damaged.

What is the first limit reached when running 4K 60 Hz over the full 100 ft length?

The 18 Gbps bandwidth ceiling of the HDMI 2.0 link is reached before any distance-related signal loss occurs.
