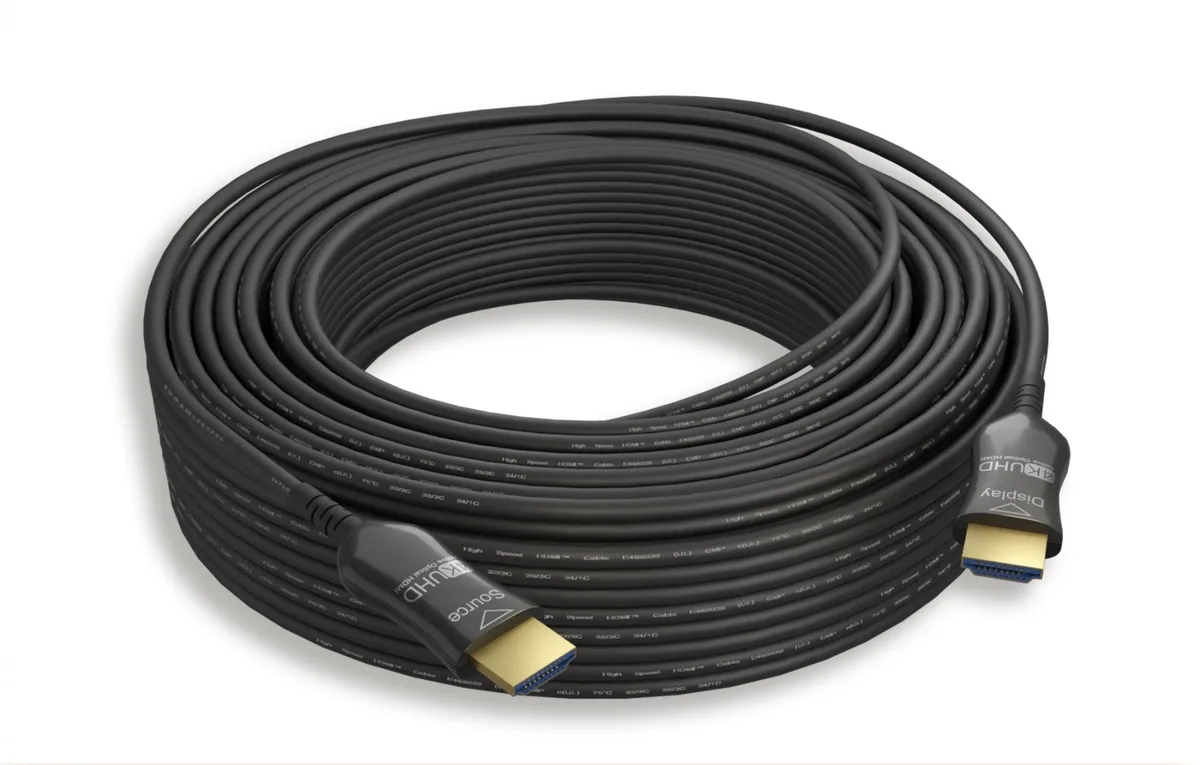

Black 75-foot hybrid active optical HDMI cable with gold-plated Type A male connectors on both ends

Nippon Labs

Nippon Labs 30HM2-10HM-PAOC4K-75 75ft HDMI 2.0 AOC plenum cable

SKU CH-945V-A0DVP MPN 30HM2-10HM-PAOC4K-75

A 75 ft active optical HDMI 2.0 cable with plenum rating delivers 4K at 60 Hz and 18 Gbps over long distances in a thin 4.8 mm profile

  • TypeHDMI Cables
  • ColorBlack
  • Cable Length75 ft.
  • Connect FromHDMI Type A Male (Source)
  • Connect ToHDMI Type A Male (Display)
  • Terminal GenderMale to Male
  • 4K 60 Hz video over 75 ft with 18 Gbps bandwidth
  • Plenum CMP rating allows in-wall and ceiling installation
  • Active optical fiber keeps 4.8 mm cable thin for tight spaces
  • Gold-plated HDMI connectors resist corrosion for reliable signal
  • Supports HDR, 3D, CEC, ARC and Dolby Atmos audio

75 ft HDMI 2.0 active optical cable

This 75 ft hybrid active optical HDMI cable carries 4K 60 Hz 4:4:4 8-bit video and up to 18 Gbps over fibre. Male-to-male Type A connectors link source devices to displays. Plenum CMP rating allows routing through air-handling spaces such as above suspended ceilings or below raised floors.

Check connector direction and plenum needs

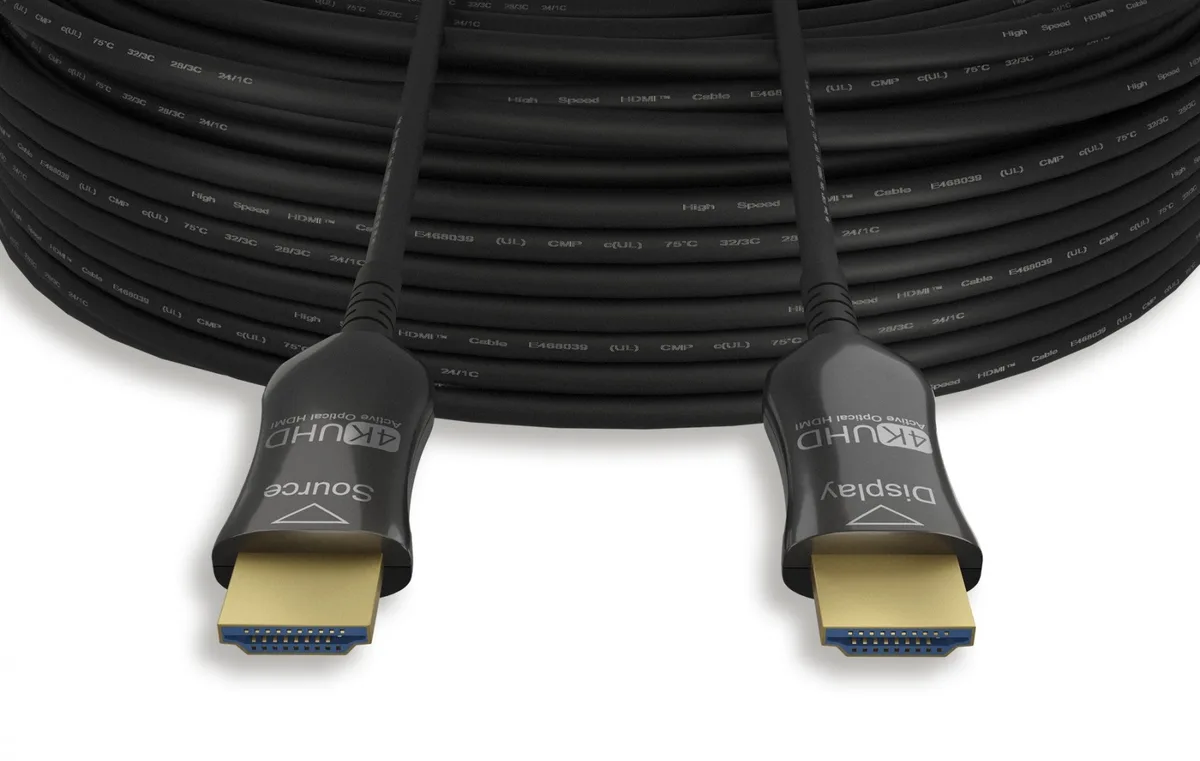

The cable is not bi-directional; connectors are marked SOURCE and DISPLAY and must be oriented correctly. Verify that your installation requires a CMP plenum rating and that 75 ft matches the run length. Ensure both ends use standard HDMI Type A ports.

Steady 18 Gbps over full length

Fibre conductors maintain the full 18 Gbps data rate across the entire 75 ft without the signal drop-off seen in copper at this distance. Gold-plated contacts resist oxidation for reliable long-term contact. The construction reduces EMI and RFI interference during continuous operation.

Highlights

  • 4K 60 Hz video over 75 ft with 18 Gbps bandwidth
  • Plenum CMP rating allows in-wall and ceiling installation
  • Active optical fiber keeps 4.8 mm cable thin for tight spaces
  • Gold-plated HDMI connectors resist corrosion for reliable signal
  • Supports HDR, 3D, CEC, ARC and Dolby Atmos audio

Specifications

BrandNippon Labs
Model30HM2-10HM-PAOC4K-75
TypeHDMI Cables
ColorBlack
Cable Length75 ft.
Connect FromHDMI Type A Male (Source)
Connect ToHDMI Type A Male (Display)
Terminal GenderMale to Male
ConductorPlenum Rated, 30 AWG. x 1P + 30 AWG. x 1C + 28 AWG. x 2C + 26 AWG. x 1C + 24 AWG. x 1C + Fiber
FeaturesConductor : (50/125um FIBER*4C+MID)*IC+7 /0.08Tx3C+19/0.08T*3C+41/0.08Tx1C+F+D+AL
Cable OD : 4.8mm
Shipping weight1.72 kg
Package size330 × 305 × 127 mm

Questions about this item

Does the 75 ft Nippon Labs HDMI 2.0 AOC arrive with any extra adapters or power supplies, or is it ready to plug in?

The cable has HDMI Type A male connectors on both ends labelled SOURCE and DISPLAY. No separate adapters or external power supplies are included; plug the SOURCE end into the player and the DISPLAY end into the screen.

The spec lists several conductor gauges and a 50/125 µm fibre count — which combination actually carries the 4K 60 Hz signal?

Four 50/125 µm fibres handle the high-speed video data up to 18 Gbps, while the copper conductors (30 AWG to 24 AWG) carry DDC, CEC, ARC and power for the active electronics.

In a real install the cable runs through a plenum ceiling — will the 4.8 mm OD and CMP rating meet code and fit typical conduit?

The cable is CMP plenum rated and measures 4.8 mm outside diameter, so it satisfies plenum fire-code requirements and fits easily in standard conduit or tight ceiling spaces.
