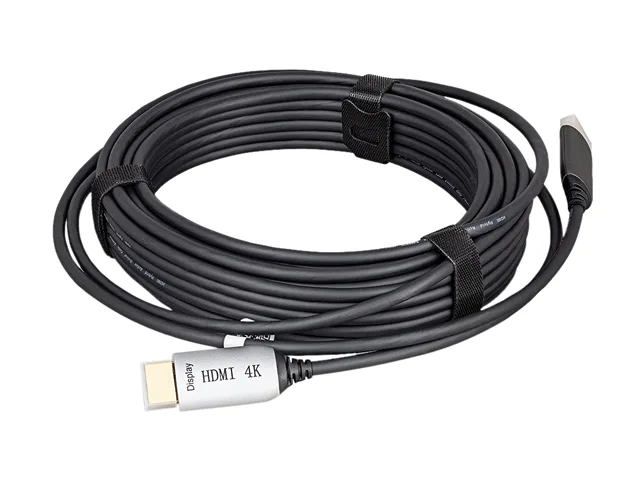

Black hybrid active optical HDMI cable, 50 ft, directional connectors marked source and display

Nippon Labs

Nippon Labs 30HM2-10HM-PAOC4K-50 50 ft HDMI cable

SKU CH-0K57-NYKFT MPN 30HM2-10HM-PAOC4K-50

Plenum-rated active optical HDMI cable carries 4K 60 Hz 18 Gbps signals over 50 ft with gold-plated directional connectors

  • TypeHDMI Cables
  • ColorBlack
  • Cable Length50 ft.
  • Connect FromHDMI Type A Male Metal Grey (Source)
  • Connect ToHDMI Type A Male Metal Sliver (Display)
  • Terminal GenderMale to Male
  • Active optical fiber delivers 4K 60 Hz over 50 ft
  • Plenum CMP rating allows installation in air-handling spaces
  • Gold-plated connectors resist corrosion for lasting signal integrity
  • Directional source and display labels prevent connection errors
  • Thin 4.5 mm diameter eases routing through tight spaces

50 ft Hybrid Active Optical HDMI Cable

This 50 ft Nippon Labs cable uses hybrid active optical fiber technology to carry HDMI 2.0 signals up to 18 Gbps. It supports 4K resolution at 60 Hz with 4:4:4 chroma sampling and 8-bit colour depth. The plenum-rated (CMP) jacket allows installation in air-handling spaces such as above suspended ceilings. Directional connectors are clearly marked Source and Display for correct orientation.

Plenum Rated for In-Wall Installation

The CMP-rated jacket meets fire-safety requirements for routing through plenum spaces without conduit. At 4.5 mm outer diameter the cable remains thin enough for tight cavities and long pulls. Gold-plated HDMI Type A male connectors on both ends resist corrosion and maintain reliable contact. Because the cable is directional the Source end must connect to the playback device and the Display end to the screen.

Consistent 18 Gbps Over Full Length

Active optical conversion inside the connectors maintains the full 18 Gbps bandwidth across the entire 50 ft run without the signal loss typical of passive copper at this distance. The design reduces EMI and RFI interference in electrically noisy environments. Supported features include HDR, EDID, HDCP 2.2, 3D, CEC and ARC plus multi-channel audio such as Dolby Atmos and DTS-HD Master Audio. The cable is not bi-directional and must be installed with the labelled ends in their correct roles.

Highlights

  • Active optical fiber delivers 4K 60 Hz over 50 ft
  • Plenum CMP rating allows installation in air-handling spaces
  • Gold-plated connectors resist corrosion for lasting signal integrity
  • Directional source and display labels prevent connection errors
  • Thin 4.5 mm diameter eases routing through tight spaces

Specifications

BrandNippon Labs
Model30HM2-10HM-PAOC4K-50
TypeHDMI Cables
ColorBlack
Cable Length50 ft.
Connect FromHDMI Type A Male Metal Grey (Source)
Connect ToHDMI Type A Male Metal Sliver (Display)
Terminal GenderMale to Male
ConductorPlenum Rated, 30 AWG. x 1P + 30 AWG. x 1C + 28 AWG. x 2C + 26 AWG. x 1C + 24 AWG. x 1C + Fiber
FeaturesHDMI 2.0; Support HDR, EDID, HDCP2.2, 3D, CEC, ARC.
Support multiple audio channels (DTS-HD Master Audio, Dolby TrueHD, Dolby Atmos).
Plenum rated (CMP) for installation into Air Plenum spaces such as the space above a suspended ceiling or below a raised floor.
Cable thickness in OD 4.5mm.
Resolution: up to 4K@ 60Hz; Chroma sub-sampling in 4:4:4, 8 bit.
Data transmission rate up to 18 Gbps.
Gold-plated connector provides superior transmission, high reliability, and durability.
Reduce EMI/RFI interference.
UL listed, all relevant materials complied with RoHS directive.
Shipping weight1.00 kg
Package size254 × 203 × 127 mm

Questions about this item

Does the 18 Gbps fiber link hold 4K 60 Hz 4:4:4 over the full 50 ft without compression?

Yes, the hybrid active optical cable is rated for 18 Gbps and supports 4K at 60 Hz with 4:4:4 chroma across the entire 50 ft length.

How much heat or noise does the active optical engine add during all-day operation?

The fiber-based design eliminates electrical heating in the long run and produces no fan noise; only the small transceiver modules at each connector draw minimal power.

What source and display devices must I already have for this directional cable to work?

You need an HDMI 2.0 source with HDCP 2.2 output and a display with an HDMI 2.0 input; the connectors are marked SOURCE and DISPLAY and must be plugged in that order.
