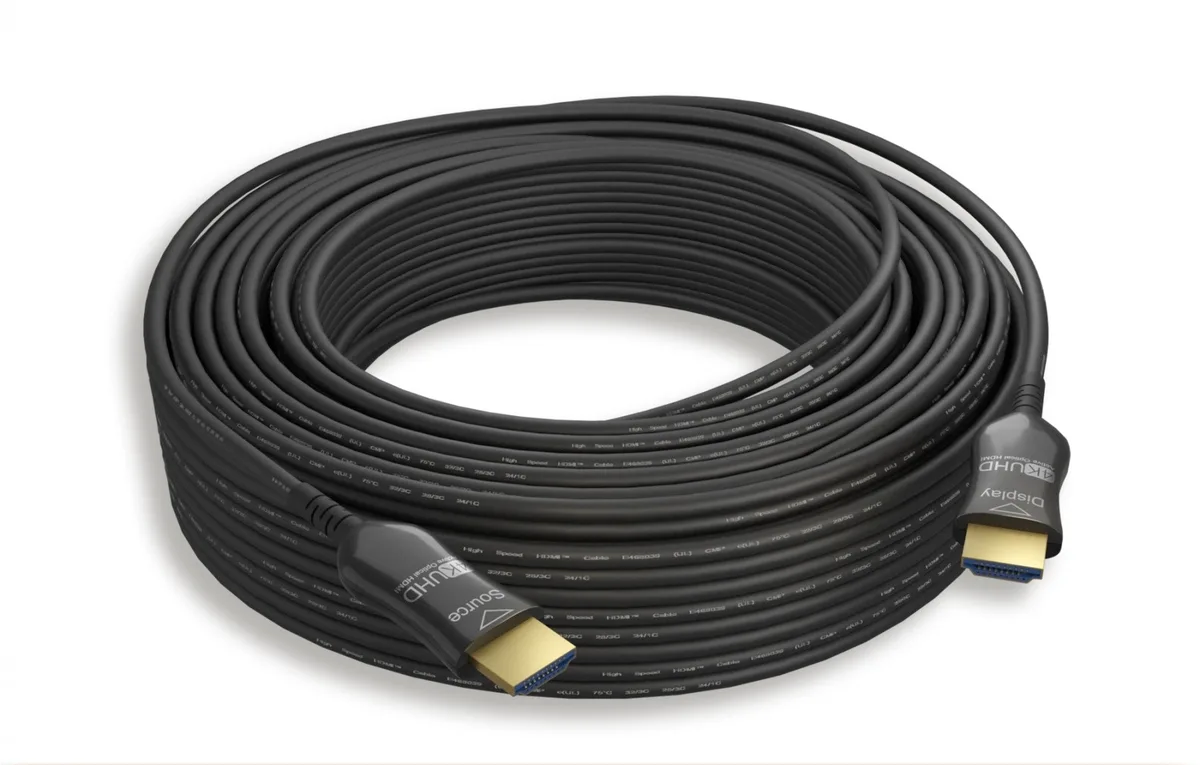

Black 35ft active optical HDMI cable with gold-plated Type A plugs and 4.8mm plenum-rated jacket

Nippon Labs

Nippon Labs 30HM2-10HM-PAOC4K-35 35ft HDMI 2.0 AOC plenum cable

SKU CH-H1Q3-PG3R6 MPN 30HM2-10HM-PAOC4K-35

A 35 ft plenum-rated active optical HDMI 2.0 cable delivering 4K 60 Hz 4:4:4 video and 18 Gbps data over long distances

  • TypeHDMI Cables
  • ColorBlack
  • Length35ft.
  • Cable Length35 ft.
  • Thunderbolt 3-
  • Connect FromHDMI Type A Male (Source)
  • 4K 60 Hz video over 35 ft via HDMI 2.0 active optical fiber
  • 18 Gbps bandwidth carries HDR, EDID, HDCP 2.2, 3D, CEC and ARC
  • Plenum-rated CMP jacket meets fire-code for ceiling and raised-floor installs
  • 8 mm hybrid fiber-copper construction stays flexible in tight conduit runs
  • Gold-plated connectors resist corrosion and cut EMI/RFI interference

35 ft HDMI 2.0 active optical cable

This hybrid active optical cable carries HDMI 2.0 signals up to 35 ft using integrated fibre conductors. It supports 4K at 60 Hz with 4:4:4 chroma sampling at 8 bit and a data rate of 18 Gbps. The plenum-rated jacket meets CMP requirements for installation in air-handling spaces. Gold-plated Type A male connectors are fitted at both ends.

Installers needing plenum-rated long runs

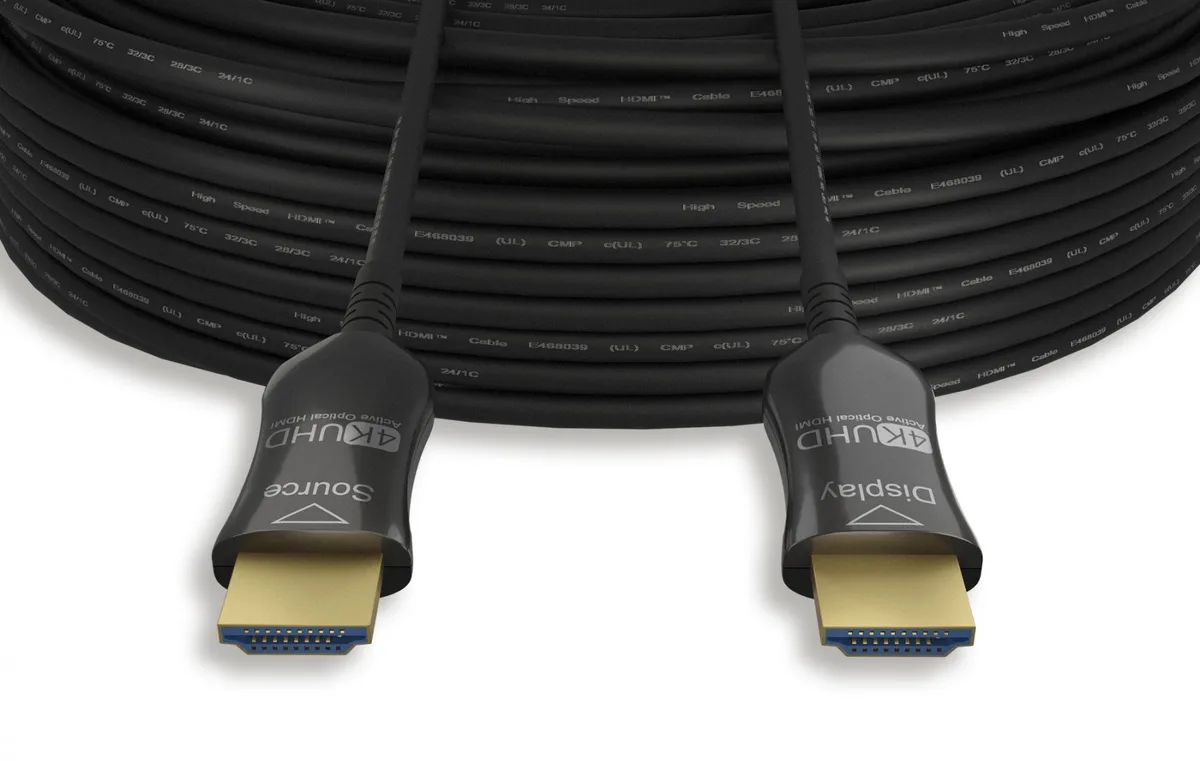

The cable suits commercial AV installs where the route passes through plenum ceilings or raised floors and distances exceed standard copper reach. It is not bi-directional; the source and display ends are labelled and must be connected correctly. Buyers who need a thinner copper cable for shorter runs or a cable without directional connectors should consider other options.

Verify source and display port orientation

Before ordering, confirm that the source device and display each provide a standard HDMI Type A female port. Check that the 35 ft length matches the planned route without excess slack. Ensure the installation path can accommodate the 4.8 mm outside diameter and that local code accepts CMP-rated cable for the intended plenum space.

Highlights

  • 4K 60 Hz video over 35 ft via HDMI 2.0 active optical fiber
  • 18 Gbps bandwidth carries HDR, EDID, HDCP 2.2, 3D, CEC and ARC
  • Plenum-rated CMP jacket meets fire-code for ceiling and raised-floor installs
  • 8 mm hybrid fiber-copper construction stays flexible in tight conduit runs
  • Gold-plated connectors resist corrosion and cut EMI/RFI interference

Specifications

BrandNippon Labs
Model30HM2-10HM-PAOC4K-35
TypeHDMI Cables
ColorBlack
Length35ft.
Cable Length35 ft.
Thunderbolt 3-
Connect FromHDMI Type A Male (Source)
Connect ToHDMI Type A Male (Display)
Terminal GenderMale to Male
ConductorPlenum Rated, 30 AWG. x 1P + 30 AWG. x 1C + 28 AWG. x 2C + 26 AWG. x 1C + 24 AWG. x 1C + Fiber
FeaturesConductor : (50/125um FIBER*4C+MID)*IC+7 /0.08Tx3C+19/0.08T*3C+41/0.08Tx1C+F+D+AL
Cable OD : 4.8mm
Shipping weight0.68 kg
Package size254 × 203 × 127 mm

Questions about this item

What source device with an HDMI Type A output is needed to send 4K 60 Hz video through this cable?

Any source such as a Blu-ray player, game console or PC graphics card that has an HDMI 2.0 Type A port and can output 4K at 60 Hz will drive the cable.

Will this 35 ft active optical cable work reliably with an older 1080p display that only has HDMI 1.4 inputs?

Yes, the cable is backward compatible; it will transmit 1080p signals at the display's native capability while maintaining the 18 Gbps link.

How can I verify the cable is operating correctly after connecting the SOURCE end to my player and the DISPLAY end to my screen?

Confirm the source reports a stable 4K 60 Hz signal, audio formats such as Dolby Atmos pass through, and CEC or ARC functions respond between the two devices.
