White Mini DisplayPort male to DVI-D female passive adapter

Nippon Labs

Nippon Labs 30DP-MDP-DVI Mini DisplayPort to DVI passive adapter 1920 x 1080p@60Hz white

SKU CH-393H-P0AHX MPN 30DP-MDP-DVI

Passive adapter links a Mini DisplayPort source to a DVI-D display at 1920 x 1080p@60Hz

  • TypeMini DP to DVI
  • ColorWhite
  • SpecificationsConnector A: Mini DisplayPort Male Connector B: DVI Female T
  • Connector A1x Mini DisplayPort male
  • Connector B1x DVI-D female
  • FeaturesSupport DVI resolutions up to 1920 x 1080p@60Hz. Connect you
  • Connect MacBook or iMac to DVI monitor via Mini DisplayPort
  • Passive adapter supports 1920 x 1080p at 60Hz video
  • Gold-plated connectors ensure reliable digital signal transmission
  • Compact white design fits Mini DisplayPort and Thunderbolt 2 ports
  • Requires DP++ source port and separate DVI cable to operate

Mini DisplayPort to DVI passive adapter

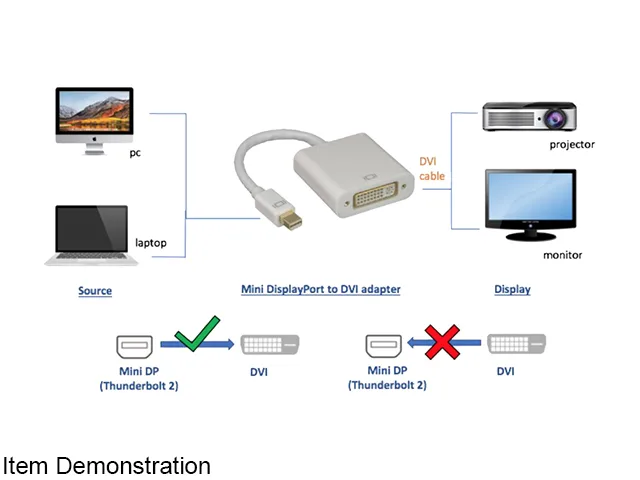

This white passive adapter converts a Mini DisplayPort or Thunderbolt 2 output to a DVI-D female connector. It supports digital video resolutions up to 1920 x 1080p at 60 Hz. The unit is designed for MacBook Pro, MacBook Air, iMac and other Mini DisplayPort equipped computers. A separate DVI cable is required to complete the connection to a monitor or projector.

Sustained signal behaviour

Gold-plated contacts maintain reliable digital transmission during extended video streaming or gaming sessions. As a passive device, it depends entirely on the source providing a DP++ (DisplayPort++) output; without that capability the adapter will not function. No active circuitry means there is no thermal throttling or signal degradation over time. RoHS-compliant materials meet environmental standards for long-term use.

Installation notes

Simply plug the Mini DisplayPort male end into the computer and attach a DVI cable to the female port. The adapter only works when the host port supports DP++ dual-mode signalling; standard DisplayPort-only sources will not drive a DVI display through this unit. It cannot convert to VGA or HDMI, and it does not carry audio. Buyers who need an active converter for non-DP++ sources or higher resolutions should look elsewhere.

Highlights

  • Connect MacBook or iMac to DVI monitor via Mini DisplayPort
  • Passive adapter supports 1920 x 1080p at 60Hz video
  • Gold-plated connectors ensure reliable digital signal transmission
  • Compact white design fits Mini DisplayPort and Thunderbolt 2 ports
  • Requires DP++ source port and separate DVI cable to operate

Specifications

BrandNippon Labs
Model30DP-MDP-DVI
TypeMini DP to DVI
ColorWhite
SpecificationsConnector A: Mini DisplayPort Male
Connector B: DVI Female
Type: Mini DisplayPort to DVI Passive Adapter
Connector A1x Mini DisplayPort male
Connector B1x DVI-D female
FeaturesSupport DVI resolutions up to 1920 x 1080p@60Hz.
Connect your MacBook Pro, MacBook Air, iMac or other Mini DisplayPort / Thunderbolt 2 equipped computer to a monitor or projector with DVI input. (A DVI cable is required).
Gold-plated connector provides superior transmission, high reliability and durability.
Carry a digital video signal from your computer to a monitor for video streaming or gaming.
This is a passive adapter that requires the connected source to have a DP++ port (DisplayPort++).
All relevant materials are complied with RoHS directive.
Shipping weight0.03 kg
Package size229 × 127 × 25 mm

Questions about this item

Does the passive Mini DisplayPort adapter draw extra power or generate heat during all-day use?

It is a passive adapter with no active electronics, so it draws no extra power and produces no measurable heat.

What must I already have to connect this adapter to my monitor?

You need a DVI cable and a source device with a DP++ Mini DisplayPort or Thunderbolt 2 port.

Will it work with an older DVI monitor that only supports 1920 x 1080 at 60 Hz?

Yes, the adapter supports DVI resolutions up to 1920 x 1080p at 60 Hz, matching that monitor.
