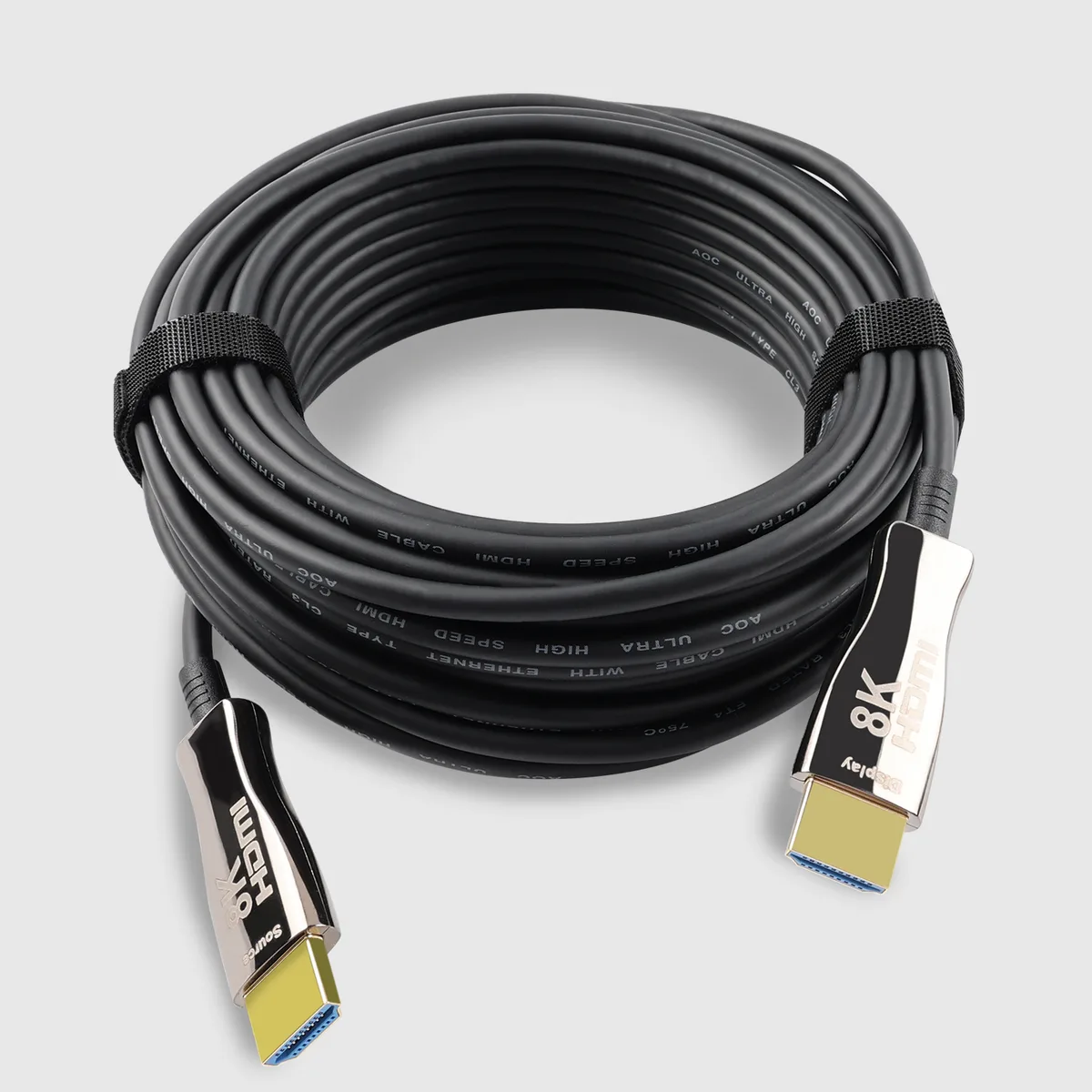

Black hybrid active optical HDMI cable, 75 ft length, thin 4.8 mm diameter jacket, standard connectors both ends

Nippon Labs

Nippon Labs 20AOH8KCL3-75FT 75 ft hdmi cable

SKU CH-ABGC-C85ZZ MPN 20AOH8KCL3-75FT

A 75 ft active optical HDMI cable delivering 48 Gbps bandwidth for 8K at 60 Hz and 4K at 120 Hz with eARC, HDR and HDCP 2.2, CL3-rated jacket, no external power needed

  • Type8K High Speed HDMI 2.1 Active Optical Cable (AOC)
  • Length75 ft.
  • SpecificationsSupports 48Gbps Bandwidth Supports 8K up to120Hz YCbCr 4:4:4

Cable Length 75 Feet

  • Transmits 8K at 60 Hz over 75 ft without signal loss
  • Delivers 48 Gbps bandwidth for 4K 120 Hz and 8K 60 Hz content
  • Supports eARC and HDR for high-fidelity audio and dynamic video
  • CL3-rated jacket meets in-wall fire-safety requirements for commercial installs
  • Operates without external power thanks to integrated hybrid optical chipset

Long-distance 8K HDMI link

This hybrid active optical cable carries full HDMI 2.1 bandwidth over 75 ft without an external power supply. It targets installers and home-theatre owners who need reliable 8K@60 Hz or 4K@120 Hz runs that copper cannot support at this length.

Build integration and routing

The 4.8 mm diameter and CL3-rated jacket allow in-wall and plenum routing where building codes require fire-resistant cable. Because the optical engine draws power from the HDMI ports themselves, no nearby mains outlet or injector is needed, freeing up placement options for displays and source gear.

Bandwidth headroom and limits

The link delivers 48 Gbps with 8K up to 120 Hz YCbCr 4:4:4, plus eARC, HEAC, HDR and HDCP 2.2 support. It is not suited for runs beyond 75 ft or for applications demanding uncompressed signals at refresh rates above 144 Hz.

Highlights

  • Transmits 8K at 60 Hz over 75 ft without signal loss
  • Delivers 48 Gbps bandwidth for 4K 120 Hz and 8K 60 Hz content
  • Supports eARC and HDR for high-fidelity audio and dynamic video
  • CL3-rated jacket meets in-wall fire-safety requirements for commercial installs
  • Operates without external power thanks to integrated hybrid optical chipset

Specifications

BrandNippon Labs
Model20AOH8KCL3-75FT
Type8K High Speed HDMI 2.1 Active Optical Cable (AOC)
Length75 ft.
SpecificationsSupports 48Gbps Bandwidth
Supports 8K up to120Hz YCbCr 4:4:4
Supports eARC , HEAC, HDR, HDCP 2.2
No external power supply required.
Cable Diameter: OD4.8mm (±0.2mm)
CL3 rated Jacket
RoHS 2.0 + REACH Compliant
Shipping weight1.54 kg
Package size203 × 127 × 127 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the 75 ft length cause any signal loss at 48 Gbps?

The hybrid active optical design maintains full 48 Gbps bandwidth across the entire 75 ft run without degradation.

Does the cable run hot or need a power adapter during all-day use?

No external power supply is required and the thin 4.8 mm jacket stays cool during continuous operation.

My display only has standard HDMI ports — will this cable plug straight in?

Yes, both ends use standard HDMI connectors so it works with any HDMI 2.1 or earlier port.
