Bronze sweat adapter with cup and FNPT ends

Nibco, Inc.

Nibco, Inc. 7032RLF-3412 trap

SKU CH-0SYQ-47KK5 MPN 7032RLF-3412

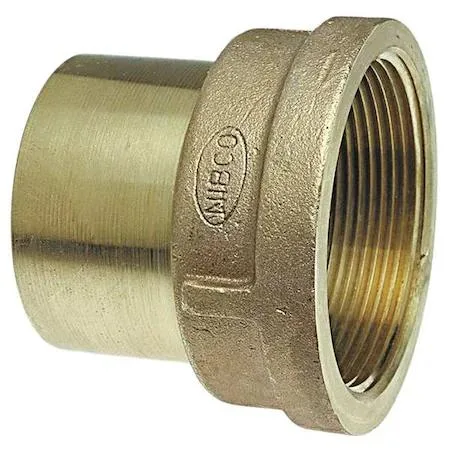

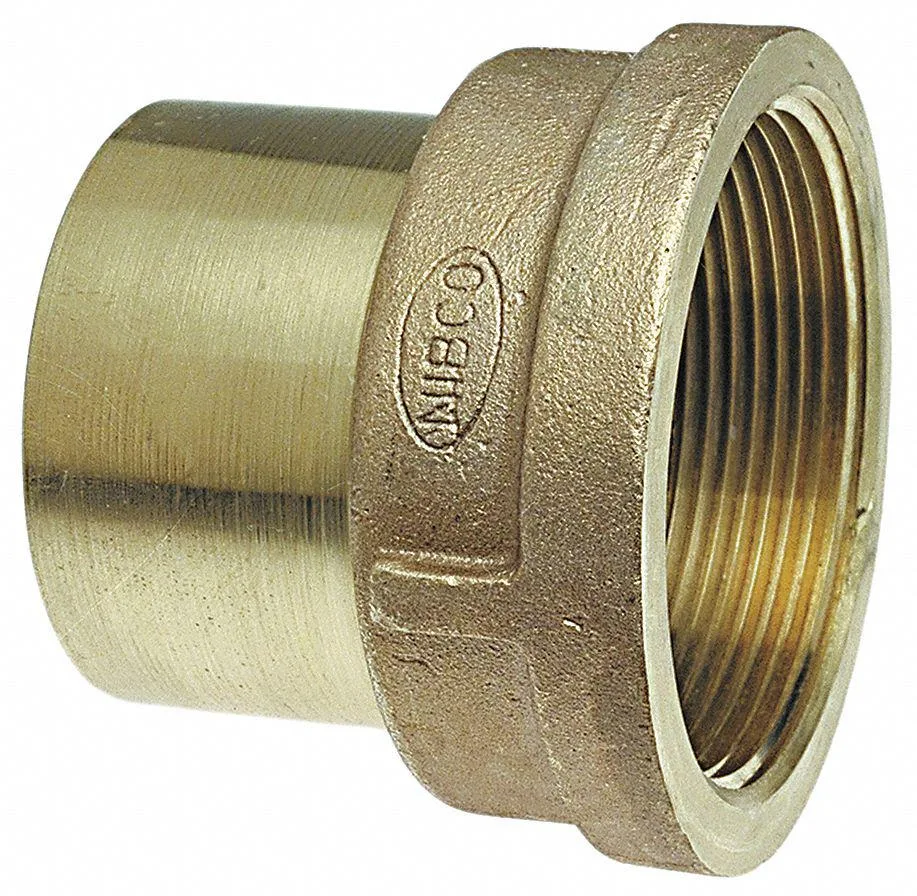

A low-lead bronze sweat adapter joining 3/4 in copper tube to 3/4 in FNPT, rated 466 psi at 200 °F and certified to NSF/ANSI 61 and 372

  • TypeDrain Components
  • MaterialHAWA
  • Lead-free bronze meets NSF/ANSI 61 and 372 for safe potable water
  • Rated 466 psi and 200 °F for reliable high-pressure hot-water service
  • Sweat-to-FNPT straight adapter joins 3/4 in copper tube to 3/4 in female pipe thread
  • Cast from C87850 bronze alloy for corrosion resistance and long service life
  • Manufactured under ISO 9001 quality system and compliant with ASME B16.18

Sweat Fitting Adapter for Potable Water

The Nibco 7032RLF-3412 is a straight adapter designed to connect copper tubing to a female NPT thread in potable water systems. It is intended for plumbers and contractors who need a lead-free bronze transition fitting certified to NSF/ANSI 61 and NSF/ANSI 372 standards.

Installation uses a sweat connection on one end

The cup end accepts 3/4 inch copper tube with a 7/8 inch outer diameter and requires soldering, while the other end provides a 3/4 inch FNPT thread for a threaded joint. Proper flux, heat control, and thread sealant are essential; insufficient cleaning or overheating can cause leaks or joint failure.

Rated for 466 psi at 200 degrees F

The C87850 bronze body meets ASME B16.18 and ISO 9001 requirements, limiting use to the stated pressure and temperature range. It is not suited for applications exceeding these values, for non-potable fluids incompatible with bronze, or for connection types other than sweat-to-FNPT.

Highlights

  • Lead-free bronze meets NSF/ANSI 61 and 372 for safe potable water
  • Rated 466 psi and 200 °F for reliable high-pressure hot-water service
  • Sweat-to-FNPT straight adapter joins 3/4 in copper tube to 3/4 in female pipe thread
  • Cast from C87850 bronze alloy for corrosion resistance and long service life
  • Manufactured under ISO 9001 quality system and compliant with ASME B16.18

Specifications

TypeDrain Components
MaterialHAWA
BrandNibco
Model7032RLF-3412

Questions about this item

How do I confirm the 7032RLF-3412 adapter is working correctly after installation?

Pressurise the line up to 466 psi and run water at up to 200 °F; no leaks at the cup or FNPT joints means the adapter is performing to spec.

What comes in the box with the 7032RLF-3412 and what must I source separately?

The box contains the bronze straight adapter only; you will need 3/4 in copper tube, flux, solder and 3/4 in NPT pipe or fittings to complete the connection.

Which version of the 7032RLF-3412 should I choose for potable water?

The 7032RLF-3412 is the low-lead C87850 bronze model certified to NSF/ANSI 61 and 372, making it the correct choice for potable-water systems.
