Green circuit board with black memory chips, 288 gold pins, no heat spreader

NEMIX RAM

NEMIX RAM 16GB DDR5 5600MHz CL46 1Rx8 ECC RDIMM memory upgrade

SKU CH-TGJ9-M39PX

16 GB DDR5 5600 MHz CL46 1Rx8 ECC registered RDIMM validated for GIGABYTE MS34-CP0 motherboards

  • Capacity16GB
  • Type288-Pin DDR5 RDIMM
  • SpeedDDR5 5600 (PC5 44800)
  • CAS LatencyCL46
  • Voltage1.10V
  • ECCYes

Size 16GB

Show 18 more configurations
  • 16GB DDR5-5600 capacity runs at rated speed with exact CL46 timing
  • Registered ECC architecture prevents silent data corruption under full load
  • 10V operation matches server memory controller specifications precisely
  • 1Rx8 288-pin RDIMM form factor fits GIGABYTE MS34-CP0 population rules
  • Lifetime replacement warranty with US-based technical support included

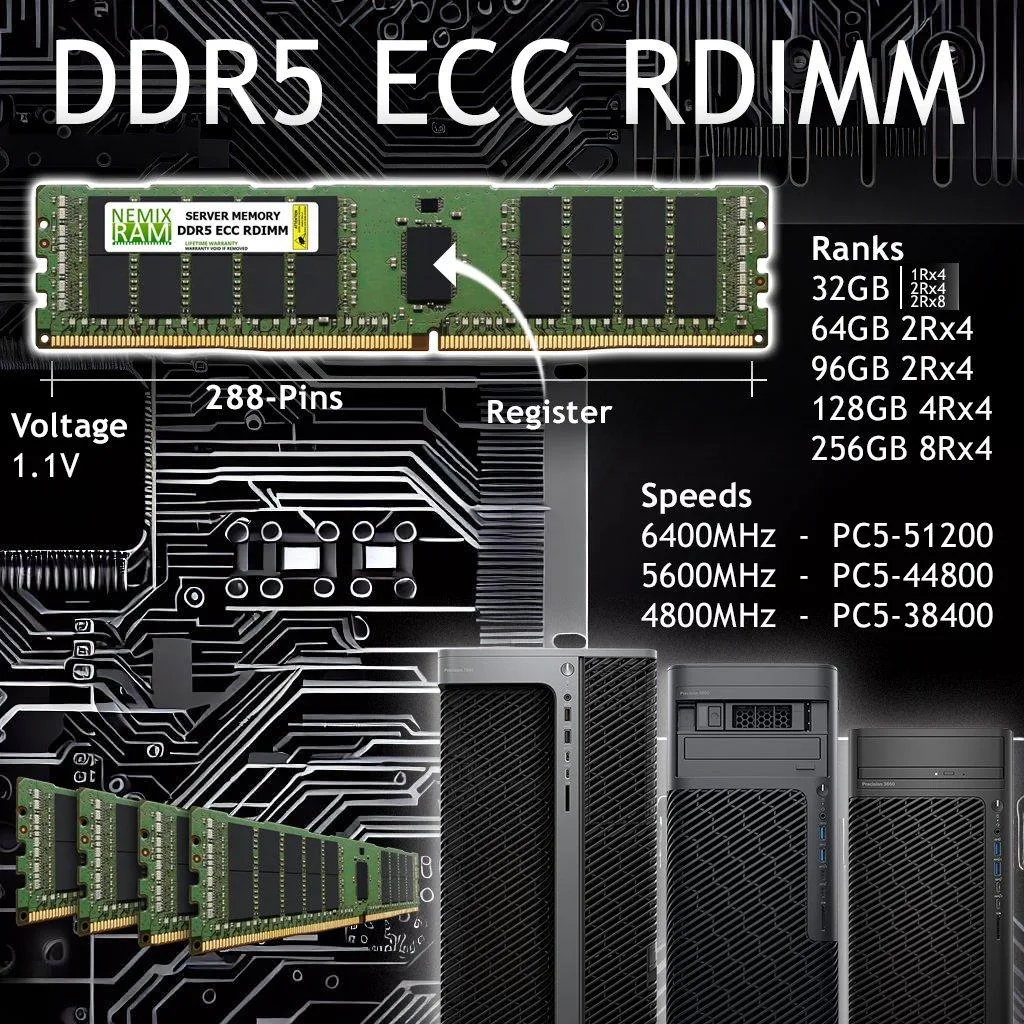

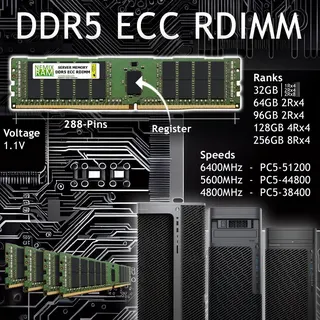

Exact DDR5-5600 ECC RDIMM for GIGABYTE MS34-CP0

This 16 GB DDR5 5600 MHz registered ECC module matches the voltage, rank and timing the GIGABYTE MS34-CP0 motherboard expects. The 288-pin RDIMM form factor is the one this board requires, not a UDIMM or SODIMM. It is built for servers and workstations that need registered memory with error correction.

Replaces slower or non-ECC DDR5 DIMMs in the same

The jump is worth it when your workload demands registered buffering and single-bit error correction at full population. Systems that currently run unbuffered or lower-speed DDR5 will gain the stability of registered architecture and on-the-fly ECC correction. Buyers who need consumer UDIMM pin-outs or non-ECC operation cannot use this module.

Limited to platforms that support DDR5 5600

The DDR5 interface here only works with motherboards qualified for 5600 MT/s registered DIMMs at 1.1 V and CL46. Population rules, maximum capacity per channel and supported rank counts are defined by the specific platform, not by the module itself. Boards that require UDIMM, SODIMM or a different voltage will not accept this part.

Highlights

  • 16GB DDR5-5600 capacity runs at rated speed with exact CL46 timing
  • Registered ECC architecture prevents silent data corruption under full load
  • 10V operation matches server memory controller specifications precisely
  • 1Rx8 288-pin RDIMM form factor fits GIGABYTE MS34-CP0 population rules
  • Lifetime replacement warranty with US-based technical support included

Specifications

BrandNEMIX RAM
SeriesNEMIX RAM Original Series Server Memory
ModelDDR5 ECC RDIMM Registered Server Memory
Part NumberMR44800-618K1
Capacity16GB
Type288-Pin DDR5 RDIMM
SpeedDDR5 5600 (PC5 44800)
CAS LatencyCL46
Voltage1.10V
ECCYes
Buffered/RegisteredRegistered
Rank1Rx8
ChipsetMajor OEM Samsung, Micron, Hynix
Heat SpreaderNo
Compatible SystemGIGABYTE
FeaturesDDR5 ECC RDIMM Motherboard Compatible
Package Content16GB DDR5 5600MHz PC5-44800 1Rx8 1.1V 288-PIN ECC RDIMM KIT

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this 288-pin DDR5 RDIMM fit the memory slots on my GIGABYTE MS34-CP0 motherboard?

Yes, the module uses the 288-pin DDR5 RDIMM form factor required by the GIGABYTE MS34-CP0 motherboard and matches the DDR5 5600MHz PC5-44800 specification it supports.

What is the correct way to install this registered ECC module, and what step is often missed?

Power off the server, open the chassis, align the notch on the 288-pin RDIMM with the slot key, press firmly until both retention clips click, then verify the BIOS recognizes the full 16GB at DDR5 5600MHz; the step often missed is checking the motherboard manual for the required DIMM population order.

Does this 1.10V DDR5 ECC RDIMM need any firmware updates or component replacements over its service life?

The module itself has no moving parts or firmware to update; it runs at 1.10V with on-die ECC and a registered buffer, so no maintenance is required beyond keeping the server's air filters clean for adequate cooling.
