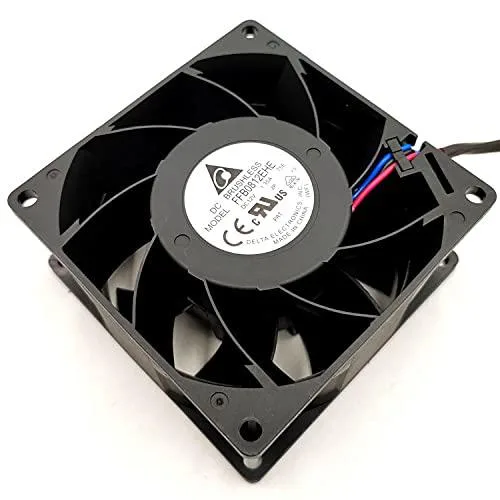

Black square 80mm case fan with 38mm thick frame, three-pin connector visible

NDLIULEI

NDLIULEI FFB0812EHE case fan 12V 80mm 38mm 1.35A 3-pin double ball

SKU CH-13V6-Y7BDN MPN FFB0812EHE

An 80 mm case fan with 38 mm depth, 12 V power, 3-pin connector, double ball bearings, 5700 RPM speed, 80.02 CFM airflow and 52.5 dBA noise

  • TypeCase Fan
  • High airflow of 80.02 CFM cools components fast
  • 5700 RPM speed delivers strong air pressure
  • Double ball bearing design extends operating life
  • 12 V 1.35 A power draws stable current
  • Compact 80 x 38 mm frame fits tight cases

80 mm 12 V case fan for tight builds

The NDLIULEI FFB0812EHE is an 80 mm square frame fan that runs on 12 V and draws 1.35 A through a standard three-pin header. Its 38 mm thickness fits many compact enclosures and legacy server trays where slimmer units cannot mount. The double ball bearing is built for continuous operation in industrial or desktop environments.

Double ball bearing and original Delta design

The double ball bearing reduces friction compared with sleeve alternatives, helping the fan sustain its rated 5700 RPM over long periods. Being an original Delta part means the motor and blade geometry match the specifications used in OEM equipment, so replacement avoids the airflow mismatch that generic substitutes can introduce. No extra software or accessories are included.

Three-pin header limits speed control

The three-pin connector provides power and tachometer feedback but lacks the fourth PWM wire, so voltage regulation is the only way to lower speed from the motherboard or a fan controller. At full voltage the fan produces 80.02 CFM at 52.5 dBA, a level suited to high-throughput cooling rather than quiet operation. Builders needing silent running or precise PWM curves should look elsewhere.

Highlights

  • High airflow of 80.02 CFM cools components fast
  • 5700 RPM speed delivers strong air pressure
  • Double ball bearing design extends operating life
  • 12 V 1.35 A power draws stable current
  • Compact 80 x 38 mm frame fits tight cases

Specifications

TypeCase Fan

Questions about this item

Will the double ball bearing need lubrication or replacement after continuous 5700 RPM operation?

Double ball bearings are sealed and maintenance-free; they do not require lubrication and are rated for long life at the specified 5700 RPM speed.

What thermal limit is reached first when the fan runs at 1.35 A continuously?

The motor draws a steady 1.35 A at 12 V, so the winding temperature rise is the first limiting factor under sustained load.

How loud is 52.5 dBA when the fan runs all day at 5700 RPM?

At 52.5 dBA the noise is comparable to a quiet office; it remains constant because the 3-pin connection fixes the speed at 5700 RPM.
