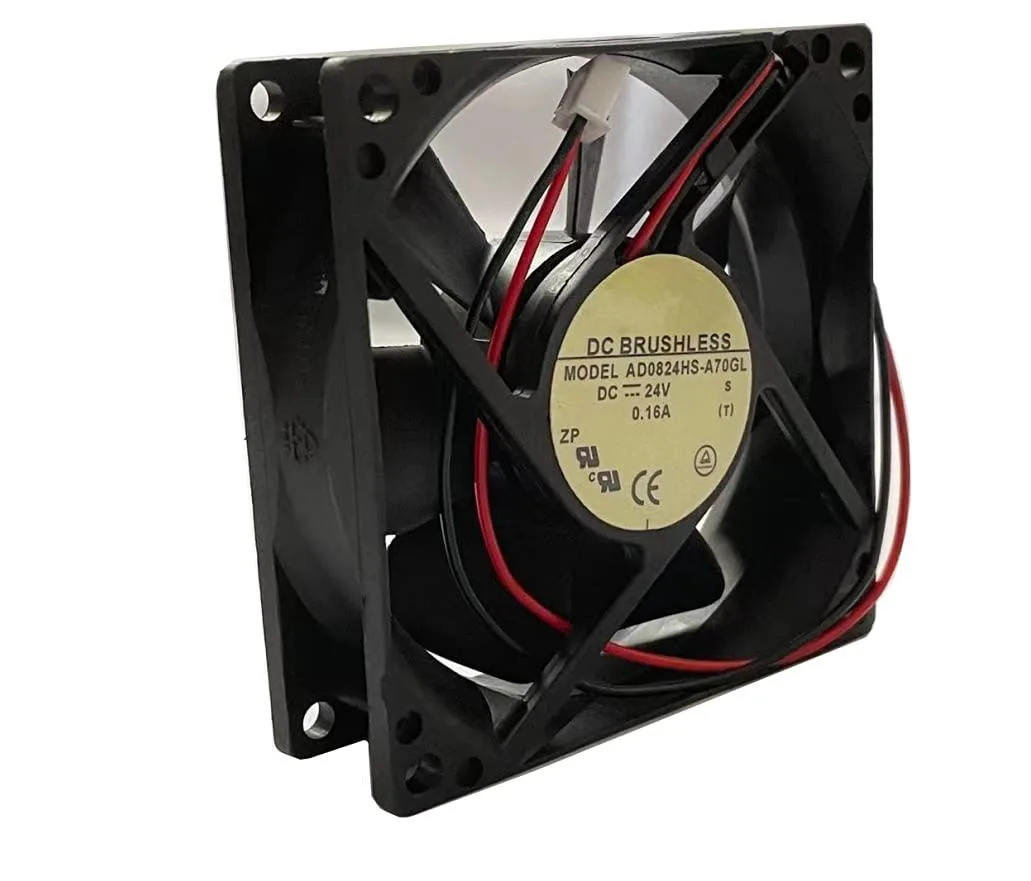

Square black plastic 80mm case fan with transparent blades, 25mm thick, two wires visible

NDLIULEI

NDLIULEI AD0824HS-A70GL 24V 0.16A 80x80x25mm case fan

SKU CH-0XHA-WGE8Z MPN AD0824HS-A70GL

An 80 mm square, 25 mm deep case fan running at 24 V and 3000 RPM to deliver 38.65 CFM at 35.2 dB/A

  • TypeCase Fan
  • 65 CFM airflow keeps components cool
  • 09 mm static pressure pushes air through tight spaces
  • 2 dB/A noise level runs quietly
  • 3000 RPM speed delivers consistent cooling
  • 84 W power draw at 24 V 0.16 A

Compact 24 V case fan

The NDLIULEI AD0824HS-A70GL is an 80 mm square frame that fits standard 8025 mounting points and runs on a 24 V DC supply. It suits industrial chassis, server refreshes or custom cooling loops where a thin 25 mm profile and two-wire power are required.

Thermals and acoustics

At 3000 RPM the impeller moves 38.65 CFM with a static pressure of 1.09 mm H2O while drawing 3.84 W from the 0.16 A feed. The supplier rates operating noise at 35.2 dB/A, placing it in a moderate range for continuous duty in rack or workstation environments.

Build and connectivity

The 80 x 80 x 25 mm housing uses a two-wire lead for simple polarity connection without PWM or tach feedback. Four corner holes accept standard M3 screws so the fan can be mounted as intake, exhaust or on a heatsink stack with no adapter brackets. Buyers needing speed control, a third wire for monitoring or a different voltage rail will need another model.

Highlights

  • 65 CFM airflow keeps components cool
  • 09 mm static pressure pushes air through tight spaces
  • 2 dB/A noise level runs quietly
  • 3000 RPM speed delivers consistent cooling
  • 84 W power draw at 24 V 0.16 A

Specifications

TypeCase Fan

Questions about this item

How do I wire the 2-wire 24V 0.16A fan to my system?

Connect the two leads to a 24 V DC source that can supply at least 0.16 A; observe polarity so the fan spins at the rated 3000 RPM and 38.65 CFM.

What maintenance will the AD0824HS-A70GL need over time?

Periodically clean dust from the 80×80×25 mm frame and blades to maintain the 38.65 CFM airflow and 35.2 dB/A noise level; the sleeve bearing is not user-serviceable.

At what point does heat become the limiting factor during continuous operation?

The motor draws 3.84 W at 24 V; sustained use is limited by the sleeve bearing’s temperature tolerance, so ensure case airflow keeps the housing near ambient.
