NavePoint Universal 1U 4-Post Shelf Rails 33.5" 2-pack

Universal 1U 4-Post Shelf Rails

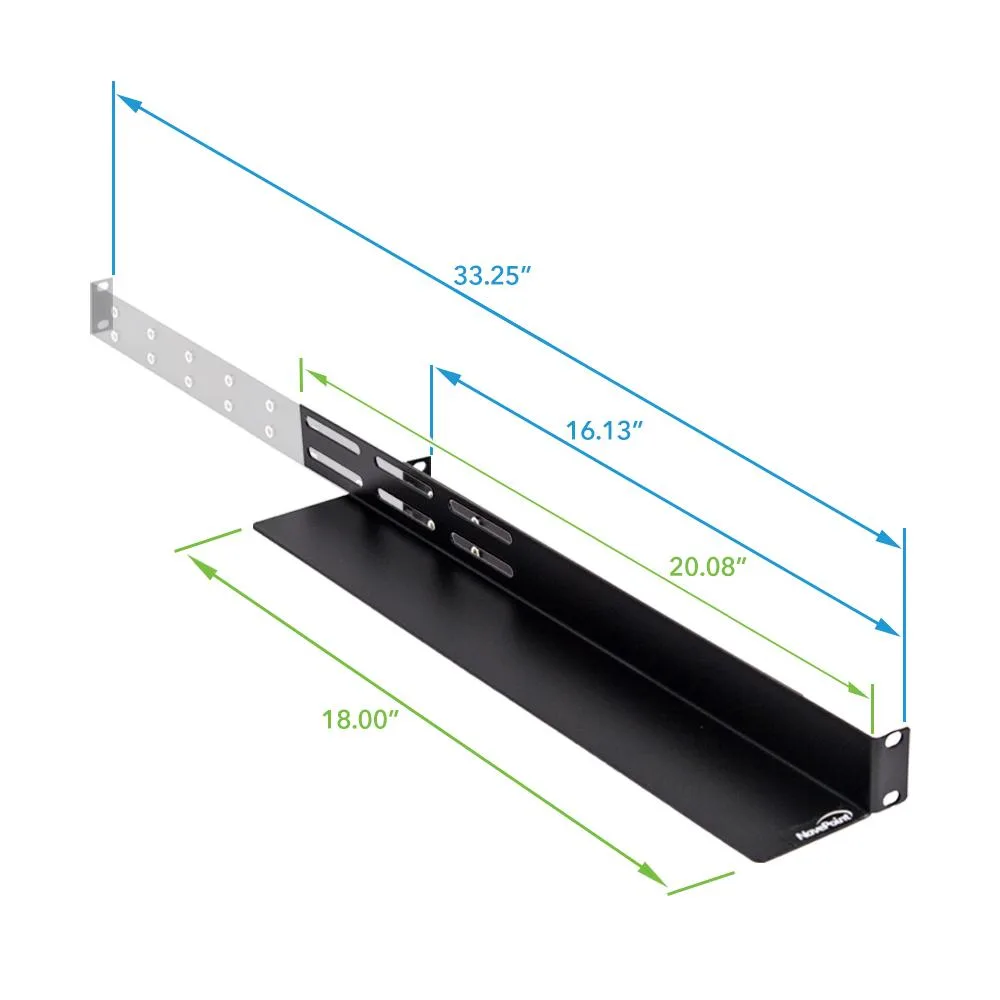

This two-pack of 1U rails lets administrators support equipment on standard 19, 23 or 30 inch four-post racks without drilling into the device itself. Depth adjusts to 33.25 inches and width adjusts to match the cabinet, so the same kit works across mixed rack fleets. Each rail set occupies a single rack unit and is built from 14 gauge cold-rolled steel finished in satin black. The kit suits data-centre teams who need a quick, brand-agnostic way to add shelf support.

Sustained-load behaviour

Rated for 110 pounds per pair, the rails hold that weight continuously without permanent deflection thanks to the 14 gauge steel construction. The satin black coating resists corrosion in humid server rooms, so capacity stays consistent over years of duty. No moving parts means no lubrication schedule or wear-related sag. Installers who exceed the 110 pound limit risk bending the flanges, so heavier appliances need a reinforced shelf instead.

Installation and common issues

Both 10-32 and 12-24 screw kits are included, letting technicians match either thread pattern without a second trip to the hardware bin. Depth and width adjust with simple bolts, so one person can align the rails in minutes. The most frequent mistake is assuming the 33.5 inch nominal depth fits every cabinet; always measure the front-to-rear rail spacing first. Missing the 1U height budget is the other common oversight — plan the rack layout before mounting.
