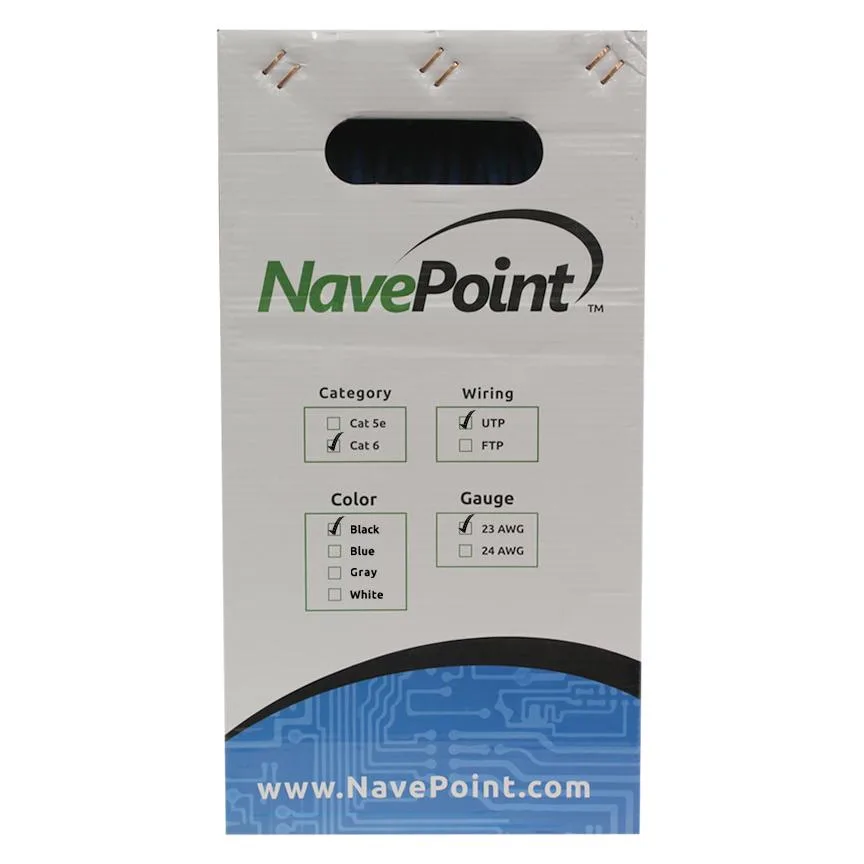

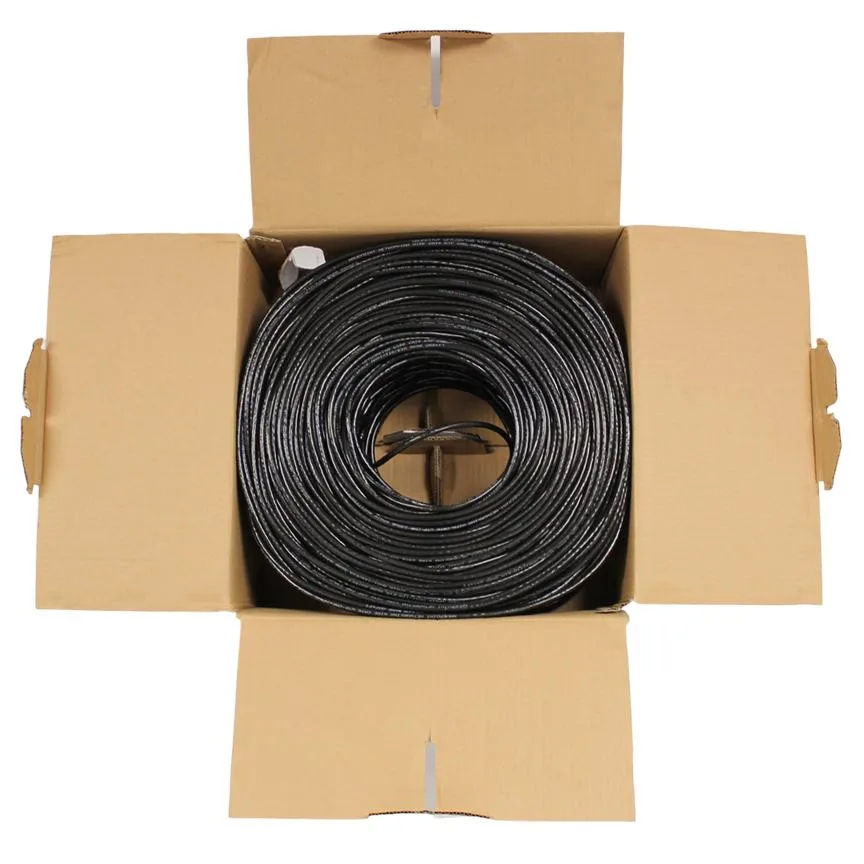

Black bulk Cat6 riser cable on a spool, 23 AWG solid UTP, 5.8 mm diameter, 1000 ft

NavePoint

NavePoint CAT6 CMR Riser UTP 23AWG 550MHz 1000FT Black Bulk network ethernet cable

SKU CH-6PB0-6NN9Y

Category 6 riser-rated UTP bulk cable with 23 AWG solid conductors, 550 MHz bandwidth and 5.8 mm diameter for in-wall and between-floor gigabit runs

  • TypeEthernet Crossover Raw
  • ColorBlack
  • Riser-rated CMR jacket approved for in-wall and between-floor runs
  • 23 AWG solid conductors support gigabit speeds over long distances
  • 550 MHz bandwidth headroom handles high-throughput applications
  • 8 mm diameter eases pulling through conduit and tight spaces
  • 1000-foot pull box provides continuous length for large installations

Ideal for structured wiring

This NavePoint Category 6 CMR riser cable is built for permanent installation in walls, between floors and in other non-plenum spaces. It suits installers and network managers who need a bulk 1000-foot pull for Gigabit Ethernet, VoIP, IP cameras, PoE devices and similar high-bandwidth applications.

Thermals noise and power

As a passive copper cable it generates no heat, produces no audible noise and draws no electrical power during operation. The 23 AWG solid conductors and 5.8 mm overall diameter are designed to maintain signal integrity up to the rated 550 MHz bandwidth without active cooling or power consumption.

Upgrade path and fit

It replaces older Category 5e or lower-grade runs where higher headroom and TIA/EIA 568.2 compliance are required for reliable Gigabit speeds. The jump is worth it when new drops must meet current Cat6 performance specs and fire-safety ratings for riser pathways.

Highlights

  • Riser-rated CMR jacket approved for in-wall and between-floor runs
  • 23 AWG solid conductors support gigabit speeds over long distances
  • 550 MHz bandwidth headroom handles high-throughput applications
  • 8 mm diameter eases pulling through conduit and tight spaces
  • 1000-foot pull box provides continuous length for large installations

Specifications

BrandNavePoint
TypeEthernet Crossover Raw
ColorBlack

Questions about this item

How do you pull the 5.8 mm diameter cable through wall cavities without kinking the 23 AWG solid conductors?

Unspool from the centre of the box, keep bends wider than four times the cable diameter, and avoid sharp staples that can deform the pairs.

What degradation appears first on a 550 MHz CMR run after years in a warm attic?

The jacket can become brittle and the insulation resistance drops, so re-certify with a Cat 6 field tester before trusting PoE loads.

At what length does the 23 AWG solid copper hit the ANSI/TIA 568.2 channel limit for 1 Gbps?

The standard allows 100 metres total channel length; beyond that, signal-to-noise margin falls below the Cat 6 requirement.
