Three black metal rack shelves with adjustable depth rails and mounting hardware

NavePoint

NavePoint Adjustable Rack Mount Shelf Rails 1U Full Depth 3-pack

SKU CH-6XYH-YW7DV

Adjustable 1U rails fit 19" 4-post racks, support 110 lbs, and extend to 33.25" deep

  • TypeRack Mount Cabinet
  • Rack Units1U
  • ColorBlack
  • Supports up to 110 lbs per shelf

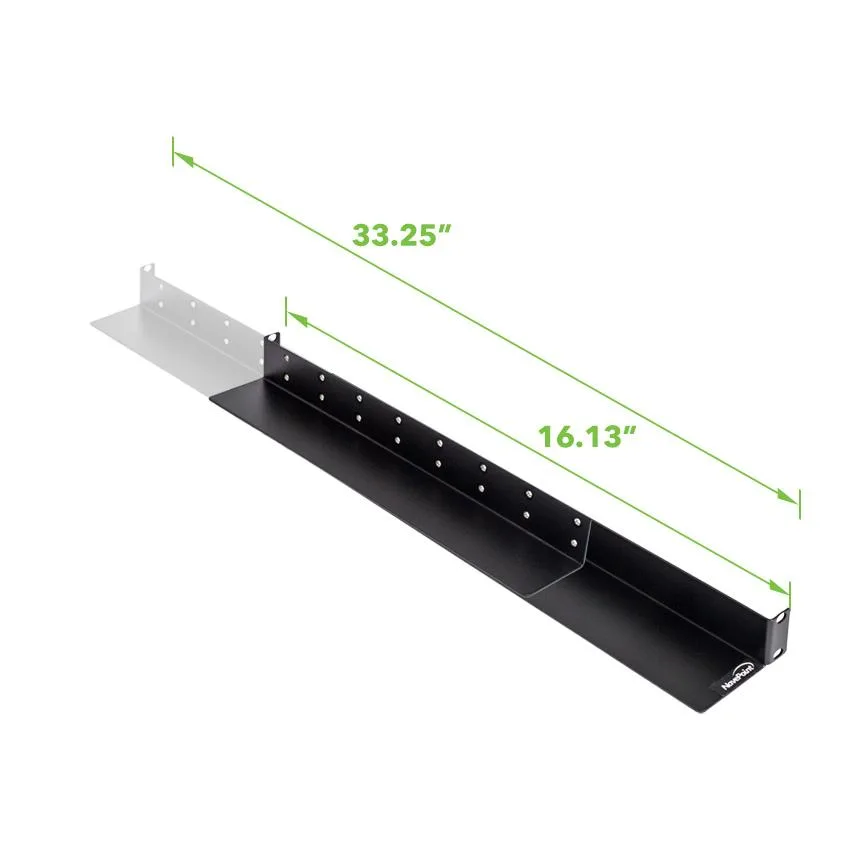

  • Adjusts to 33.25 inches depth for flexible fit
  • Fits standard 19 inch 4-post racks
  • Powder-coated cold rolled steel resists corrosion
  • Includes 10-32 and 12-24 mounting screws

Adjustable 1U Shelf Rails for 19-Inch Racks

These 1U shelf rails mount in standard 19-inch four-post racks and adjust to match enclosure depth. Each shelf measures 1.75 inches high by 2.75 inches wide by 20 inches deep. The three-pack supplies three complete shelf assemblies for multi-level deployments.

Cold-Rolled Steel Build with Powder-Coated Finish

High-quality cold-rolled steel carries an electro-static powder coat that resists rust and corrosion. The non-vented, lip-free shelves support up to 110 pounds each. Depth adjusts out to 33.25 inches to suit deeper cabinets without extra hardware.

Includes Both 10-32 and 12-24 Mounting Screws

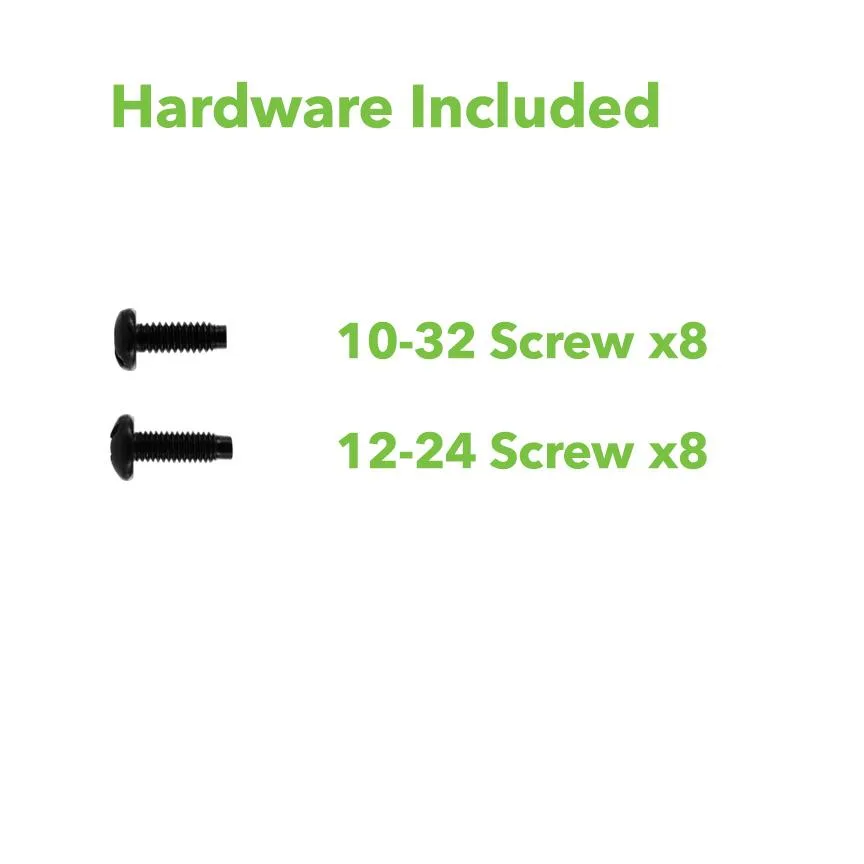

Every shelf ships with eight 10-32 screws and eight 12-24 screws for compatibility with common rack-thread types. Assembly is required before installation. Buyers needing ventilated trays, integrated cable management or tool-less mounting should evaluate other shelf designs.

Highlights

  • Supports up to 110 lbs per shelf
  • Adjusts to 33.25 inches depth for flexible fit
  • Fits standard 19 inch 4-post racks
  • Powder-coated cold rolled steel resists corrosion
  • Includes 10-32 and 12-24 mounting screws

Specifications

BrandNavePoint
TypeRack Mount Cabinet
Rack Units1U
ColorBlack

Questions about this item

How do I install the shelf rails in a standard 19" 4-post rack and what step is commonly missed?

Mount the rails to the front and rear posts using the included 10-32 or 12-24 screws, then slide the rails to match your rack depth up to 33.25 inches; the step often missed is tightening both front and rear screws after depth adjustment.

What maintenance or replacement will these rails need over time?

The cold-rolled steel with electro-static powder coating resists rust and corrosion, so no scheduled maintenance is required; replacement is only needed if the rails are bent or the 110 lb weight capacity is exceeded.

What limit appears first when the rails are loaded continuously at 110 lbs?

The 110 lb weight capacity per shelf is the primary limit; sustained loading at this maximum may cause gradual deflection of the 1.75"H x 2.75"W x 20"D steel rails.
