Black metal rack rails with mounting holes and adjustment slots, shown as a pair on a plain background

NavePoint

NavePoint Adjustable Rack Mount Rails 1U 110 lb 33.25" Depth

SKU CH-W1Q7-TRARP

Adjustable 1U rack rails support 110 lb and extend to 33.25" depth for standard 19" 4-post racks

  • TypeRack Mount Cabinet
  • Rack Units1U
  • ColorBlack
  • Supports up to 110 lb of equipment weight
  • Adjustable depth fits racks up to 33.25 inches deep
  • Cold-rolled steel with powder coat resists rust and corrosion
  • Includes both 10-32 and 12-24 mounting screws
  • Compact 1U height saves valuable rack space

1U adjustable rack rails

NavePoint adjustable rails fit standard 19 inch four-post racks and slide to match the enclosure depth. They occupy a single rack unit and are built from cold-rolled steel with a black electro-static powder coat. The set ships with both 10-32 and 12-24 mounting screws for common cage nuts. Assembly is required before use.

Cold-rolled steel construction

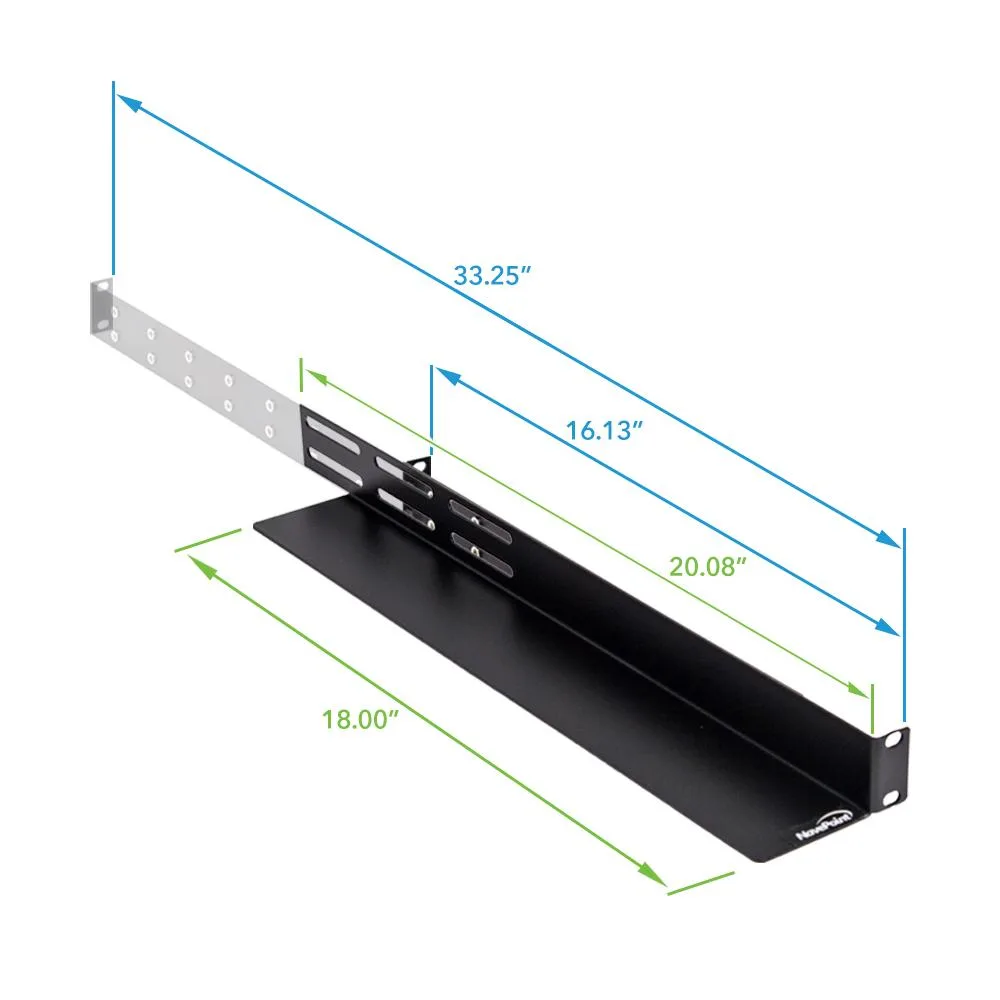

The rails measure 1.88 inches high by 2.75 inches wide by 20.13 inches deep when unextended. A non-vented, lip-free shelf surface supports equipment evenly across the width. Powder coating resists rust and corrosion in typical data-centre environments. Included hardware covers the two most common thread standards.

110 pound load limit

Maximum rated capacity is 110 pounds distributed across the shelf. Depth extends up to 33.25 inches to accommodate deeper cabinets. The fixed 1U height prevents stacking heavier chassis that need more vertical space. Builders needing higher weight ratings or ventilated trays must select a different model.

Highlights

  • Supports up to 110 lb of equipment weight
  • Adjustable depth fits racks up to 33.25 inches deep
  • Cold-rolled steel with powder coat resists rust and corrosion
  • Includes both 10-32 and 12-24 mounting screws
  • Compact 1U height saves valuable rack space

Specifications

BrandNavePoint
TypeRack Mount Cabinet
Rack Units1U
ColorBlack

Questions about this item

What rack standard do the NavePoint adjustable rails fit, and what is the maximum depth they support?

They fit standard 19-inch four-post racks and adjust up to 33.25 inches deep.

What are the rail dimensions and what mounting hardware is included?

Each rail measures 1.88 inches high, 2.75 inches wide, and 20.13 inches deep; the package includes eight 10-32 screws and eight 12-24 screws.

How are the rails installed, and what is a common mistake to avoid?

Assembly is required; attach the rails to the front and rear rack posts using the supplied screws, and take care not to mix the 10-32 and 12-24 thread types.
