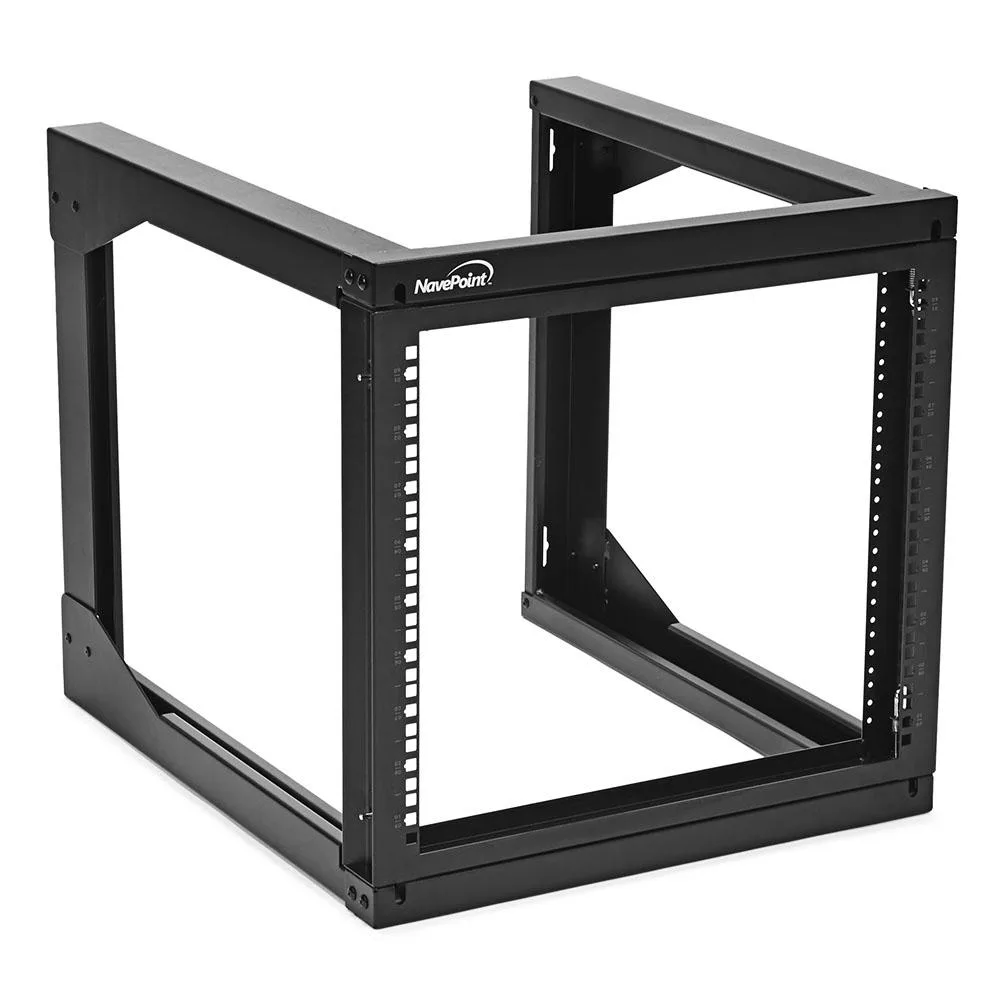

Black 9U open-frame wall rack with reversible swing gate, 24 inch depth

NavePoint

NavePoint 9U Wall Mount Swing Gate Rack 24" Depth

SKU CH-Y900-G99GN

A 9U wall-mounted swing-gate rack with 24-inch depth holds 19-inch servers and AV gear, opens 180 degrees for rear access, and supports 110 lbs

  • TypeRack Mount Cabinet
  • Rack Units9U
  • ColorBlack

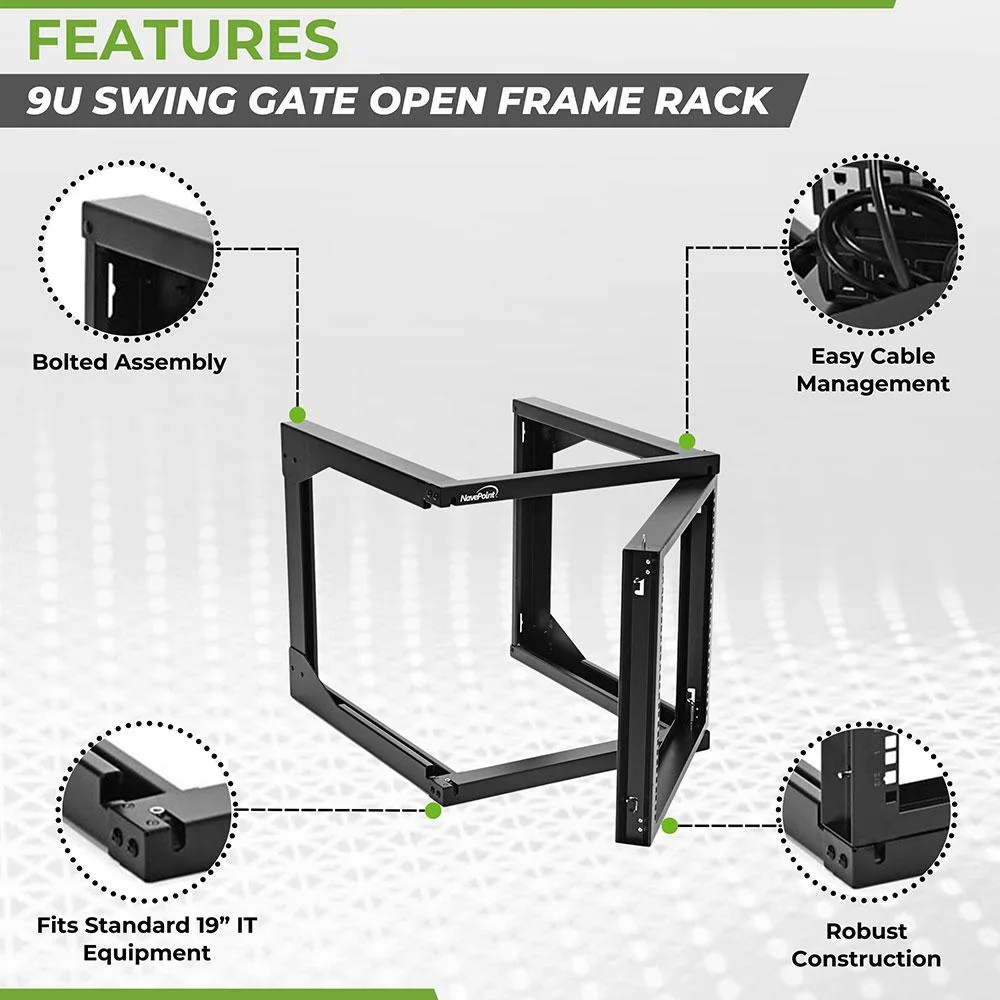

  • Holds standard 19-inch servers and AV gear in 9U wall space
  • Swing gate opens 180 degrees from left or right for rear access
  • Front gate reversible with threaded and square holes for any equipment
  • Built from 1.5mm cold rolled steel rated for 110 lbs capacity
  • Includes 10 M6 cage nuts, 10 M6 screws, 10 12-24 screws plus washers and wall hardware

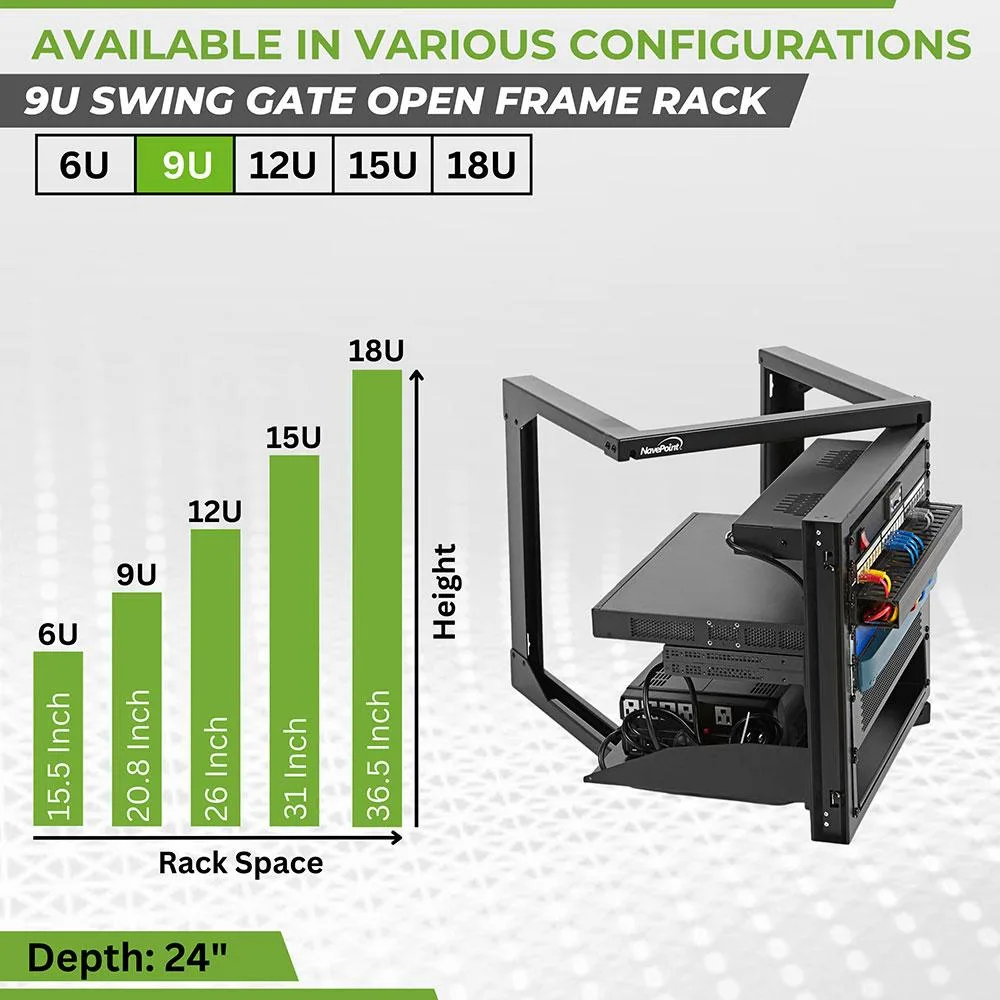

9U wall-mount rack for 19-inch gear

This 9U open-frame cabinet mounts on a wall and accepts standard 19-inch servers, networking switches and AV equipment. The dual-hinged front gate swings 180 degrees from either left or right, giving full rear access to cables and ports. Spring-loaded pivot pins let you reverse the hinge direction on site. The frame is built from 1.5 mm cold-rolled steel with a black powder-coated finish.

Sustained load and airflow

The open design allows unrestricted airflow around installed devices, so heat dissipates continuously during long operating periods. Rated to hold 110 lbs of equipment distributed across the 9U of vertical space. Numbered rack spaces make it simple to plan weight distribution and keep the centre of gravity low. No moving parts or fans mean there is nothing to wear out under constant use.

Installation notes and common issues

The package includes M6 cage nuts, M6 screws, 12-24 screws, M6 washers and six M6 wall-mounting screws for concrete or stud anchoring. The front gate is fully removable for bench assembly, then drops back into the pivots. Installers must verify that the wall structure can support the loaded weight and that the 24-inch depth clears any protruding cables or rear-mounted modules. Square and threaded hole patterns on the reversible gate cover most rack-mount hardware, but proprietary rail kits may need adapters.

Highlights

  • Holds standard 19-inch servers and AV gear in 9U wall space
  • Swing gate opens 180 degrees from left or right for rear access
  • Front gate reversible with threaded and square holes for any equipment
  • Built from 1.5mm cold rolled steel rated for 110 lbs capacity
  • Includes 10 M6 cage nuts, 10 M6 screws, 10 12-24 screws plus washers and wall hardware

Specifications

BrandNavePoint
TypeRack Mount Cabinet
Rack Units9U
ColorBlack

Questions about this item

Does the open-frame design keep the 9U rack cool when equipment runs continuously?

The open construction allows unrestricted airflow around the 19-inch gear, so heat dissipates passively without fans or ducts.

What wall structure and tools are needed before mounting the 24-inch deep cabinet?

You need a solid stud or concrete wall, a drill, a level, and the six included M6 wall-mounting screws to secure the 110 lb rated frame.

Will my older 12-24 threaded servers fit the reversible front gate?

Yes — one side of the gate has pre-tapped 12-24 holes, the other side has square holes, and both accept the supplied cage nuts and screws.
