NavePoint 9U Wall Mount Bracket Extendable 19" Server Rack

9U Wall Mount Bracket for 19-inch Equipment

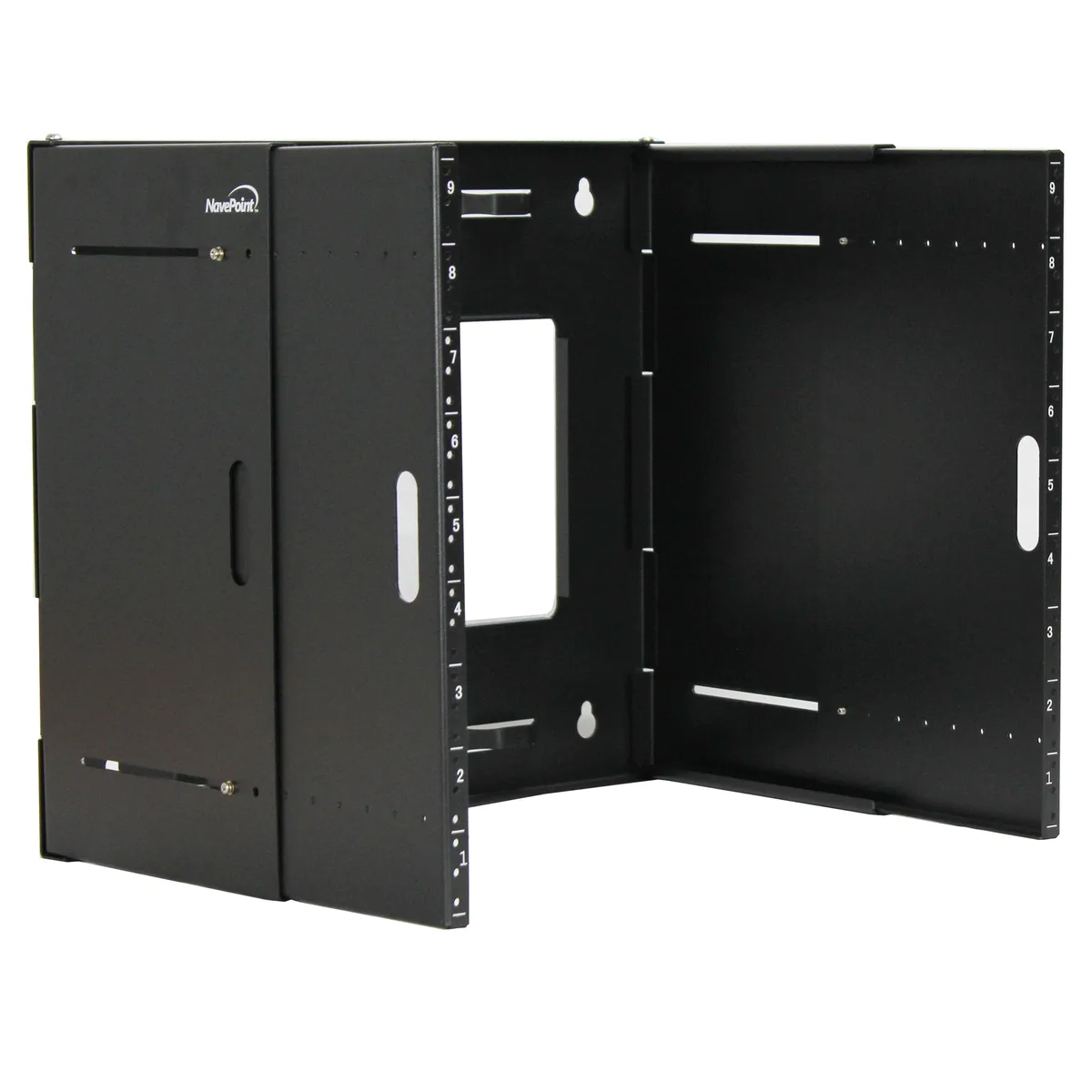

The NavePoint bracket provides nine rack units of space for standard 19-inch networking or telecommunications gear. It mounts directly to a wall and ships fully assembled in a black powder-coated finish. The cold-rolled steel frame folds flat when not in use, making it practical for temporary deployments or tight storage areas. It suits installers who need a compact, ready-to-use mounting solution.

Adjustable Depth Limits Equipment Choices

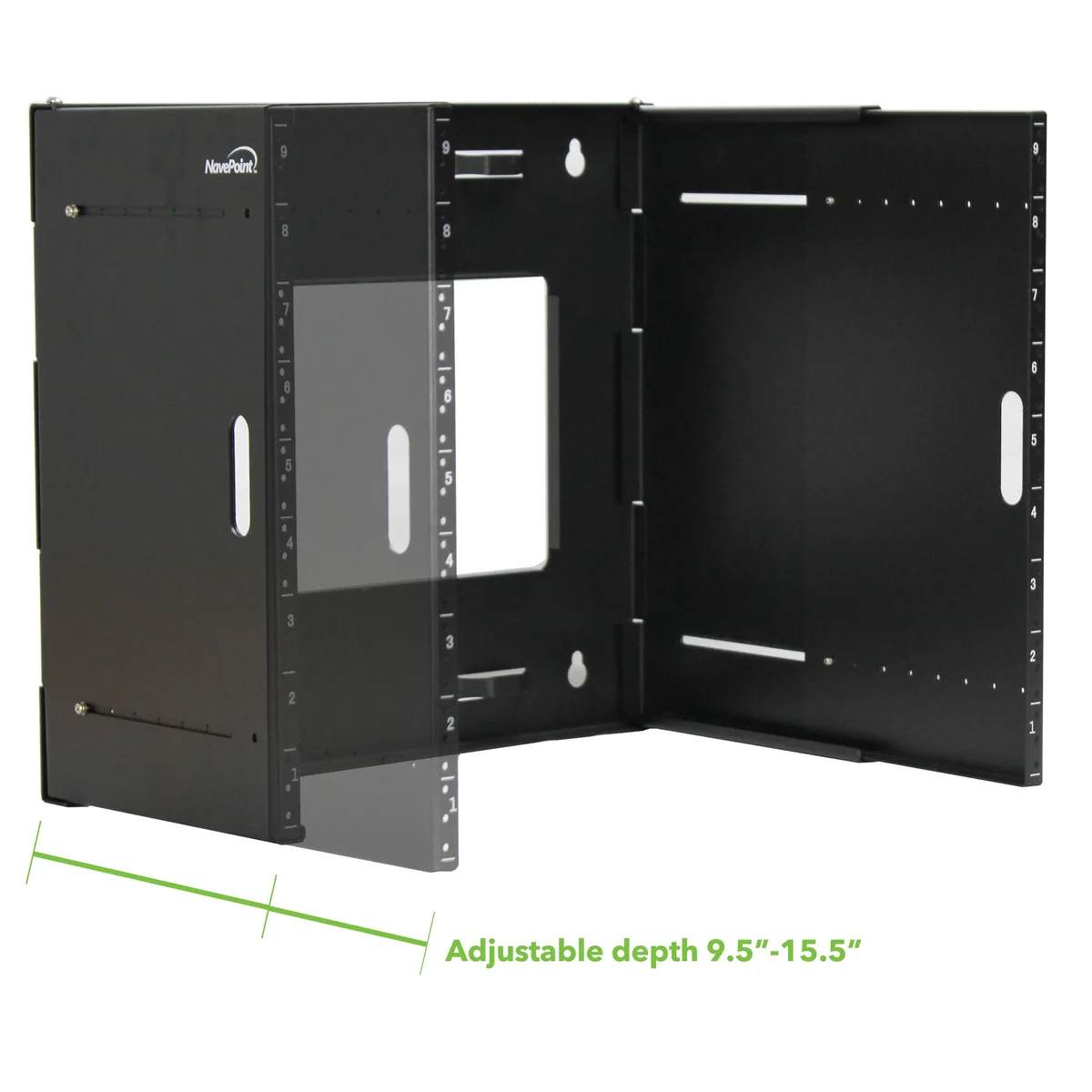

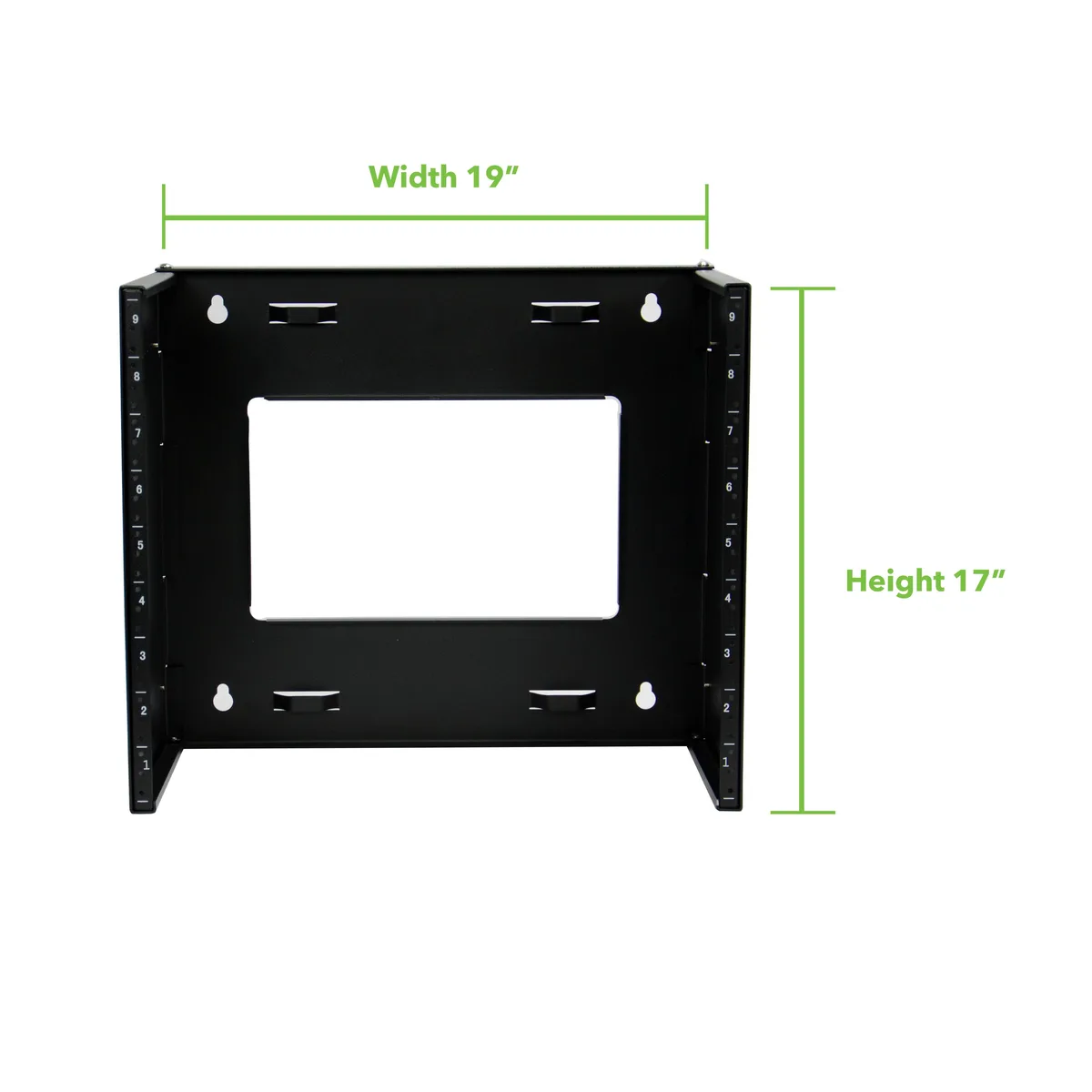

The bracket depth adjusts between 9.5 and 15.5 inches, so only devices that fit within that range can be installed. The overall height is 16.81 inches and the total weight capacity is 40 pounds, which restricts the bracket to lighter switches, patch panels or small appliances. Heavier servers or deep chassis will exceed the load rating or protrude beyond the maximum depth. Buyers who need more depth or a higher weight allowance must choose a different mounting system.

Simple Wall Installation With Common Pitfalls

Because the unit arrives fully assembled, no rack-building is required; the installer only needs to secure the bracket to a suitable wall structure. The threaded mounting holes accept standard cage nuts or screws for 19-inch equipment. The most frequent issues are anchoring into studs or masonry that cannot support the loaded weight and forgetting to verify device depth before drilling. Ensure the wall material and fixings match the 40-pound limit and that the equipment depth falls within the adjustable range.
