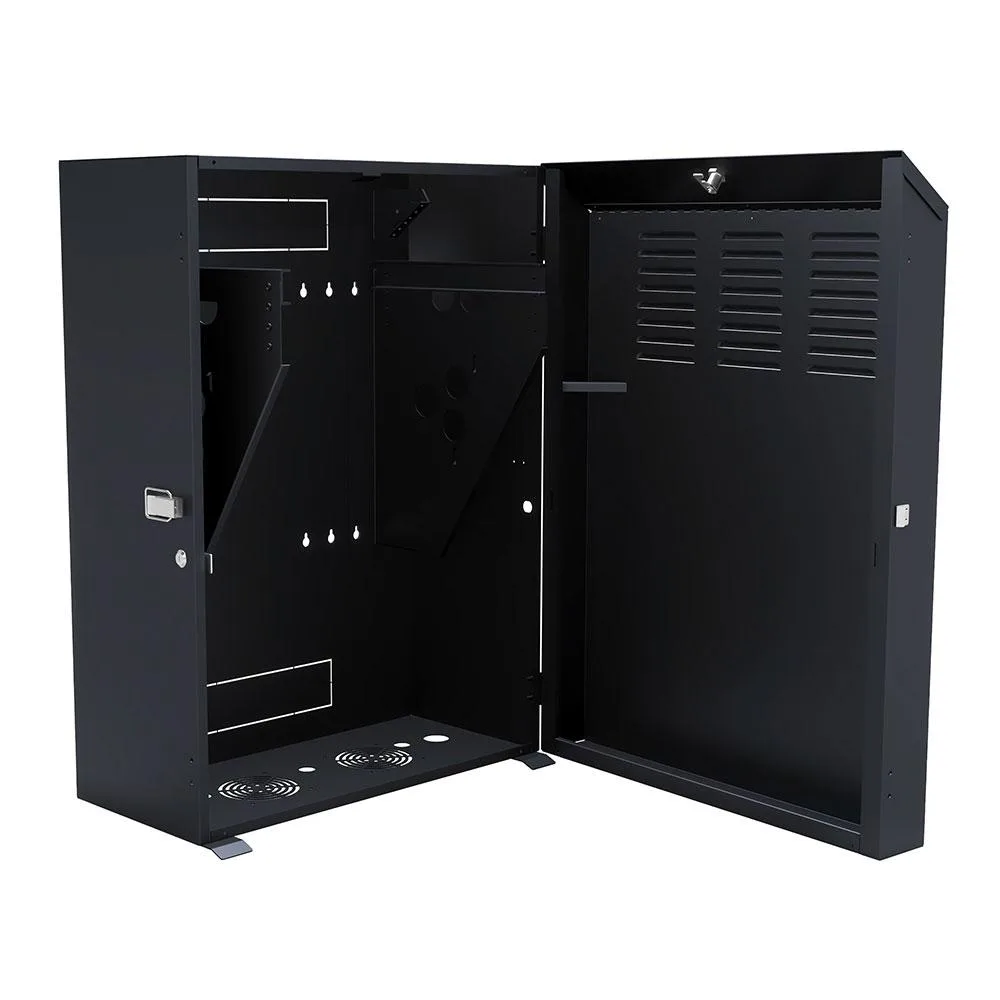

Black cold-rolled steel 8U vertical wall-mount rack enclosure with adjustable depth rails and lockable solid doors

NavePoint

NavePoint 8U Vertical Wall Mount Enclosure 24.6in–27.5in Switch Depth

SKU CH-M7HN-RCY4B

An 8U vertical wall-mount enclosure with adjustable 24.6in to 27.5in switch depth, CE compliant, cold-rolled steel, lockable doors, and cable knockouts

  • TypeRack Mount Cabinet
  • Rack Units8U
  • ColorBlack
  • Low-profile design fits tight spaces with vertical wall mounting
  • Adjustable rails from 24.6in to 27.5in suit 19in EIA equipment
  • Heavy-duty cold-rolled steel frame supports up to 132.27 lbs
  • Laser knockouts on top and bottom simplify cable routing
  • CE compliant with lockable doors for secure installation

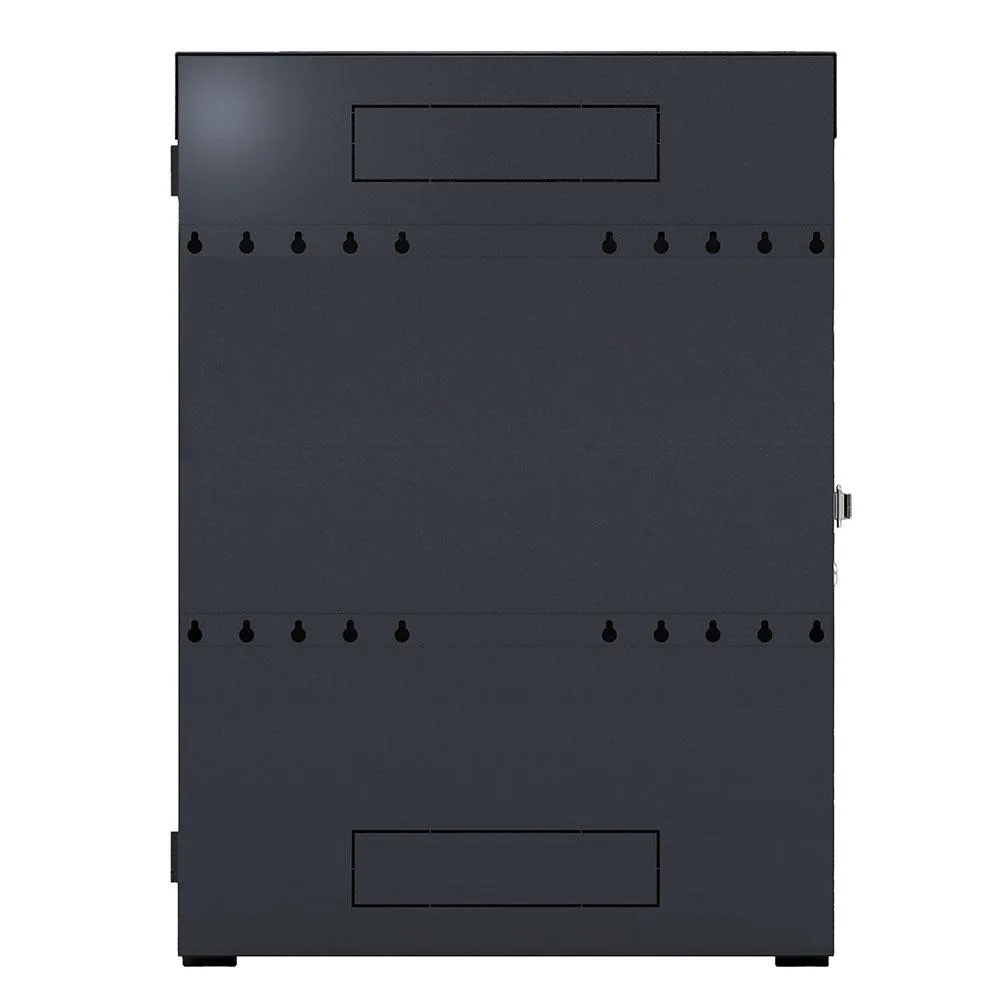

Vertical 8U Wall-Mount Enclosure

The NavePoint enclosure provides 8U of rack space in a vertical orientation that mounts directly to a wall. It accepts EIA 19-inch standard rack-mount equipment such as network switches and patch panels. The cold-rolled steel construction with a black electro-static powder coat (RAL 9005) is built for SOHO network installers who need to secure gear in tight locations like back-office closets or retail spaces.

Adjustable Depth Rails And Cable Knockouts

Mounting rails adjust from 24.6in (625mm) to 27.5in (700mm) deep, letting you fit a range of switch chassis lengths. Laser knockouts on the top and bottom simplify cable routing without drilling. The package includes 12 M6 screws, 12 12-24 screws and 4 M6 mounting bolts for equipment installation. Lockable solid doors with anti-theft top and left-side locks add physical security.

Wall Structure And Clearance Checks

Verify the mounting surface can support the enclosure plus up to 132.27 lbs of installed equipment. Confirm you have enough vertical wall height for the 8U profile and that the adjustable rail range matches your deepest device. Ensure the top and bottom knockout positions align with your planned cable paths and that door swing clearance is not blocked by adjacent obstacles.

Highlights

  • Low-profile design fits tight spaces with vertical wall mounting
  • Adjustable rails from 24.6in to 27.5in suit 19in EIA equipment
  • Heavy-duty cold-rolled steel frame supports up to 132.27 lbs
  • Laser knockouts on top and bottom simplify cable routing
  • CE compliant with lockable doors for secure installation

Specifications

BrandNavePoint
TypeRack Mount Cabinet
Rack Units8U
ColorBlack

Questions about this item

Will the M6 and 12-24 mounting screws need replacement over time?

The included 12 M6 screws and 12 12-24 screws are standard rack hardware; they only need replacing if threads strip or screws are lost during equipment changes.

What load limit applies when the 8U enclosure is fully populated?

The adjustable mounting rails support up to 132.27 lbs, which is the maximum weight for installed switches, patch panels or servers.

How much heat builds up inside the cabinet during continuous operation?

Laser knockouts on the top and bottom provide passive cable-entry airflow; no active cooling is included, so heat dissipation depends on room ventilation and equipment power draw.
