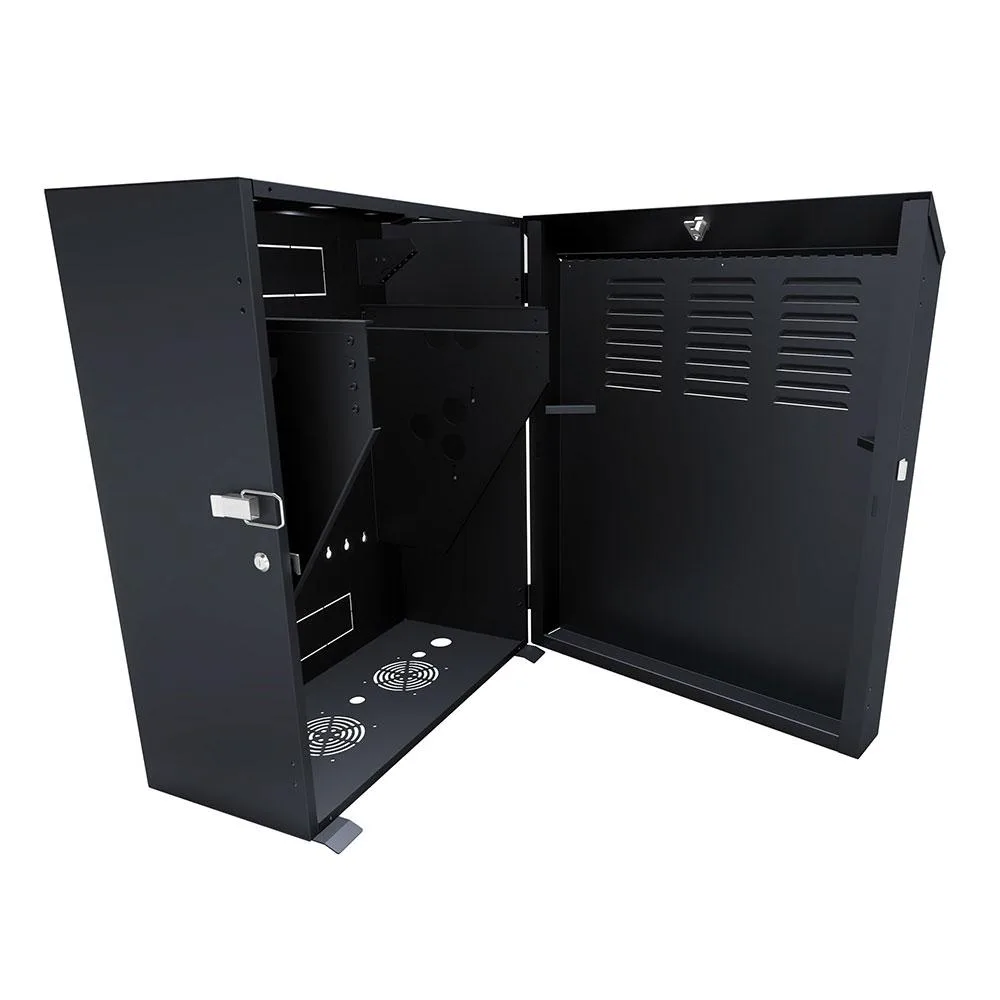

Black cold-rolled steel 8U vertical wall-mount enclosure with adjustable rails and lockable solid doors

NavePoint

NavePoint 8U Vertical Wall Mount Enclosure 16.7–19.6 in Switch Depth

SKU CH-6H0N-3RXBS

Vertical 8U wall-mount cabinet with adjustable 16.7–19.6 in depth for 19 in rack gear

  • TypeRack Mount Cabinet
  • Rack Units8U
  • ColorBlack
  • Conserves floor space with vertical wall-mount design
  • Adjustable rails fit equipment from 16.7 to 19.6 inches deep
  • Cold-rolled steel frame supports up to 132.27 lbs of gear
  • Laser knockouts on top and bottom simplify cable routing
  • Lockable solid doors secure equipment against unauthorized access

8U Vertical Wall Mount Enclosure

The NavePoint 8U vertical wall mount enclosure holds EIA 19-inch standard rack-mount switches, patch panels and servers. Adjustable mounting rails accept equipment from 16.7 inches to 19.6 inches deep. Heavy-duty cold-rolled steel construction supports up to 132.27 lbs. Lockable solid doors secure the installation in offices or retail back rooms.

Adjustable rails and cable knockouts

Depth adjustability from 425 mm to 500 mm lets the cabinet fit a wide range of switch chassis without modification. Laser knockouts on the top and bottom panels provide ready cable entry and routing paths. Included hardware supplies 4 M6 mounting bolts, 12 M6 screws and 12 12-24 screws for rail and equipment fastening.

Check wall structure and door clearance

Verify the mounting surface can carry the loaded weight of 132.27 lbs plus the cabinet itself. Ensure the vertical orientation suits the available wall height and that the solid doors can swing open fully for maintenance. Confirm the 19-inch rack spacing matches your equipment hole pattern before ordering.

Highlights

  • Conserves floor space with vertical wall-mount design
  • Adjustable rails fit equipment from 16.7 to 19.6 inches deep
  • Cold-rolled steel frame supports up to 132.27 lbs of gear
  • Laser knockouts on top and bottom simplify cable routing
  • Lockable solid doors secure equipment against unauthorized access

Specifications

BrandNavePoint
TypeRack Mount Cabinet
Rack Units8U
ColorBlack

Questions about this item

How often should the lockable solid doors and M6/12-24 mounting hardware be inspected or replaced?

The enclosure uses lockable solid doors with anti-theft top and left side locks plus included M6 bolts and 12-24 screws; inspect hinges and fasteners annually and tighten or replace any that show wear.

What is the maximum equipment weight the adjustable mounting rails can support before deflection becomes an issue?

The vertical mounting rails are rated for up to 132.27 lbs of rack-mount equipment across the 8U height.

How much heat can the laser knockouts on the top and bottom dissipate when the enclosure runs continuously?

Laser knockouts on the top and bottom provide passive cable routing and airflow; they have no active cooling, so heat dissipation depends on the installed equipment and ambient conditions.
