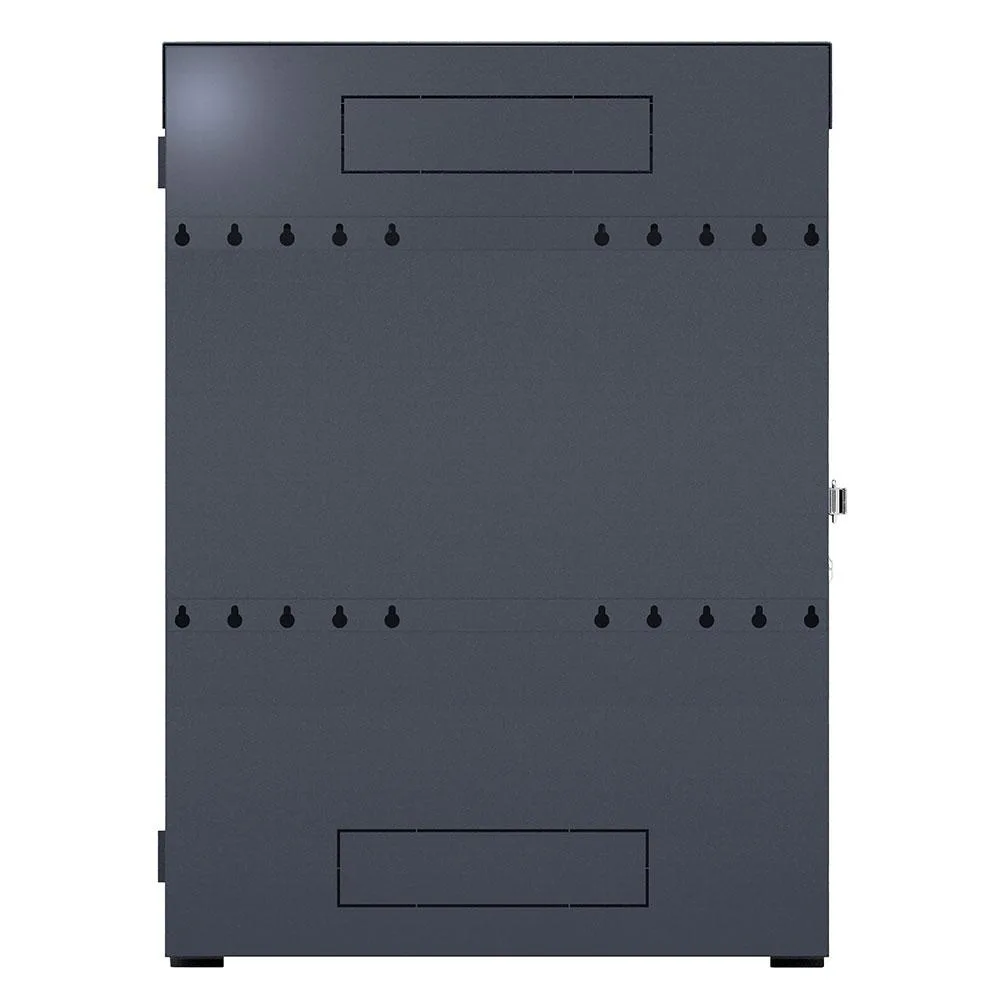

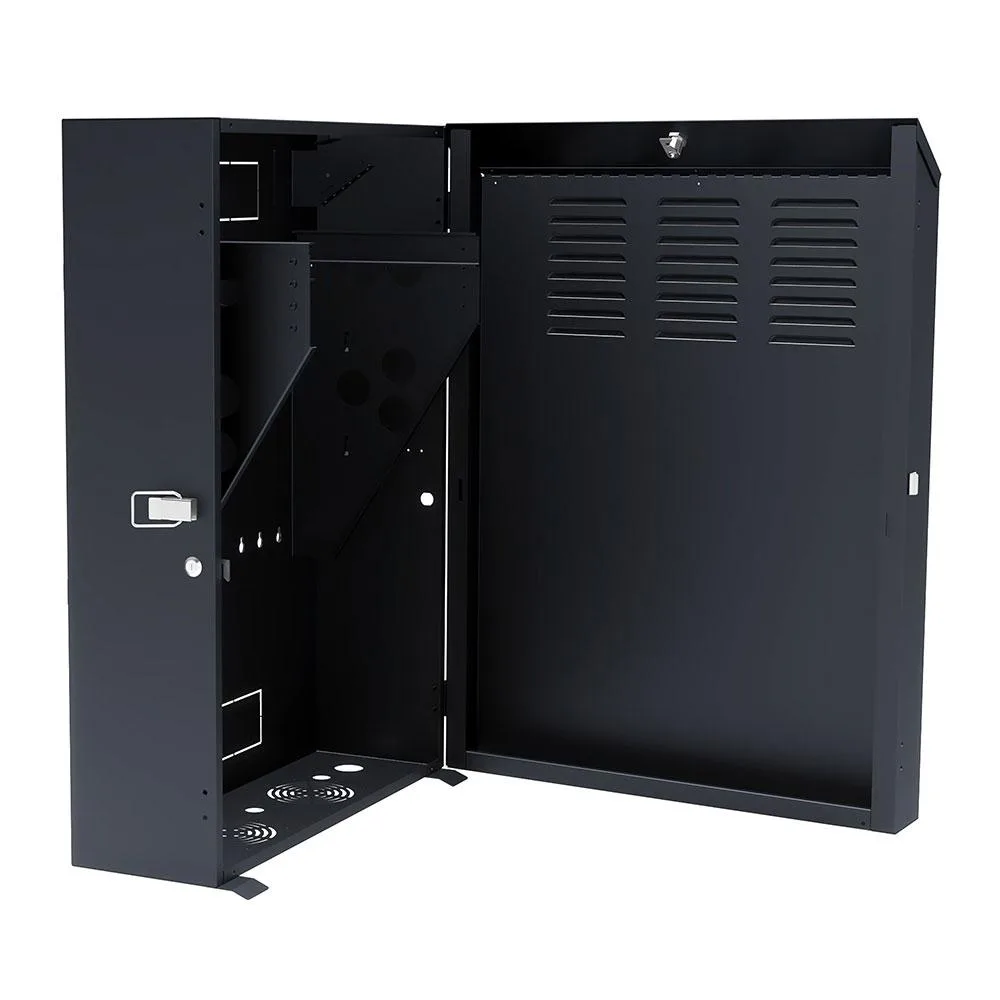

Black 6U vertical wall-mount server rack with adjustable depth rails and lockable solid doors

NavePoint

NavePoint 6U Vertical Wall Mount Server Rack 24.6in to 27.5in Depth Black RAL9005

SKU CH-4ZMN-87NQ8

A 6U vertical wall-mount rack holds 19-inch equipment with adjustable 24.6 to 27.5 inch depth, CE compliant, cold-rolled steel, lockable doors, and cable knockouts

  • TypeRack Mount Cabinet
  • Rack Units6U
  • ColorBlack
  • Vertical mounting saves floor space in tight areas
  • Adjustable rail depth 24.6in to 27.5in fits varied 19-inch gear
  • Lockable solid doors secure installed equipment
  • Laser knockouts top and bottom simplify cable routing
  • Heavy-duty cold-rolled steel frame supports 132.27 lbs

6U Vertical Wall-Mount Enclosure

The NavePoint 6U vertical wall-mount enclosure is built from cold-rolled steel with a black RAL 9005 powder coat. It provides six rack units of EIA 19-inch compliant space for network switches, patch panels and shallow servers. Adjustable mounting rails accept equipment depths from 24.6 inches to 27.5 inches. Lockable solid doors and side panels secure the installed hardware.

Replaces Floor-Standing Racks in Tight Spaces

Wall mounting conserves floor area in closets, back offices or retail back-rooms where a freestanding cabinet would not fit. The jump is worth it when you need to locate networking gear close to the endpoint but have no spare floor footprint. Rails rated for 132.27 lbs support most switches and patch panels without reinforcement.

Check Wall Structure and Clearance First

Verify that the mounting surface can carry the loaded enclosure weight and that studs or anchors align with the included hardware. Confirm the 24.6 to 27.5 inch adjustable rail range matches your deepest device. Ensure top and bottom laser knockouts suit your cable routing plan and that door swing clearance is available in the chosen location.

Highlights

  • Vertical mounting saves floor space in tight areas
  • Adjustable rail depth 24.6in to 27.5in fits varied 19-inch gear
  • Lockable solid doors secure installed equipment
  • Laser knockouts top and bottom simplify cable routing
  • Heavy-duty cold-rolled steel frame supports 132.27 lbs

Specifications

BrandNavePoint
TypeRack Mount Cabinet
Rack Units6U
ColorBlack

Questions about this item

How much wall depth does the 24.6in to 27.5in adjustable rail range require?

The mounting rails slide between 24.6in (625mm) and 27.5in (700mm), so the enclosure projects that far from the wall once installed.

Which screws and bolts are used to secure 19in equipment to the M6 rails?

Use the included 12 x M6 screws or 12 x 12-24 screws for the rack ears, and the 4 x M6 bolts to anchor the rails to the cabinet frame.

What part of the cable-entry knockouts needs attention after the first cable pull?

Laser knockouts on top and bottom punch out once; after routing cables, fit the supplied grommets or bushings to protect the cable jackets from the raw metal edges.
