Black vertical wall-mount rack cabinet, 6U, adjustable depth 525 to 600mm, lockable solid doors, cold-rolled steel

NavePoint

NavePoint 6U Vertical Wall Mount Enclosure 525-600mm Depth Black RAL9005

SKU CH-HPRR-SRKRW

A 6U vertical wall-mount enclosure with adjustable 525mm to 600mm depth for 19-inch rack equipment, saving floor space and including mounting hardware

  • TypeRack Mount Cabinet
  • Rack Units6U
  • ColorBlack
  • Conserves floor space with vertical wall-mount design
  • Adjustable 525-600mm rail depth fits varied 19-inch equipment
  • Heavy-duty cold-rolled steel construction supports 132.27 lbs
  • Laser knockouts on top and bottom simplify cable routing
  • Lockable solid doors and side locks secure installed hardware

6U Vertical Wall Mount Enclosure

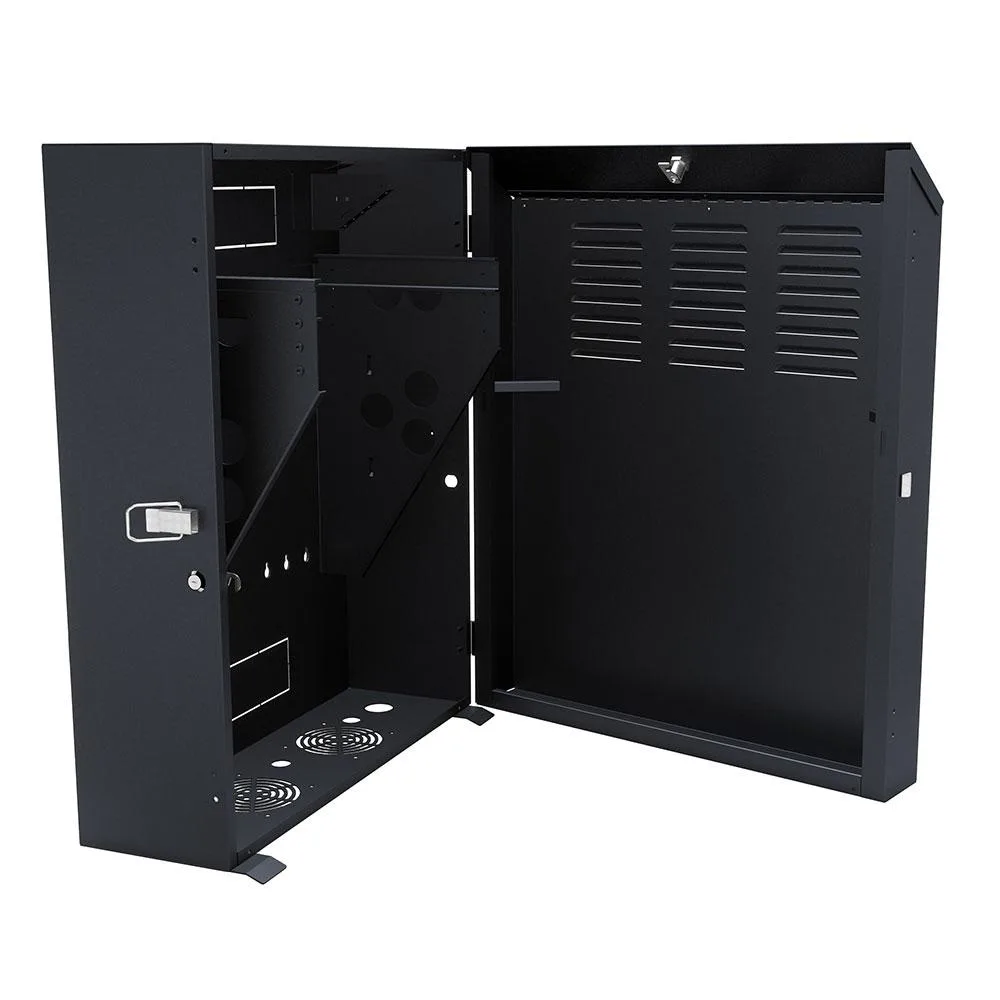

The NavePoint 6U vertical wall mount enclosure holds EIA 19-inch standard rack-mount equipment such as network switches and patch panels. Adjustable mounting rails span 525 mm to 600 mm deep and support up to 132.27 lbs. Solid lockable doors and anti-theft top and left side locks secure the hardware. Heavy-duty cold-rolled steel with electrostatic powder coating in black RAL9005 provides a low-profile finish.

Adjustable Rail Depth Limits

Mounting rails adjust continuously between 525 mm and 600 mm (20.6 in to 23.6 in). Equipment deeper than 600 mm cannot be mounted. The enclosure accepts only devices that conform to the EIA 19-inch rack standard. Maximum load on the rails is 132.27 lbs; heavier gear requires additional support. CE compliance covers the enclosure itself, not the installed equipment.

Pre-Installation Checks

Verify that the wall structure can bear the combined weight of the enclosure plus mounted devices up to 132.27 lbs. Confirm available vertical clearance for a 6U height and horizontal space for the 600 mm maximum depth. Ensure cable routing matches the laser knockouts on the top and bottom panels. Included hardware provides M6 bolts, M6 screws and 12-24 screws; other thread types need separate fixings.

Highlights

  • Conserves floor space with vertical wall-mount design
  • Adjustable 525-600mm rail depth fits varied 19-inch equipment
  • Heavy-duty cold-rolled steel construction supports 132.27 lbs
  • Laser knockouts on top and bottom simplify cable routing
  • Lockable solid doors and side locks secure installed hardware

Specifications

BrandNavePoint
TypeRack Mount Cabinet
Rack Units6U
ColorBlack

Questions about this item

Should I pick the 525 mm or 600 mm mounting depth for my switches?

The rails adjust continuously from 525 mm to 600 mm so you can set the exact depth each device needs without choosing a fixed version.

What does the 132.27 lbs rail rating mean when the cabinet is on my wall?

The two vertical rails together support up to 132.27 lbs of rack-mounted gear; your wall fixings must also handle that load.

How does the EIA 19-inch standard limit what I can install?

Only equipment built to the EIA 19-inch rack width fits the included M6 and 12-24 threaded holes.
