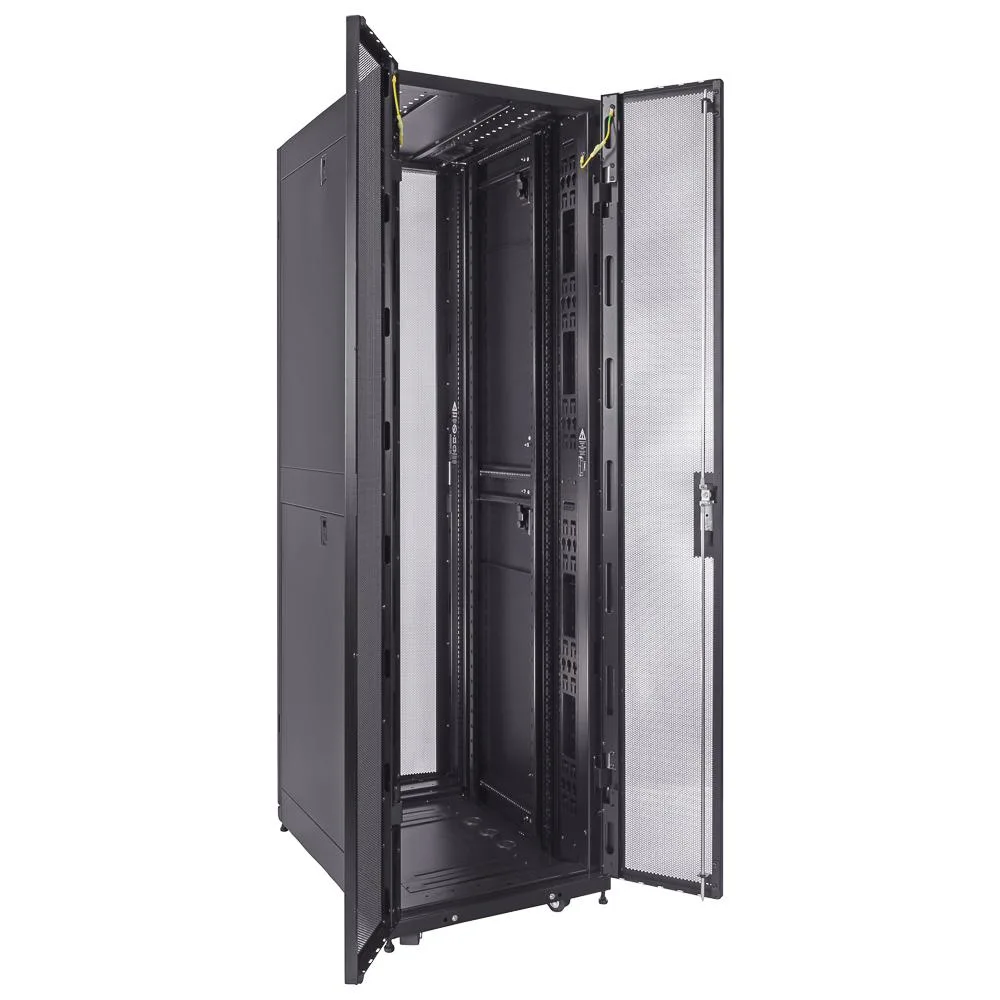

Black 42U server rack cabinet with perforated doors and cable management top

NavePoint

NavePoint 42U Server Rack Cabinet 800mm Deep Commercial Series

SKU CH-AKQQ-JB376

A 42U server cabinet 800mm deep with 3000 pound static capacity, perforated doors for airflow, adjustable 19-inch rails and full-height cable management

  • TypeFull Height
  • Rack Units42U
  • ColorBlack
  • 3000 lb static capacity supports dense server deployments
  • 42U height with 19-inch EIA-310 rails fits standard rack gear
  • 800 mm depth and 893 mm overall depth accommodate deep equipment
  • Perforated reversible doors and split rear doors maximise airflow
  • Adjustable rails in 10 mm steps plus full-height cable managers simplify installation

42U Server Rack Cabinet 800mm Deep

The NavePoint Commercial Series cabinet provides 42U of rack space in a 600mm wide, 893mm deep enclosure. It is built for high-density networking applications and supports any EIA-310 compliant 19-inch rack mountable device such as servers, patch panels, PDUs and routers. The frame carries a 3000 pound static weight capacity and meets RoHS, PCI, HIPAA and IP20 Protection Grade standards.

Adjustable Mounting Rails And Perforated Doors

Square cage nut mounting rails are marked in U increments and adjustable in 10 mm steps between 6 and 21.5 inches deep. Reversible, lockable front and split French rear doors are perforated to increase airflow through the cabinet. Four quick-release, lockable side panels give easy access to installed equipment during maintenance.

Full Height Cable Management Rails Included

Bundled full height cable management rails enable tidy routing of power and data cables inside the cabinet. The cable management top panel adds further organisation for overhead cabling. These included accessories reduce the need for separate cable management purchases and help maintain clear airflow paths around active equipment.

Highlights

  • 3000 lb static capacity supports dense server deployments
  • 42U height with 19-inch EIA-310 rails fits standard rack gear
  • 800 mm depth and 893 mm overall depth accommodate deep equipment
  • Perforated reversible doors and split rear doors maximise airflow
  • Adjustable rails in 10 mm steps plus full-height cable managers simplify installation

Specifications

BrandNavePoint
TypeFull Height
Rack Units42U
ColorBlack

Questions about this item

How do I adjust the mounting rails to the correct depth for my servers?

Slide each rail on its brackets until the marked scale shows the required depth between 6 and 21.5 inches, then tighten the bolts in 10 mm increments so the u-markings stay aligned on both sides.

Which parts will need replacement after years of use?

The lock cylinders on the reversible front door, split French rear doors and four quick-release side panels are the only mechanical items likely to wear out; cage nuts and square-hole rails rarely fail.

At what load does the frame approach its structural limit during continuous operation?

The cabinet is rated for a 3000 pound static weight capacity; sustained loads near that figure will stress the welded frame and adjustable rails before any other component.
