Black 2U vented cantilever shelf 19 inch wide 22 inch deep with lip and mounting screws

NavePoint

NavePoint 2U Heavy Duty Vented Cantilever Fixed Shelf 22-Inch 100 lb Black

SKU CH-4TW1-CEQGG

Vented 2U cantilever shelf mounts to 19-inch racks, holds 100 lb with slotted airflow

  • TypeRack-Mounted
  • Rack Units2U
  • ColorBlack
  • 100 lb load rating for heavy equipment
  • 2U rack height fits standard 19 inch cabinets
  • Slotted venting improves airflow to prevent overheating
  • Front-mount cantilever design allows quick installation
  • Includes 10-32 and 12-24 mounting screws

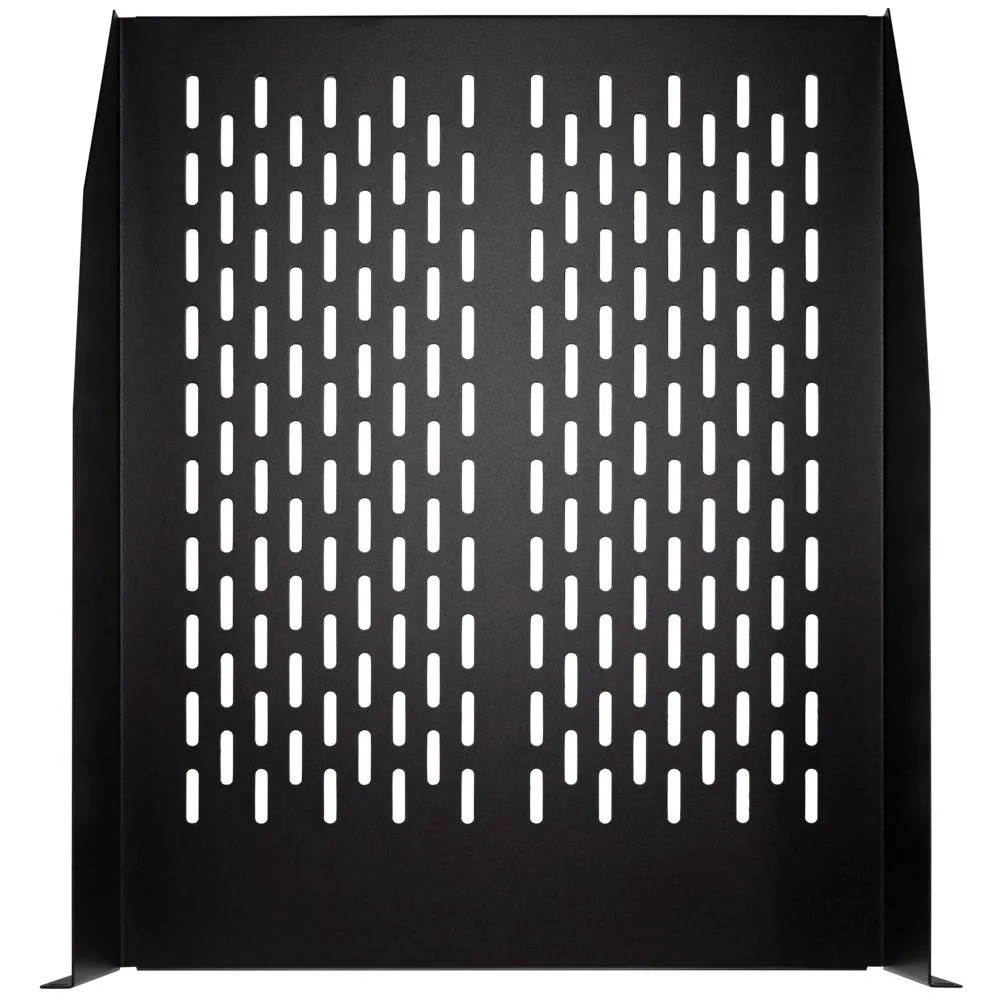

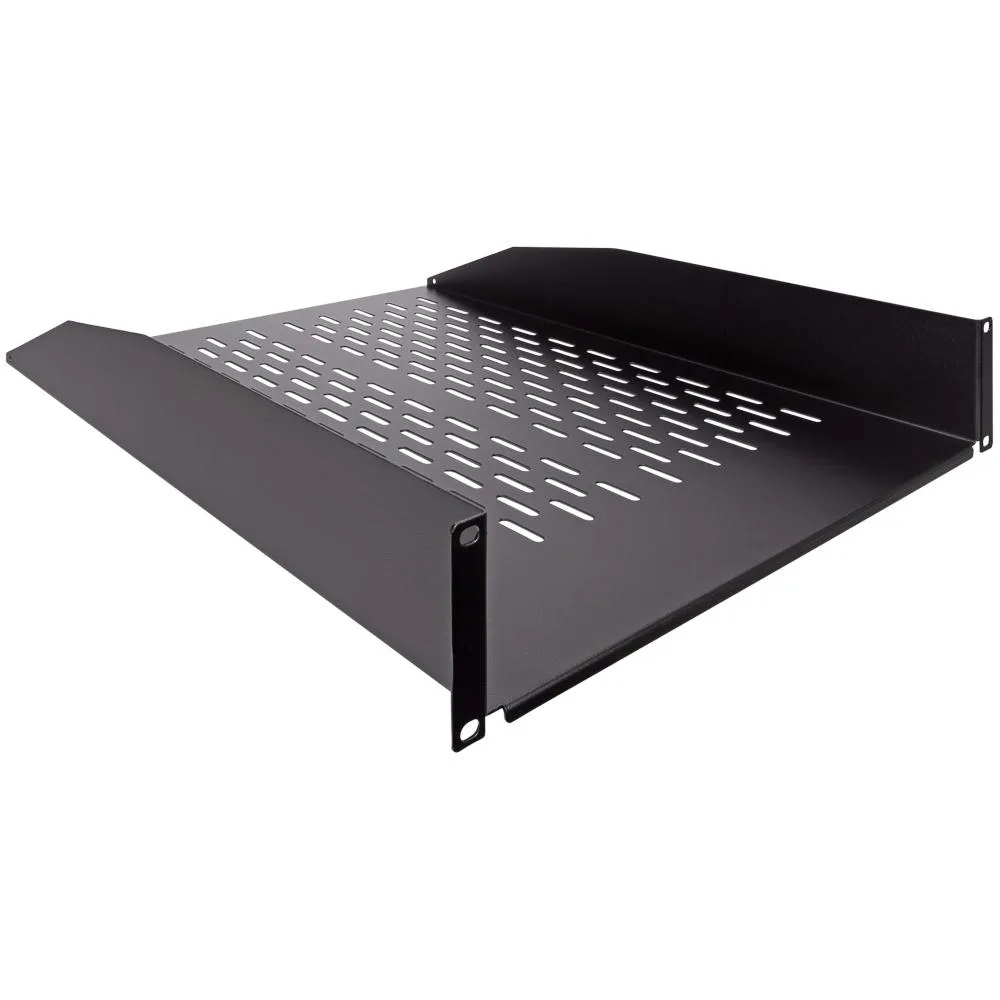

2U Vented Cantilever Shelf

This 2U cantilever shelf mounts to any standard 19-inch rack and extends 22 inches deep. It is built from 2mm cold-rolled steel with a black electro-static powder coat and arrives fully assembled. The slotted venting helps airflow around mounted equipment. It suits network gear, small servers or accessories that need front-only support.

Front-Mount Installation With Dual Screw Sets

The package includes four 10-32 screws and four 12-24 screws to match common rack rail threads. Mounting requires only a screwdriver and the shelf bolts directly to the front flanges of the rack. A frequent issue is thread mismatch if the wrong screw set is chosen, so verify rail threading before starting. No rear brackets or cage nuts are supplied or required.

100 lb Static Load On Fixed Lip Design

The fixed lip at the front edge helps keep equipment from sliding forward under vibration. The shelf is rated for 100 pounds of evenly distributed static weight. Because the cantilever has no rear support, sustained heavy loads will deflect the tray more than a four-post shelf would. It is not suited for deep, heavy chassis that need mid-span support.

Highlights

  • 100 lb load rating for heavy equipment
  • 2U rack height fits standard 19 inch cabinets
  • Slotted venting improves airflow to prevent overheating
  • Front-mount cantilever design allows quick installation
  • Includes 10-32 and 12-24 mounting screws

Specifications

BrandNavePoint
TypeRack-Mounted
Rack Units2U
ColorBlack

Questions about this item

How can I confirm the shelf is holding its rated load after mounting?

Verify the shelf remains level and shows no bending when equipment totalling up to 100 lb is placed on it; the 2 mm cold-rolled steel and front-mount design should keep the 22-inch deep surface flat under that weight.

Which fasteners are included and what else might I need for a standard 19-inch rack?

The package supplies four 10-32 screws and four 12-24 screws for the rack rails; no additional hardware is required for typical 19-inch wide cabinets.

Should I choose the 22-inch deep model or a different depth for my 2U space?

Select this 22-inch deep version when your rack depth and equipment clearance match that dimension; it provides a 3.5-inch high, 19-inch wide vented platform rated for 100 lb in a 2U slot.
