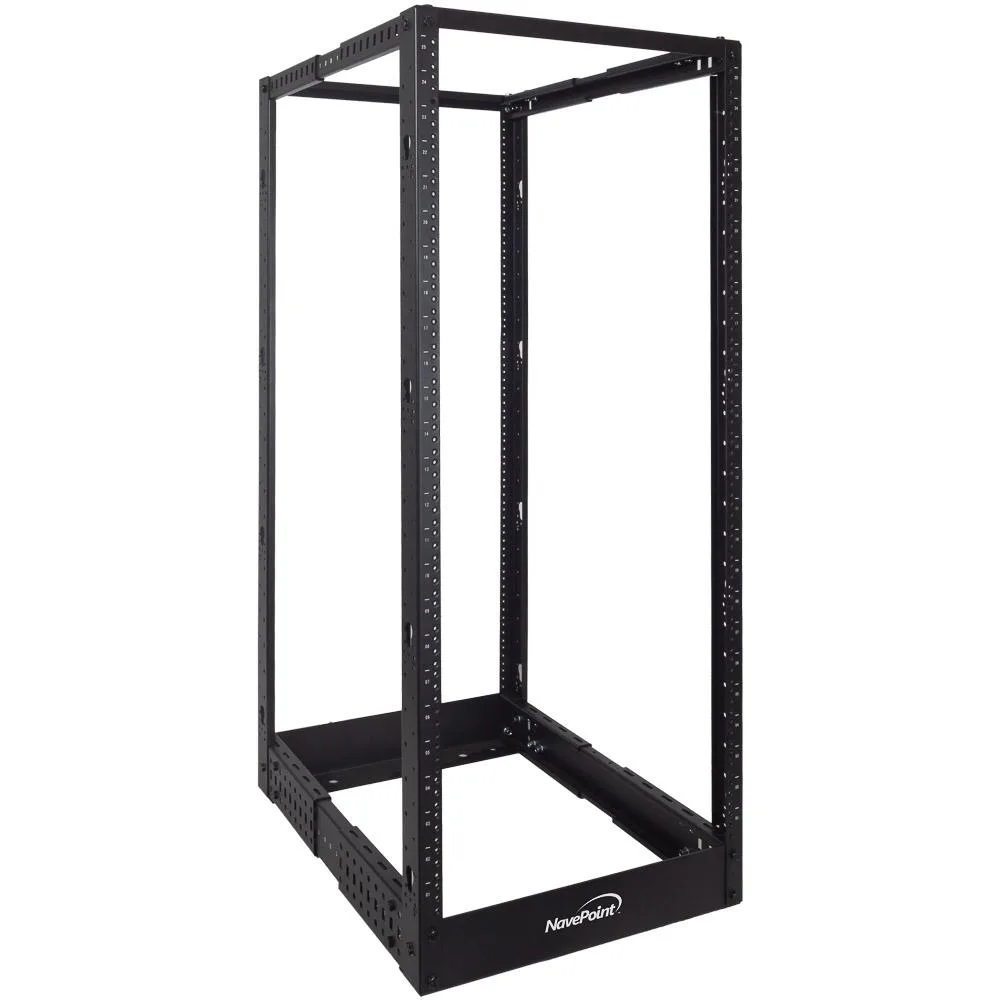

Black open-frame four-post server rack, threaded rails, 25U, powder-coated steel

NavePoint

NavePoint 25U 4-Post Open Frame Server Rack 4.5ft Threaded Black

SKU CH-XF7V-FM5CK

Open-frame 25U server rack with 12-24 threaded rails, adjustable 22-40 inch depth and 1322 lb static load rating

  • TypeRack Mount Cabinet
  • Rack Units25U
  • ColorBlack
  • 25U capacity fits standard 19" rack equipment
  • Threaded 12-24 rails accept common server screws
  • Adjustable depth from 22 to 40 inches suits varied gear
  • Heavy-duty 16-gauge steel frame rated for 1322 lbs static load
  • Open-frame design enables unrestricted airflow and easy access

25U Open Frame Rack

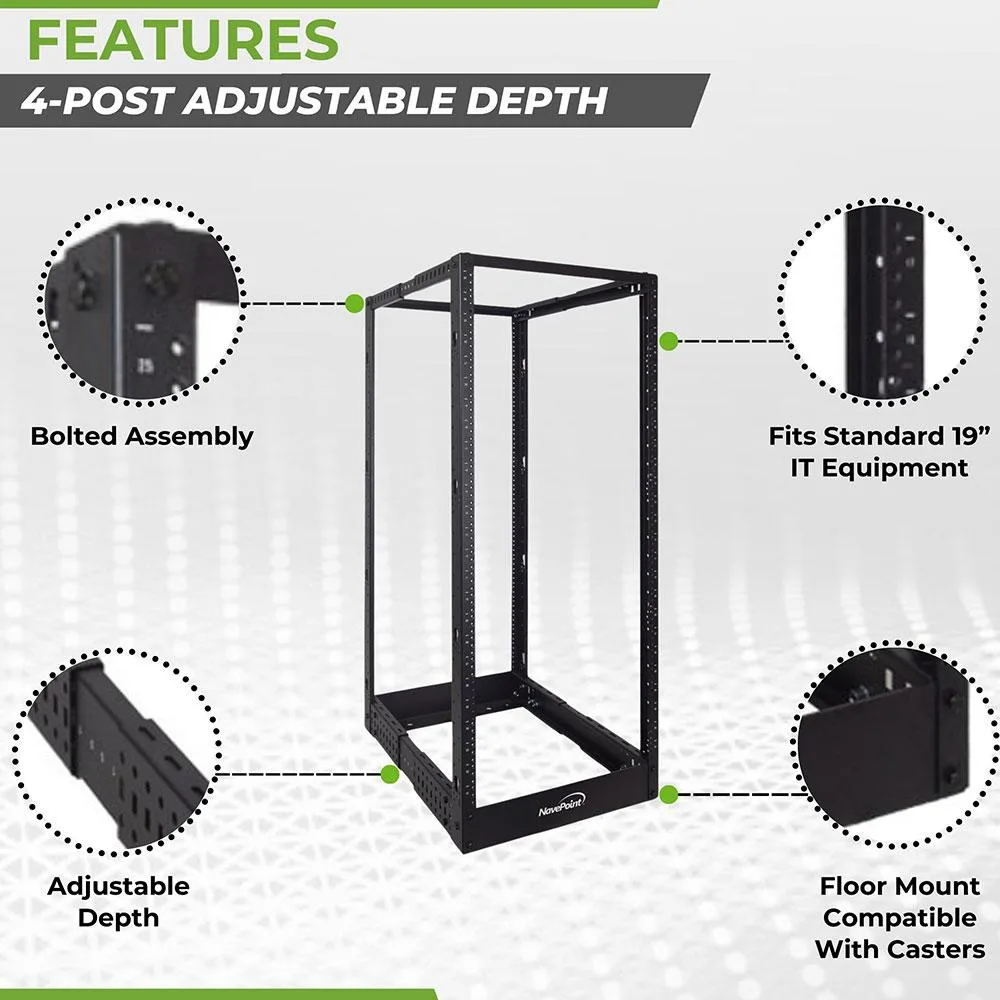

The NavePoint 25U four-post open frame rack provides 25 rack units of threaded 12-24 mounting space in a black powder-coated steel frame. It supports standard 19-inch equipment such as servers, switches, routers, patch panels and A/V gear. The self-squaring bolted assembly is designed for floor mounting and accepts optional casters for mobility. Stationary load capacity reaches 1322 lbs.

Adjustable Depth Upgrade

The rack depth adjusts continuously from 22 inches to 40 inches, replacing fixed-depth cabinets that limit equipment choices. The jump is worth it when you mix shallow patch panels with deep servers or when future hardware may exceed a shorter cabinet. The 57 to 103.3 inch overall depth range lets you match the rack to the room instead of the room to the rack.

Build Integration

The open frame design gives unrestricted airflow around all installed devices and allows quick, tool-free access to cable connections on every side. Threaded 12-24 rails accept standard screws without cage nuts, speeding initial build and later changes. Bolt-down provisions secure the rack to the floor, while caster compatibility keeps relocation simple when the layout evolves.

Highlights

  • 25U capacity fits standard 19" rack equipment
  • Threaded 12-24 rails accept common server screws
  • Adjustable depth from 22 to 40 inches suits varied gear
  • Heavy-duty 16-gauge steel frame rated for 1322 lbs static load
  • Open-frame design enables unrestricted airflow and easy access

Specifications

BrandNavePoint
TypeRack Mount Cabinet
Rack Units25U
ColorBlack

Questions about this item

What floor clearance and bolt pattern does the 25U open-frame rack need for mounting?

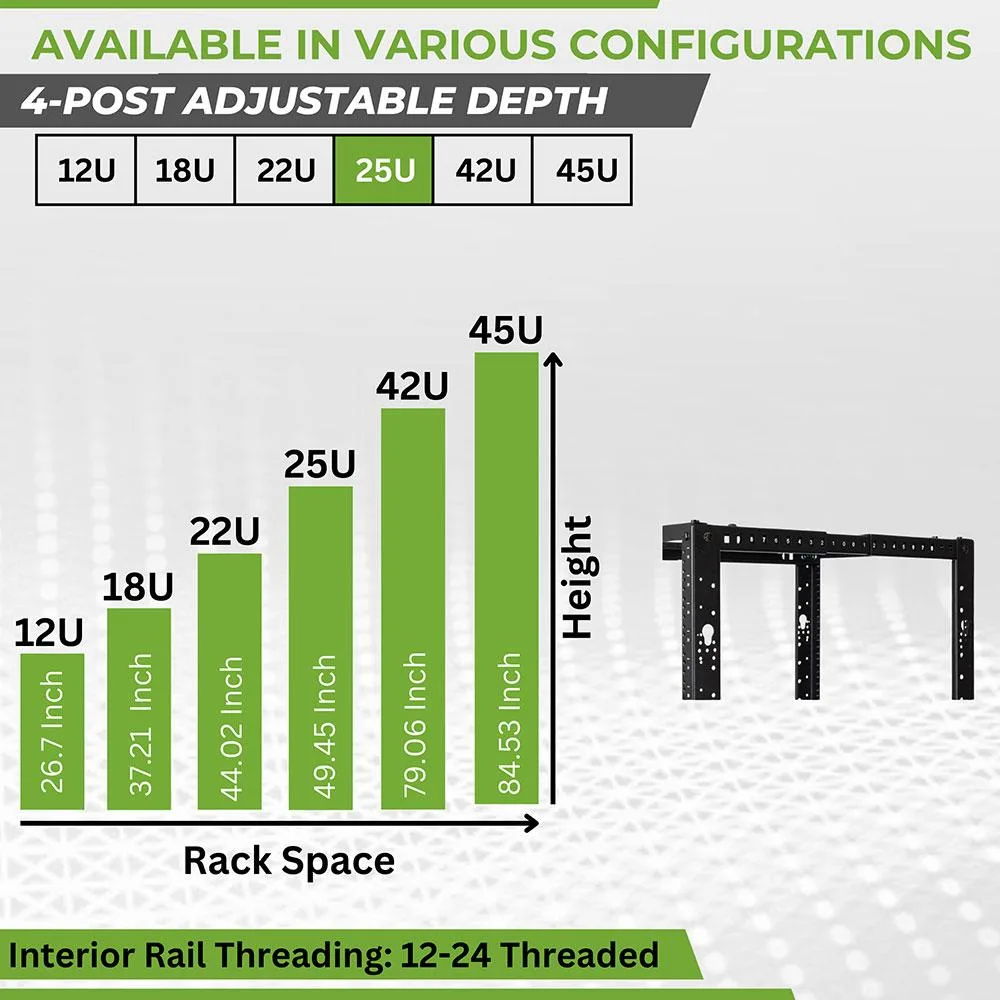

The rack measures 49.45 inches high, 52.5 inches wide and 57 to 103.3 inches deep overall. It includes bolt-down provisions for securing the frame to the floor.

Which step is most often missed when assembling the 4-post rack with 12-24 threaded rails?

The self-squaring frame must be squared and bolted to the floor before tightening the 12-24 rail screws, otherwise the posts can shift out of alignment.

When should the 12-24 threaded mounting rails be inspected or replaced on the 25U rack?

Check the 12-24 threads whenever equipment is added or removed; replace rails if threads strip or if the 1322 lb stationary load rating is exceeded.
