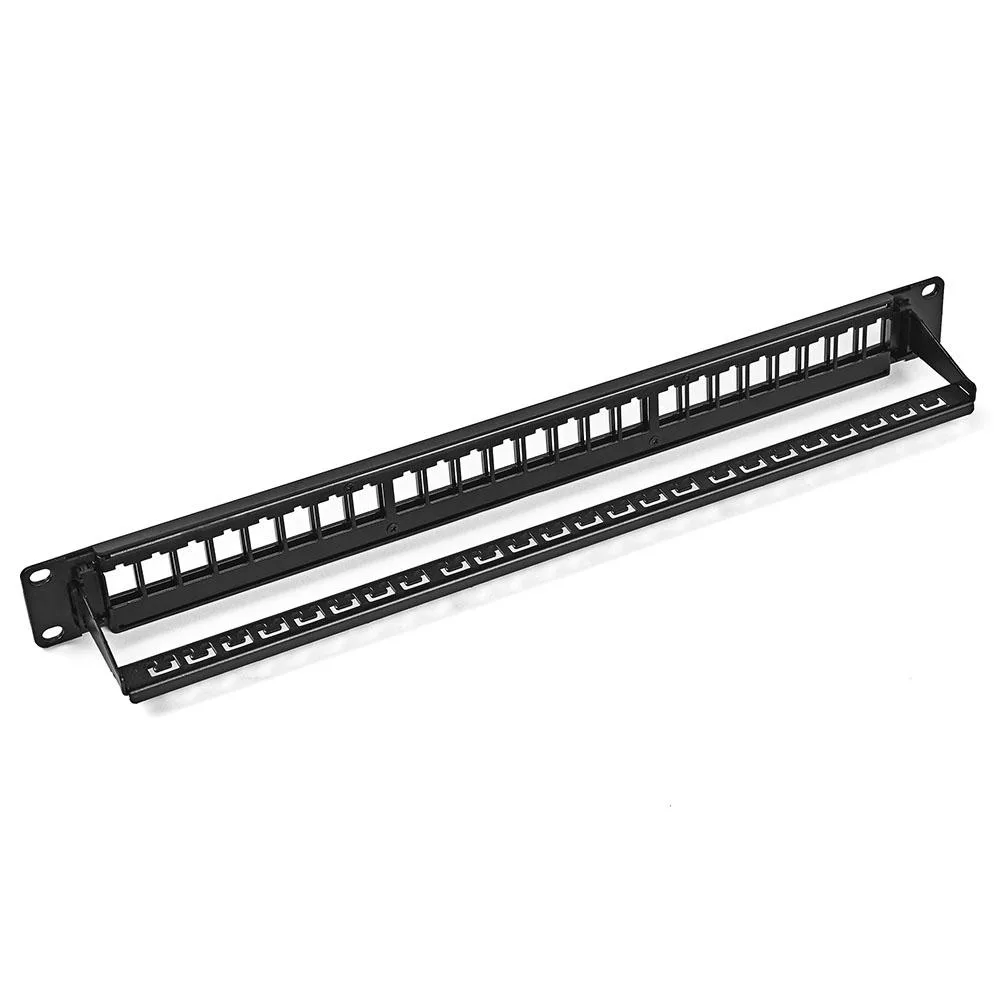

Black 1U 24-port CAT6 patch panel with keystone jacks and 110 punch-down terminations

NavePoint

NavePoint 24-Port CAT6 UTP Patch Panel 1U Keystones RJ45 Black

SKU CH-M6Y1-PV7CA

A 19-inch rack-mountable 24-port CAT6 UTP patch panel with color-coded TIA/EIA 568A and 568B wiring diagrams for quick identification

  • ColorBlack
  • TypeUTP
  • 19" rack-mount design fits standard server racks
  • 24 ports in 1U panel maximise density
  • Colour-coded 568A and 568B wiring simplifies installation
  • Bold port numbering with plastic holders speeds identification
  • 110 punch-down terminations ensure solid copper connections

24-Port CAT6 UTP Patch Panel

The NavePoint 24-port CAT6 UTP patch panel mounts in a standard 19-inch rack using only 1U of space. It provides 24 RJ45 keystone ports for unshielded twisted pair cable and includes bold port numbering with plastic label holders for quick identification. The panel supports both TIA/EIA 568A and 568B wiring schemes printed directly on the unit. It is built for structured cabling in server rooms, network closets and data centres.

Sustained-load behaviour

Solid copper terminations maintain reliable contact across all 24 ports during continuous network traffic. The CAT6-rated wiring pattern meets the category performance requirements for gigabit Ethernet links. Colour-coded diagrams for both 568A and 568B standards reduce mis-termination errors that can cause intermittent faults over time. The 1U steel chassis keeps ports aligned and prevents cable strain that degrades signal integrity.

Installation and common issues

The panel mounts directly to any EIA-standard 19-inch rack, bracket or enclosure using the included rack ears. Terminations are made with a 110-type punch-down tool following the printed colour codes. Common problems include reversing the 568A and 568B patterns on the same run, nicking conductors during punch-down, and leaving too much untwisted cable at the jack which degrades near-end crosstalk performance.

Highlights

  • 19" rack-mount design fits standard server racks
  • 24 ports in 1U panel maximise density
  • Colour-coded 568A and 568B wiring simplifies installation
  • Bold port numbering with plastic holders speeds identification
  • 110 punch-down terminations ensure solid copper connections

Specifications

BrandNavePoint
ColorBlack
TypeUTP

Questions about this item

How much heat or noise does the 24-port CAT6 patch panel add when mounted in a 19-inch rack all day?

The panel is completely passive with no fans or power supply, so it generates no heat and makes no audible noise during continuous operation.

What punch-down tool must I already own to terminate cables on the 110-style keystone jacks?

A standard 110-type punch-down tool is required to seat each solid-copper conductor into the colour-coded IDC contacts on the rear of the panel.

Will the TIA/EIA 568A and 568B wiring labels on this panel match the pin-out of my older CAT5e patch cables?

Yes, both 568A and 568B pin assignments are printed on the panel, so you can follow the same scheme used by existing CAT5e or CAT6 cables for backward-compatible terminations.
